9RH0 | pdb_00009rh0

Protein with novel 8.3 knotted fold - EIGHT fold (Extraordinarily Intricate Globular Helical Tangled fold).

PDB DOI: https://doi.org/10.2210/pdb9RH0/pdb

Classification: UNKNOWN FUNCTION
Organism(s): Lachnospiraceae bacterium
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-06-08 Released: 2026-10-21
Deposition Author(s): Mozajew, M., Kluza, A., Sikora, M., Sikorska, J.A., Sulkowska, J.I.
Funding Organization(s): Polish National Science Centre

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.92 Å
R-Value Free:
0.243 (Depositor), 0.243 (DCC)
R-Value Work:
0.205 (Depositor), 0.205 (DCC)
R-Value Observed:
0.207 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9RH0

This is version 1.0 of the entry. See complete history.

Literature

Unique features of EIGHT fold - proteins with the most complex 8.3 knotted topology

Mozajew, M., Sikora, M., Fortunka, M., Perlinska, A.P., Kluza, A., Niewieczerzal, S., da Silva, F.B., Lukaszewicz, M., Sikorska, J.A., Mikulska, L.J., Jackson, S.E., Sulkowska, J.I.

To be published.

Macromolecule Content

Total Structure Weight: 108.97 kDa
Atom Count: 6,738
Modeled Residue Count: 896
Deposited Residue Count: 944
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

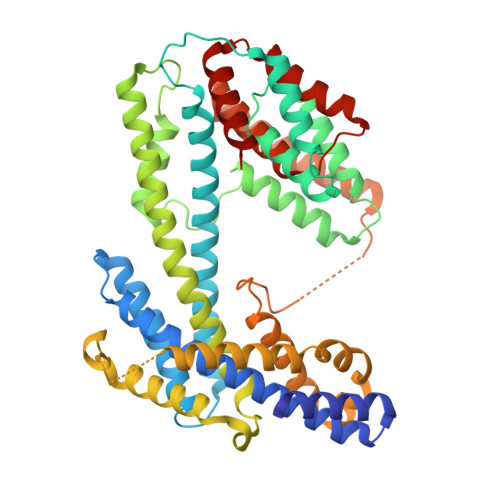

Protein with 8.3 knot	A, B	472	Lachnospiraceae bacterium	Mutation(s): 0 Gene Names: DCY81_00055
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain N [auth B] SDF format, chain M [auth B] SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain C [auth A] MOL2 format, chain N [auth B] MOL2 format, chain M [auth B] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain C [auth A] mmCIF format, chain N [auth B] mmCIF format, chain M [auth B] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain C [auth A]	C [auth A] E [auth A] F [auth A] G [auth A] H [auth A] C [auth A], E [auth A], F [auth A], G [auth A], H [auth A], K [auth B], L [auth B], M [auth B], N [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B]
ACT Query on ACT Download:Ideal Coordinates CCD File SDF format, chain O [auth B] MOL2 format, chain O [auth B] mmCIF format, chain O [auth B]	O [auth B]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain O [auth B] Interactions & Density Focus chain O [auth B]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain P [auth B] SDF format, chain J [auth A] MOL2 format, chain P [auth B] MOL2 format, chain J [auth A] mmCIF format, chain P [auth B] mmCIF format, chain J [auth A]	J [auth A], P [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain P [auth B] Interactions & Density Focus chain J [auth A] Focus chain P [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.92 Å
R-Value Free: 0.243 (Depositor), 0.243 (DCC)
R-Value Work: 0.205 (Depositor), 0.205 (DCC)
R-Value Observed: 0.207 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 70.13	α = 90
b = 94.34	β = 101.14
c = 120.85	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
MxCuBE	data collection
XDS	data reduction
XDS	data scaling
PHASER	phasing
PHENIX	model building
Coot	model building

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-21

Deposition Author(s):

Sulkowska, J.I.

Funding Organization	Location	Grant Number
Polish National Science Centre	Poland	2021/43/I/NZ1/03341

Revision History (Full details and data files)

Version 1.0: 2026-10-21
Type: Initial release
