9R2G | pdb_00009r2g

Cytochrome bd II oxidase qOR-2 type from Mycobacterium smegmatis


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9R2G

This is version 1.1 of the entry. See complete history

Literature

The Mycobacterium smegmatis bd -II terminal oxidase employs a carboxylate shift mechanism.

Kovalova, T.Janczak, M.Gamiz-Hernandez, A.P.Lundin, D.Sharma, S.Vilhjalmsdottir, J.Sjostrand, D.Kaila, V.R.I.Hogbom, M.Adelroth, P.

(2026) Proc Natl Acad Sci U S A 123: e2515348123-e2515348123

  • DOI: https://doi.org/10.1073/pnas.2515348123
  • Primary Citation Related Structures:
    9R2G

  • PubMed Abstract:

    Cytochrome bd is a terminal oxidase expressed under low oxygen conditions and central for the survival of many pathogens. Here, we characterize the cyt bd -II from Mycobacterium smegmatis, a member of a hitherto uncharacterized evolutionary group (qOR-2) of bd oxidases, by combining biochemical studies with cryo-electron microscopy (cryo-EM), and multiscale simulations. Overexpressing the appCB operon in its native host led to production of a highly active bd -II ( k obs = 30 e - s -1 ) that together with a high-resolution (2.8 Å) cryo-EM structure and multiscale simulations reveal unique proton pathways and oxygen channels responsible for its function. We propose that a pH-dependent molecular switch, involving coordination changes of heme d and surrounding bulky residues regulate substrate access into the active site. Taken together, our findings provide detailed mechanistic insight of qOR-2 type bd oxidases, and a basis for understanding the evolution of the superfamily.


  • Organizational Affiliation
    • Department of Biochemistry and Biophysics, Stockholm University, Stockholm 116 91, Sweden.

Macromolecule Content

  • Total Structure Weight: 95.18 kDa
  • Atom Count: 5,774
  • Modeled Residue Count: 707
  • Deposited Residue Count: 836
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

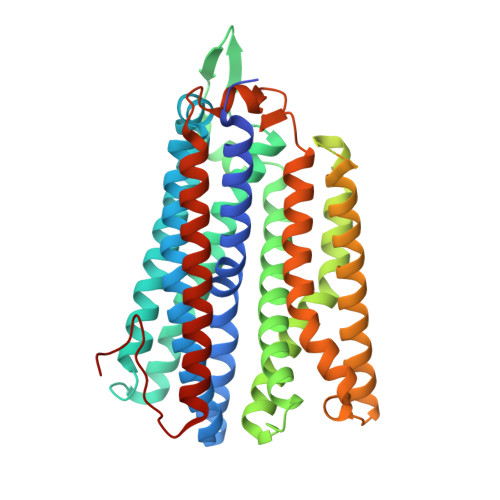

Cytochrome bd menaquinol oxidase subunit I462Mycolicibacterium smegmatisMutation(s): 0
Gene Names: ythABIN_B_00771
UniProt
Find proteins for A0A653F9S4 (Mycolicibacterium smegmatis)
Explore A0A653F9S4
Go to UniProtKB:  A0A653F9S4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A653F9S4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

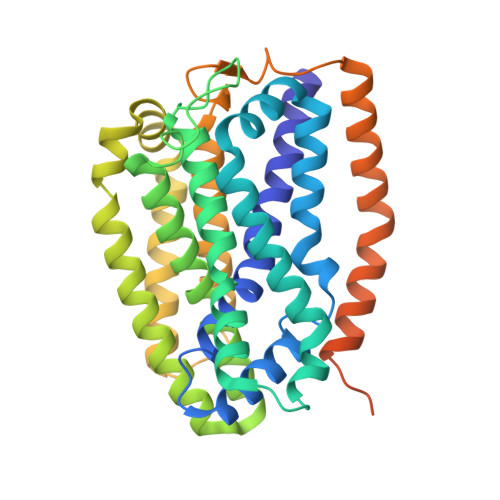

Cytochrome bd-I oxidase subunit IIB [auth D]374Mycolicibacterium smegmatisMutation(s): 0
Gene Names: D806_054940
UniProt
Find proteins for A0A2U9PXA2 (Mycolicibacterium smegmatis (strain MKD8))
Explore A0A2U9PXA2
Go to UniProtKB:  A0A2U9PXA2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2U9PXA2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CDL

Query on CDL



Download:Ideal Coordinates CCD File
C [auth A]CARDIOLIPIN
C81 H156 O17 P2
XVTUQDWPJJBEHJ-KZCWQMDCSA-L
MQ9

Query on MQ9



Download:Ideal Coordinates CCD File
G [auth D],
H [auth D],
I [auth D]
MENAQUINONE-9
C56 H80 O2
WCRXHNIUHQUASO-ABFXHILCSA-N
HDD
(Subject of Investigation/LOI)

Query on HDD



Download:Ideal Coordinates CCD File
D [auth A]CIS-HEME D HYDROXYCHLORIN GAMMA-SPIROLACTONE
C34 H32 Fe N4 O5
UMGOPAWIGKFTRK-QQDQPIDJSA-N
HEB

Query on HEB



Download:Ideal Coordinates CCD File
E [auth A],
F [auth A]
HEME B/C
C34 H34 Fe N4 O4
NEGHHAJBRZGUAY-RGGAHWMASA-L

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Knut and Alice Wallenberg FoundationSwedenKAW 2019.0043

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-04
    Type: Initial release
  • Version 1.1: 2026-03-18
    Changes: Data collection, Database references
