9QHS | pdb_00009qhs

phiLo family-A DNA polymerase with modified template

PDB DOI: https://doi.org/10.2210/pdb9QHS/pdb
EM Map EMD-52894: EMDB EMDataResource
NAKB: 9QHS

Classification: DNA BINDING PROTEIN
Organism(s): Thermus phage phiLo, DNA molecule
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2025-03-16 Released: 2026-03-25
Deposition Author(s): Missoury, S., Delarue, M.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9QHS

This is version 1.0 of the entry. See complete history.

Literature

phiLo family-A DNA polymerase with modified template

Missoury, S., Delarue, M.

To be published.

Macromolecule Content

Total Structure Weight: 151.39 kDa
Atom Count: 10,414
Modeled Residue Count: 1,186
Deposited Residue Count: 1,207
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

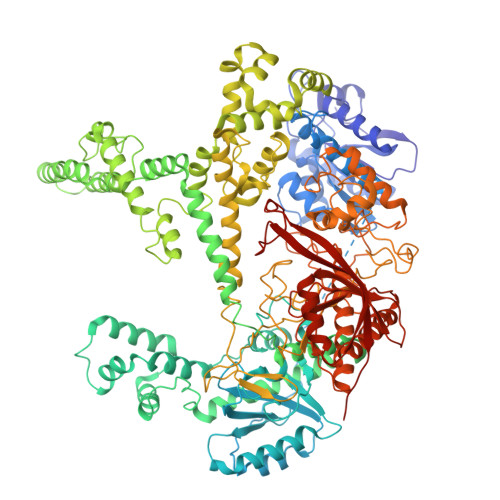

Putative DNA-directed DNA polymerase I	A	1,142	Thermus phage phiLo	Mutation(s): 0 Gene Names: phiLo_158

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 2

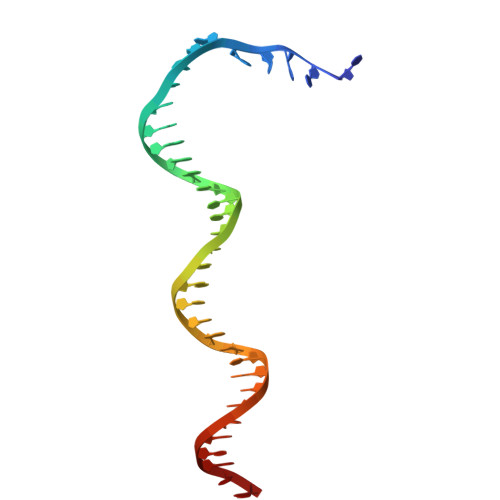

DNA template	B [auth T]	35	DNA molecule
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 3

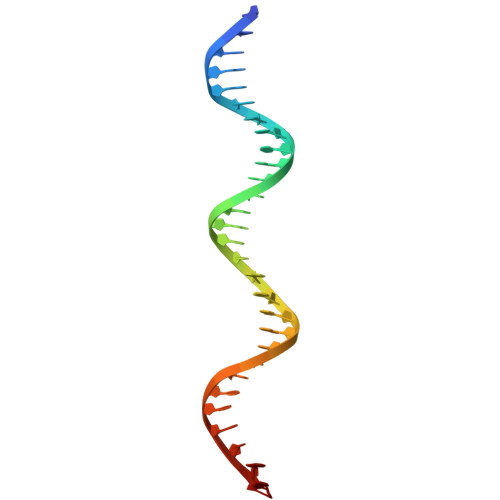

DNA primer	C [auth P]	30	DNA molecule
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
DCT (Subject of Investigation/LOI) Query on DCT Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	2',3'-DIDEOXYCYTIDINE 5'-TRIPHOSPHATE C₉ H₁₆ N₃ O₁₂ P₃ ARLKCWCREKRROD-POYBYMJQSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	2.0_5885
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-25

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded	France	--

Revision History (Full details and data files)

Version 1.0: 2026-03-25
Type: Initial release
