9Q71 | pdb_00009q71

Structure of the Measles Virus Fusion Glycoprotein Ectodomain in Postfusion Conformation Bound to Neutralizing Antibody H8

PDB DOI: https://doi.org/10.2210/pdb9Q71/pdb
EM Map EMD-72283: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): Measles morbillivirus, Mus musculus
Expression System: Drosophila melanogaster, Cricetulus griseus
Mutation(s): No

Deposited: 2025-08-22 Released: 2026-04-15
Deposition Author(s): Zyla, D., Niemeyer, G., Porotto, M., Saphire, E.O.
Funding Organization(s): Swiss National Science Foundation, National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental, in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of the Measles Virus Fusion Glycoprotein Ectodomain in Postfusion Conformation Bound to Neutralizing Antibody H8

Zyla, D., Niemeyer, G., Porotto, M., Saphire, E.O.

To be published.

Macromolecule Content

Total Structure Weight: 578.88 kDa
Atom Count: 14,828
Modeled Residue Count: 1,919
Deposited Residue Count: 5,328
Unique protein chains: 3

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

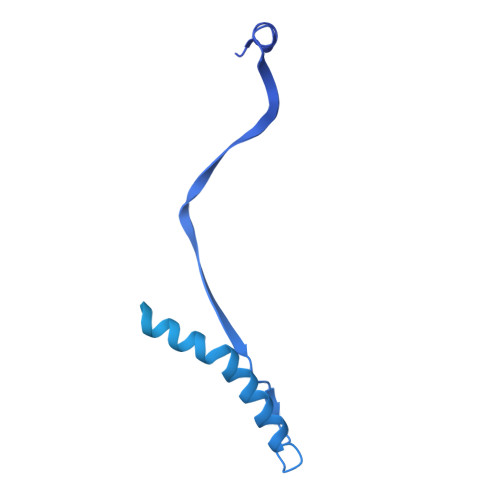

Fusion glycoprotein F0	A, B, C, D, E A, B, C, D, E, F	532	Measles morbillivirus	Mutation(s): 0
UniProt
Find proteins for Q786F3 (Measles virus (strain Ichinose-B95a)) Explore Q786F3 Go to UniProtKB: Q786F3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q786F3
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain A Focus chain C Focus chain E
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

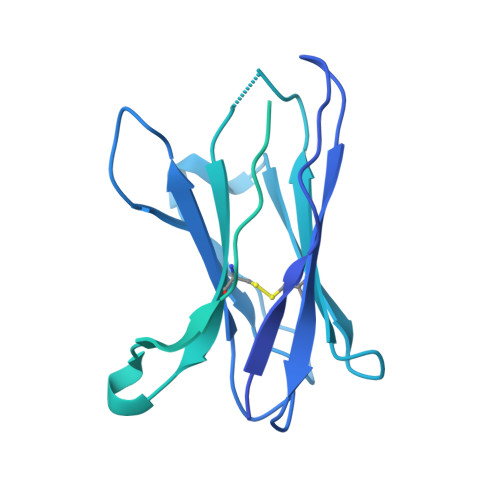

mAb H8 heavy chain	G, I, K	476	Mus musculus	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

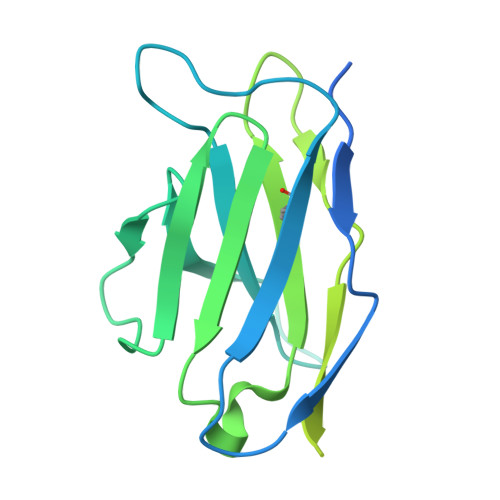

mAb H8 light chain	H, J, L	236	Mus musculus	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain U [auth E] SDF format, chain T [auth E] SDF format, chain S [auth E] SDF format, chain R [auth C] SDF format, chain Q [auth C] SDF format, chain P [auth C] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] MOL2 format, chain U [auth E] MOL2 format, chain T [auth E] MOL2 format, chain S [auth E] MOL2 format, chain R [auth C] MOL2 format, chain Q [auth C] MOL2 format, chain P [auth C] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] mmCIF format, chain U [auth E] mmCIF format, chain T [auth E] mmCIF format, chain S [auth E] mmCIF format, chain R [auth C] mmCIF format, chain Q [auth C] mmCIF format, chain P [auth C] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A]	M [auth A] N [auth A] O [auth A] P [auth C] Q [auth C] M [auth A], N [auth A], O [auth A], P [auth C], Q [auth C], R [auth C], S [auth E], T [auth E], U [auth E]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth C] Focus chain Q [auth C] Focus chain R [auth C] Focus chain S [auth E] Focus chain T [auth E] Focus chain U [auth E] Interactions & Density Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth C] Focus chain Q [auth C] Focus chain R [auth C] Focus chain S [auth E] Focus chain T [auth E] Focus chain U [auth E]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.6
MODEL REFINEMENT	PHENIX	2.0_5793

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-15

Deposition Author(s):

Funding Organization	Location	Grant Number
Swiss National Science Foundation	Switzerland	P2EZP3_195680
Swiss National Science Foundation	Switzerland	P500PB_210992
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	NS105699
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	NS091263
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI176833
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	1R56AI183536-01A1
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	5R21AI180456-02
