9Q44 | pdb_00009q44

Pseudomonas aeruginosa 50S ribosome bound to RsfS (L1 stalk in 'out' conformation and missing uL1 and tRNA)

PDB DOI: https://doi.org/10.2210/pdb9Q44/pdb
EM Map EMD-72220: EMDB EMDataResource

Classification: RIBOSOME
Organism(s): Pseudomonas aeruginosa PAO1
Mutation(s): No

Deposited: 2025-08-19 Released: 2026-08-26
Deposition Author(s): Findlay, J.L., Kanik, M., Gauvin, C.C., Franklin, M.J., Lawrence, C.M.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Science Foundation (NSF, United States), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.29 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental, in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

RsfS Prevents 70S Formation During Active Cell Growth in P. aeruginosa

Findlay, J.L., Kanik, M., Franklin, M.J., Lawrence, C.M.

To be published.

Macromolecule Content

Total Structure Weight: 1,399.63 kDa
Atom Count: 96,632
Modeled Residue Count: 6,585
Deposited Residue Count: 6,813
Unique protein chains: 31
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL2	C [auth D]	273	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWD8 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWD8 Go to UniProtKB: Q9HWD8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWD8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

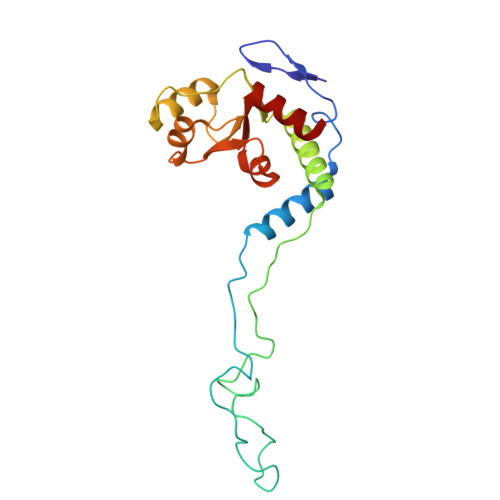

Large ribosomal subunit protein uL3	D [auth E]	211	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWD5 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWD5 Go to UniProtKB: Q9HWD5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWD5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

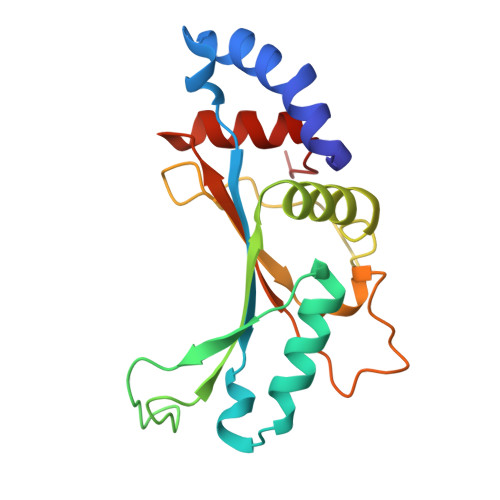

Large ribosomal subunit protein uL4	E [auth F]	200	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWD6 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWD6 Go to UniProtKB: Q9HWD6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWD6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL5	F [auth G]	179	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE7 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE7 Go to UniProtKB: Q9HWE7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

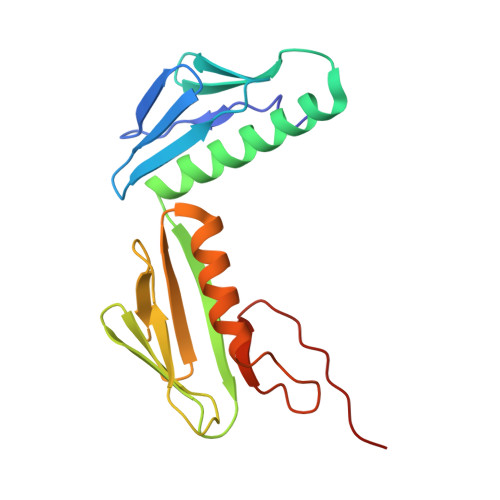

Large ribosomal subunit protein uL6	G [auth H]	177	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWF0 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWF0 Go to UniProtKB: Q9HWF0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWF0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

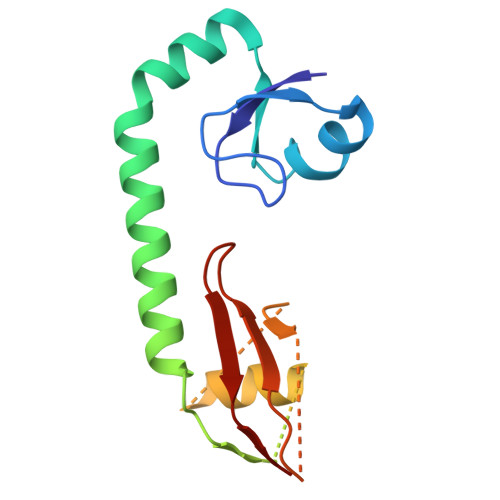

Large ribosomal subunit protein bL9	H [auth I]	148	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HUN2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HUN2 Go to UniProtKB: Q9HUN2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HUN2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

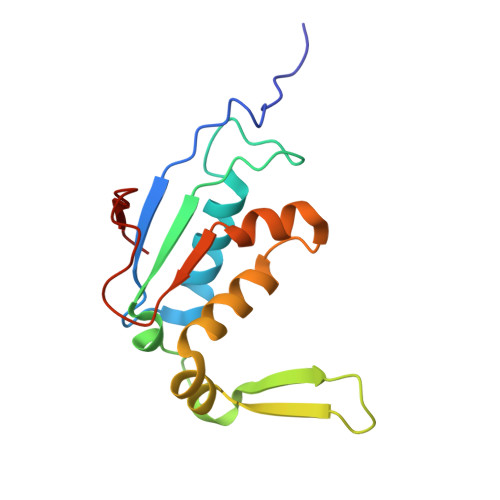

Large ribosomal subunit protein uL13	I [auth L]	142	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HVY2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HVY2 Go to UniProtKB: Q9HVY2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HVY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

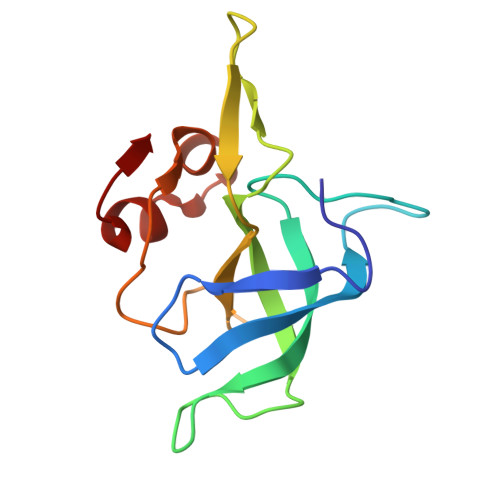

Large ribosomal subunit protein uL14	J [auth M]	122	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE5 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE5 Go to UniProtKB: Q9HWE5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL15	K [auth N]	144	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWF4 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWF4 Go to UniProtKB: Q9HWF4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWF4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

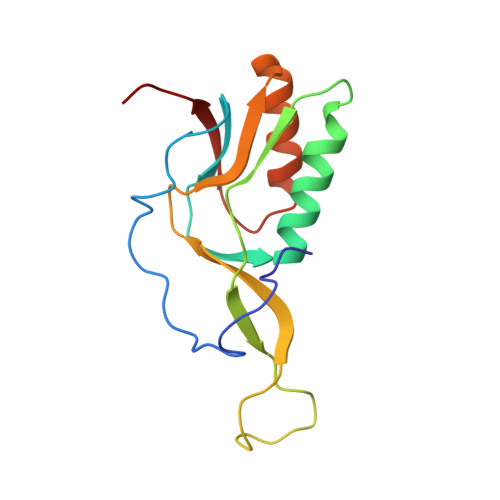

Large ribosomal subunit protein uL16	L [auth O]	137	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE2 Go to UniProtKB: Q9HWE2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

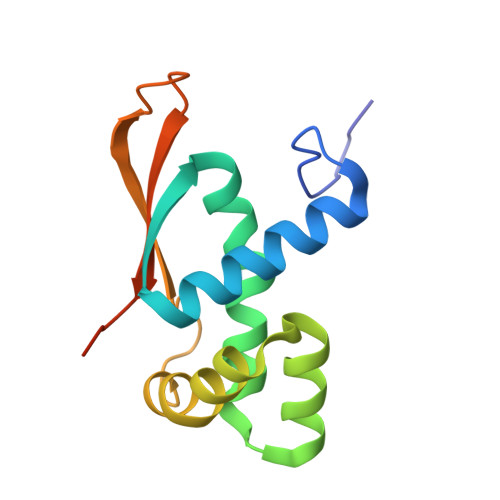

Large ribosomal subunit protein bL17	M [auth P]	129	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for O52761 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore O52761 Go to UniProtKB: O52761
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O52761
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL18	N [auth Q]	116	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWF1 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWF1 Go to UniProtKB: Q9HWF1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWF1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL19	O [auth R]	116	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HXQ2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HXQ2 Go to UniProtKB: Q9HXQ2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HXQ2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

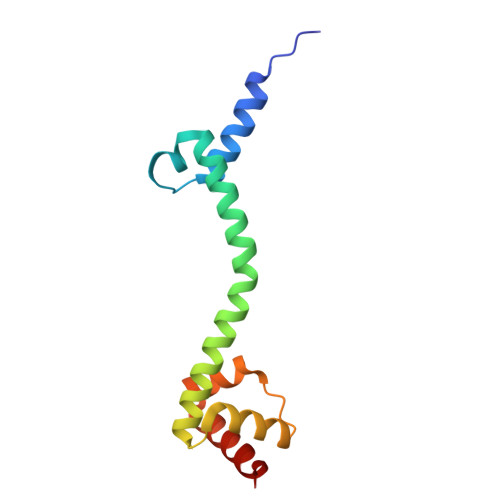

Large ribosomal subunit protein bL20	P [auth S]	118	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9I0A2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9I0A2 Go to UniProtKB: Q9I0A2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9I0A2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

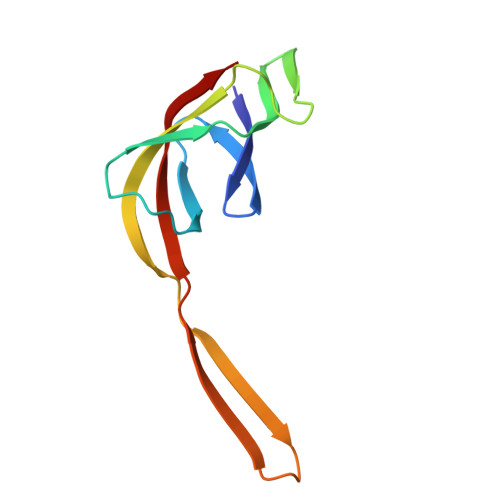

Large ribosomal subunit protein bL21	Q [auth T]	103	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HVL6 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HVL6 Go to UniProtKB: Q9HVL6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HVL6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

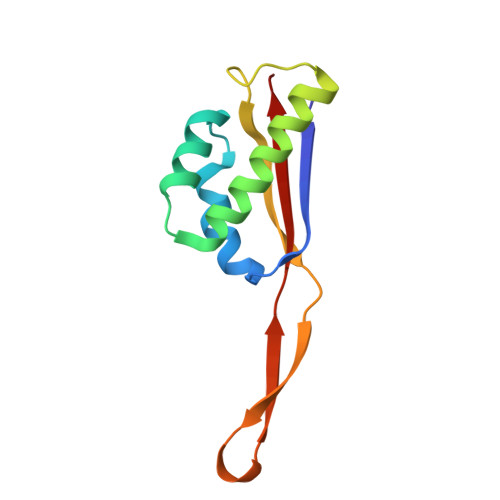

Large ribosomal subunit protein uL22	R [auth U]	110	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE0 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE0 Go to UniProtKB: Q9HWE0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

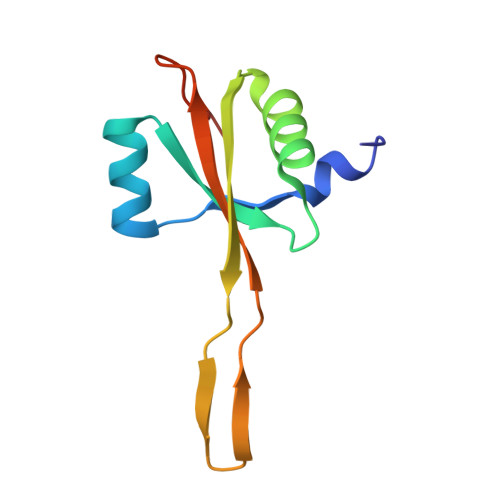

Large ribosomal subunit protein uL23	S [auth V]	99	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWD7 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWD7 Go to UniProtKB: Q9HWD7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWD7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL24	T [auth W]	104	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE6 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE6 Go to UniProtKB: Q9HWE6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

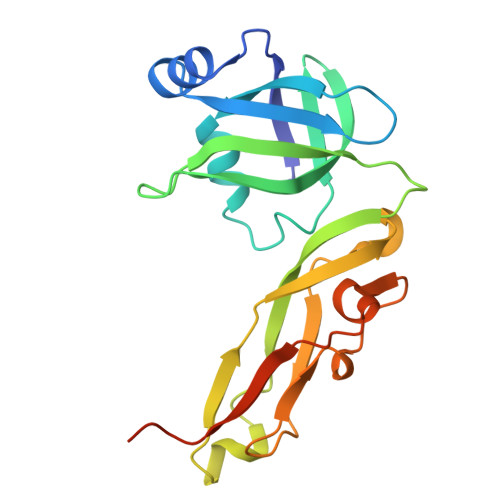

Large ribosomal subunit protein bL25	U [auth X]	204	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HVC4 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HVC4 Go to UniProtKB: Q9HVC4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HVC4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL27	V [auth Y]	85	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HVL7 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HVL7 Go to UniProtKB: Q9HVL7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HVL7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image

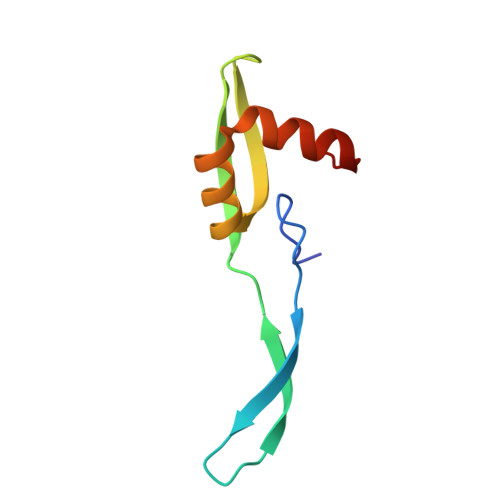

Large ribosomal subunit protein bL28	W [auth Z]	78	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HTN8 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HTN8 Go to UniProtKB: Q9HTN8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HTN8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image

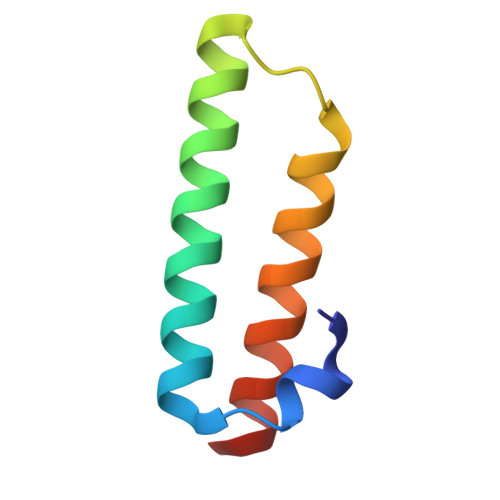

Large ribosomal subunit protein uL29	X [auth 1]	63	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWE3 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWE3 Go to UniProtKB: Q9HWE3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWE3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image

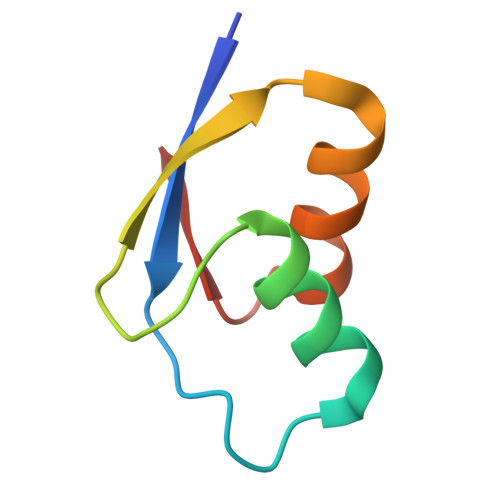

Large ribosomal subunit protein uL30	Y [auth 2]	58	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWF3 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWF3 Go to UniProtKB: Q9HWF3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWF3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image

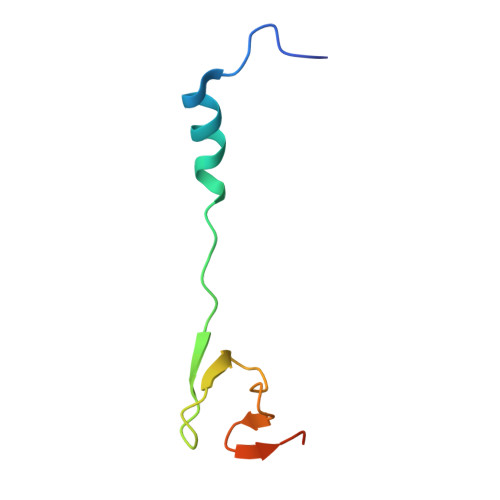

Large ribosomal subunit protein bL32	Z [auth 4]	60	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HZN4 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HZN4 Go to UniProtKB: Q9HZN4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HZN4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL33	AA [auth 5]	51	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HTN9 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HTN9 Go to UniProtKB: Q9HTN9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HTN9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image

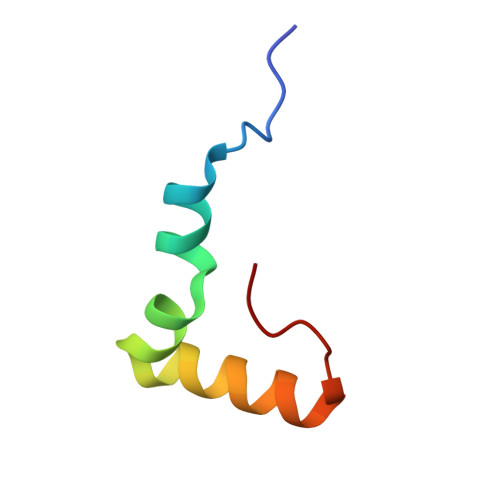

Large ribosomal subunit protein bL34	BA [auth 6]	44	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for P29436 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore P29436 Go to UniProtKB: P29436
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P29436
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image

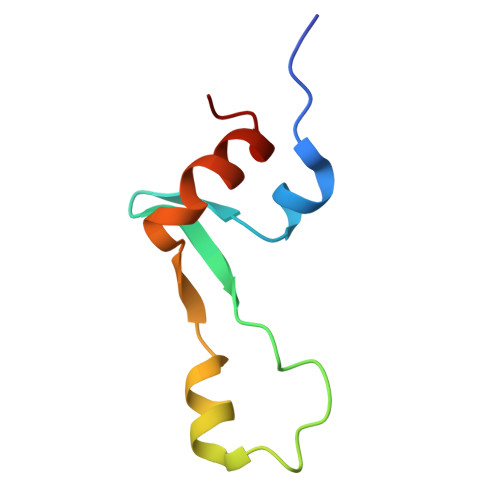

Large ribosomal subunit protein bL35	CA [auth 7]	64	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9I0A1 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9I0A1 Go to UniProtKB: Q9I0A1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9I0A1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image

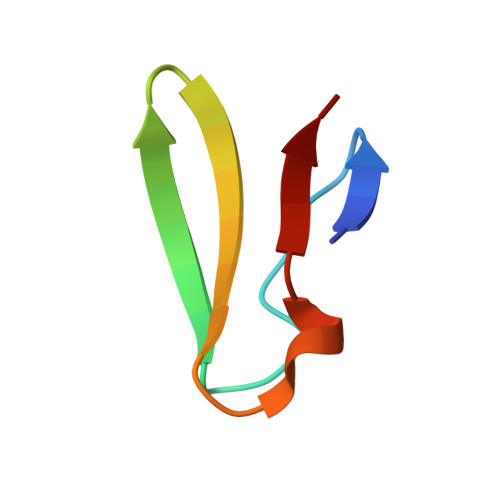

Large ribosomal subunit protein bL36A	DA [auth 8]	38	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWF6 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWF6 Go to UniProtKB: Q9HWF6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWF6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image

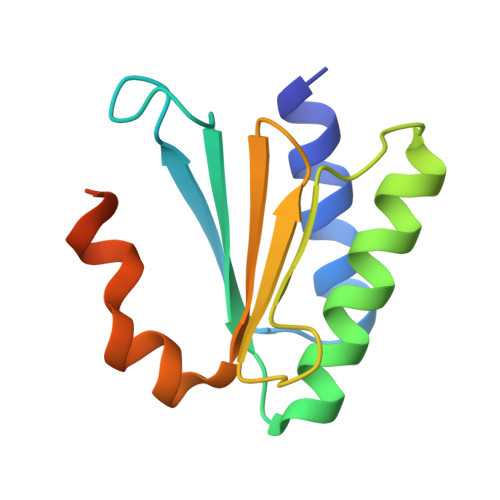

Ribosomal silencing factor RsfS	EA [auth 9]	118	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HX22 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HX22 Go to UniProtKB: Q9HX22
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HX22
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image

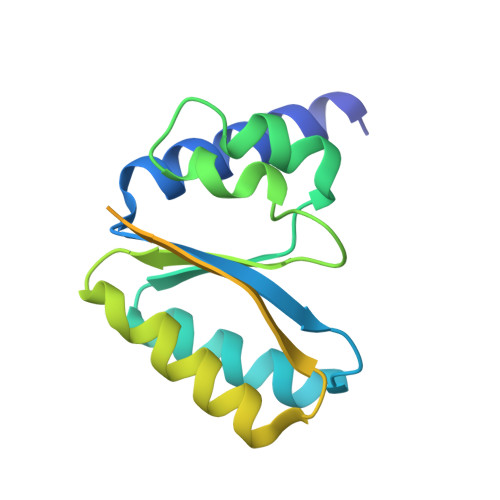

Large ribosomal subunit protein uL10	FA [auth J]	166	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWC7 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWC7 Go to UniProtKB: Q9HWC7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWC7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image

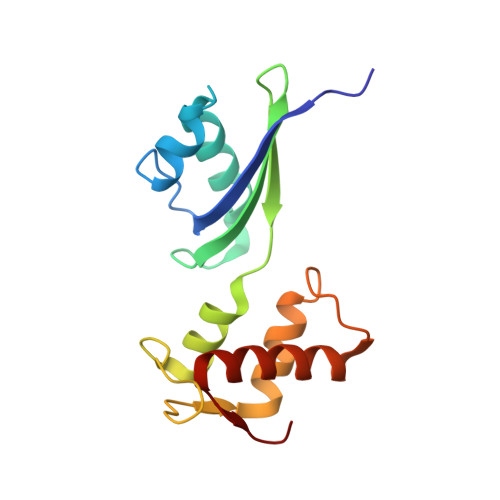

Large ribosomal subunit protein uL10	GA [auth K]	143	Pseudomonas aeruginosa PAO1	Mutation(s): 0
UniProt
Find proteins for Q9HWC5 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HWC5 Go to UniProtKB: Q9HWC5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HWC5
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 1

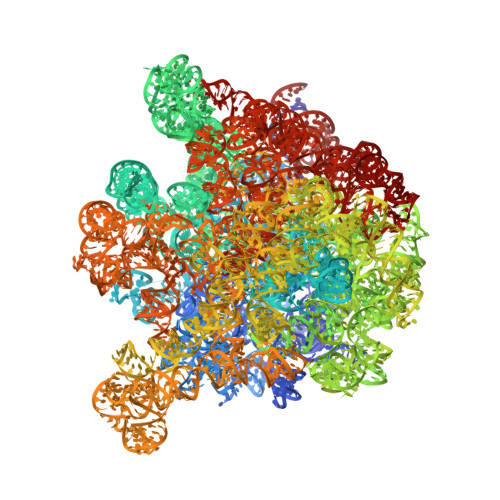

23S rRNA	A	2,892	Pseudomonas aeruginosa PAO1
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 2

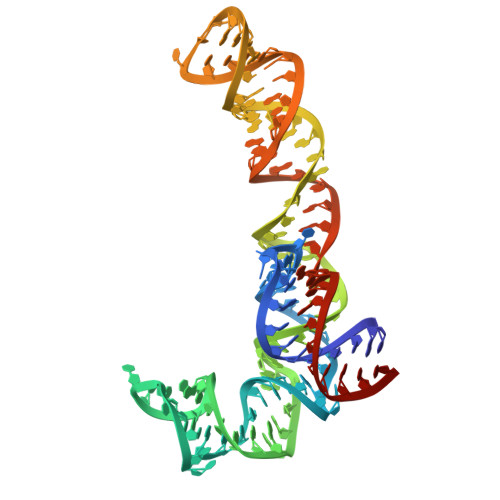

5S rRNA	B	121	Pseudomonas aeruginosa PAO1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain BI [auth 8] MOL2 format, chain BI [auth 8] mmCIF format, chain BI [auth 8]	BI [auth 8]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain BI [auth 8] Interactions & Density Focus chain BI [auth 8]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain AB [auth A] SDF format, chain AC [auth A] SDF format, chain AD [auth A] SDF format, chain AE [auth A] SDF format, chain AG [auth A] SDF format, chain AH [auth A] SDF format, chain AI [auth 4] SDF format, chain BB [auth A] SDF format, chain BC [auth A] SDF format, chain BE [auth A] SDF format, chain BF [auth A] SDF format, chain BG [auth A] SDF format, chain BH [auth A] SDF format, chain CB [auth A] SDF format, chain CD [auth A] SDF format, chain CE [auth A] SDF format, chain CF [auth A] SDF format, chain CG [auth A] SDF format, chain CH [auth A] SDF format, chain DB [auth A] SDF format, chain DC [auth A] SDF format, chain DD [auth A] SDF format, chain DE [auth A] SDF format, chain DF [auth A] SDF format, chain DG [auth A] SDF format, chain DH [auth A] SDF format, chain EC [auth A] SDF format, chain ED [auth A] SDF format, chain EE [auth A] SDF format, chain EF [auth A] SDF format, chain EG [auth A] SDF format, chain EH [auth A] SDF format, chain FB [auth A] SDF format, chain FC [auth A] SDF format, chain FD [auth A] SDF format, chain FE [auth A] SDF format, chain FF [auth A] SDF format, chain FG [auth A] SDF format, chain FH [auth A] SDF format, chain GB [auth A] SDF format, chain GC [auth A] SDF format, chain GD [auth A] SDF format, chain GE [auth A] SDF format, chain GF [auth A] SDF format, chain GG [auth A] SDF format, chain GH [auth A] SDF format, chain HA [auth A] SDF format, chain HB [auth A] SDF format, chain HC [auth A] SDF format, chain HD [auth A] SDF format, chain HE [auth A] SDF format, chain HF [auth A] SDF format, chain HG [auth A] SDF format, chain HH [auth A] SDF format, chain IA [auth A] SDF format, chain IB [auth A] SDF format, chain IC [auth A] SDF format, chain ID [auth A] SDF format, chain IE [auth A] SDF format, chain IF [auth A] SDF format, chain IG [auth A] SDF format, chain IH [auth A] SDF format, chain JA [auth A] SDF format, chain JB [auth A] SDF format, chain JC [auth A] SDF format, chain JD [auth A] SDF format, chain JE [auth A] SDF format, chain JG [auth A] SDF format, chain JH [auth A] SDF format, chain KB [auth A] SDF format, chain KC [auth A] SDF format, chain KE [auth A] SDF format, chain KF [auth A] SDF format, chain KG [auth A] SDF format, chain LA [auth A] SDF format, chain LB [auth A] SDF format, chain LC [auth A] SDF format, chain LD [auth A] SDF format, chain LE [auth A] SDF format, chain LG [auth A] SDF format, chain LH [auth A] SDF format, chain MA [auth A] SDF format, chain MB [auth A] SDF format, chain MC [auth A] SDF format, chain MD [auth A] SDF format, chain ME [auth A] SDF format, chain MF [auth A] SDF format, chain MH [auth A] SDF format, chain NA [auth A] SDF format, chain NC [auth A] SDF format, chain ND [auth A] SDF format, chain NE [auth A] SDF format, chain NF [auth A] SDF format, chain NG [auth A] SDF format, chain NH [auth A] SDF format, chain OA [auth A] SDF format, chain OB [auth A] SDF format, chain OC [auth A] SDF format, chain OD [auth A] SDF format, chain OE [auth A] SDF format, chain OF [auth A] SDF format, chain OG [auth A] SDF format, chain OH [auth A] SDF format, chain PA [auth A] SDF format, chain PB [auth A] SDF format, chain PC [auth A] SDF format, chain PD [auth A] SDF format, chain PE [auth A] SDF format, chain PF [auth A] SDF format, chain PG [auth A] SDF format, chain PH [auth A] SDF format, chain QA [auth A] SDF format, chain QC [auth A] SDF format, chain QD [auth A] SDF format, chain QE [auth A] SDF format, chain QF [auth A] SDF format, chain QG [auth A] SDF format, chain QH [auth A] SDF format, chain RA [auth A] SDF format, chain RB [auth A] SDF format, chain RC [auth A] SDF format, chain RD [auth A] SDF format, chain RE [auth A] SDF format, chain RF [auth A] SDF format, chain RG [auth A] SDF format, chain RH [auth A] SDF format, chain SA [auth A] SDF format, chain SB [auth A] SDF format, chain SC [auth A] SDF format, chain SD [auth A] SDF format, chain SE [auth A] SDF format, chain SF [auth A] SDF format, chain SG [auth A] SDF format, chain SH [auth A] SDF format, chain TA [auth A] SDF format, chain TB [auth A] SDF format, chain TC [auth A] SDF format, chain TD [auth A] SDF format, chain TE [auth A] SDF format, chain TF [auth A] SDF format, chain TG [auth A] SDF format, chain TH [auth A] SDF format, chain UA [auth A] SDF format, chain UB [auth A] SDF format, chain UC [auth A] SDF format, chain UD [auth A] SDF format, chain UE [auth A] SDF format, chain UF [auth A] SDF format, chain UG [auth A] SDF format, chain UH [auth B] SDF format, chain VA [auth A] SDF format, chain VB [auth A] SDF format, chain VC [auth A] SDF format, chain VD [auth A] SDF format, chain VE [auth A] SDF format, chain VF [auth A] SDF format, chain VG [auth A] SDF format, chain VH [auth B] SDF format, chain WA [auth A] SDF format, chain WB [auth A] SDF format, chain WC [auth A] SDF format, chain WD [auth A] SDF format, chain WE [auth A] SDF format, chain WF [auth A] SDF format, chain WH [auth B] SDF format, chain XA [auth A] SDF format, chain XB [auth A] SDF format, chain XC [auth A] SDF format, chain XD [auth A] SDF format, chain XE [auth A] SDF format, chain XF [auth A] SDF format, chain XG [auth A] SDF format, chain XH [auth D] SDF format, chain YA [auth A] SDF format, chain YB [auth A] SDF format, chain YC [auth A] SDF format, chain YD [auth A] SDF format, chain YE [auth A] SDF format, chain YF [auth A] SDF format, chain YG [auth A] SDF format, chain YH [auth E] SDF format, chain ZA [auth A] SDF format, chain ZB [auth A] SDF format, chain ZC [auth A] SDF format, chain ZD [auth A] SDF format, chain ZE [auth A] SDF format, chain ZF [auth A] SDF format, chain ZG [auth A] SDF format, chain ZH [auth S] SDF format, chain WG [auth A] SDF format, chain QB [auth A] SDF format, chain NB [auth A] SDF format, chain MG [auth A] SDF format, chain LF [auth A] SDF format, chain KH [auth A] SDF format, chain KD [auth A] SDF format, chain KA [auth A] SDF format, chain JF [auth A] SDF format, chain EB [auth A] SDF format, chain CC [auth A] SDF format, chain BD [auth A] SDF format, chain AF [auth A] MOL2 format, chain AB [auth A] MOL2 format, chain AC [auth A] MOL2 format, chain AD [auth A] MOL2 format, chain AE [auth A] MOL2 format, chain AG [auth A] MOL2 format, chain AH [auth A] MOL2 format, chain AI [auth 4] MOL2 format, chain BB [auth A] MOL2 format, chain BC [auth A] MOL2 format, chain BE [auth A] MOL2 format, chain BF [auth A] MOL2 format, chain BG [auth A] MOL2 format, chain BH [auth A] MOL2 format, chain CB [auth A] MOL2 format, chain CD [auth A] MOL2 format, chain CE [auth A] MOL2 format, chain CF [auth A] MOL2 format, chain CG [auth A] MOL2 format, chain CH [auth A] MOL2 format, chain DB [auth A] MOL2 format, chain DC [auth A] MOL2 format, chain DD [auth A] MOL2 format, chain DE [auth A] MOL2 format, chain DF [auth A] MOL2 format, chain DG [auth A] MOL2 format, chain DH [auth A] MOL2 format, chain EC [auth A] MOL2 format, chain ED [auth A] MOL2 format, chain EE [auth A] MOL2 format, chain EF [auth A] MOL2 format, chain EG [auth A] MOL2 format, chain EH [auth A] MOL2 format, chain FB [auth A] MOL2 format, chain FC [auth A] MOL2 format, chain FD [auth A] MOL2 format, chain FE [auth A] MOL2 format, chain FF [auth A] MOL2 format, chain FG [auth A] MOL2 format, chain FH [auth A] MOL2 format, chain GB [auth A] MOL2 format, chain GC [auth A] MOL2 format, chain GD [auth A] MOL2 format, chain GE [auth A] MOL2 format, chain GF [auth A] MOL2 format, chain GG [auth A] MOL2 format, chain GH [auth A] MOL2 format, chain HA [auth A] MOL2 format, chain HB [auth A] MOL2 format, chain HC [auth A] MOL2 format, chain HD [auth A] MOL2 format, chain HE [auth A] MOL2 format, chain HF [auth A] MOL2 format, chain HG [auth A] MOL2 format, chain HH [auth A] MOL2 format, chain IA [auth A] MOL2 format, chain IB [auth A] MOL2 format, chain IC [auth A] MOL2 format, chain ID [auth A] MOL2 format, chain IE [auth A] MOL2 format, chain IF [auth A] MOL2 format, chain IG [auth A] MOL2 format, chain IH [auth A] MOL2 format, chain JA [auth A] MOL2 format, chain JB [auth A] MOL2 format, chain JC [auth A] MOL2 format, chain JD [auth A] MOL2 format, chain JE [auth A] MOL2 format, chain JG [auth A] MOL2 format, chain JH [auth A] MOL2 format, chain KB [auth A] MOL2 format, chain KC [auth A] MOL2 format, chain KE [auth A] MOL2 format, chain KF [auth A] MOL2 format, chain KG [auth A] MOL2 format, chain LA [auth A] MOL2 format, chain LB [auth A] MOL2 format, chain LC [auth A] MOL2 format, chain LD [auth A] MOL2 format, chain LE [auth A] MOL2 format, chain LG [auth A] MOL2 format, chain LH [auth A] MOL2 format, chain MA [auth A] MOL2 format, chain MB [auth A] MOL2 format, chain MC [auth A] MOL2 format, chain MD [auth A] MOL2 format, chain ME [auth A] MOL2 format, chain MF [auth A] MOL2 format, chain MH [auth A] MOL2 format, chain NA [auth A] MOL2 format, chain NC [auth A] MOL2 format, chain ND [auth A] MOL2 format, chain NE [auth A] MOL2 format, chain NF [auth A] MOL2 format, chain NG [auth A] MOL2 format, chain NH [auth A] MOL2 format, chain OA [auth A] MOL2 format, chain OB [auth A] MOL2 format, chain OC [auth A] MOL2 format, chain OD [auth A] MOL2 format, chain OE [auth A] MOL2 format, chain OF [auth A] MOL2 format, chain OG [auth A] MOL2 format, chain OH [auth A] MOL2 format, chain PA [auth A] MOL2 format, chain PB [auth A] MOL2 format, chain PC [auth A] MOL2 format, chain PD [auth A] MOL2 format, chain PE [auth A] MOL2 format, chain PF [auth A] MOL2 format, chain PG [auth A] MOL2 format, chain PH [auth A] MOL2 format, chain QA [auth A] MOL2 format, chain QC [auth A] MOL2 format, chain QD [auth A] MOL2 format, chain QE [auth A] MOL2 format, chain QF [auth A] MOL2 format, chain QG [auth A] MOL2 format, chain QH [auth A] MOL2 format, chain RA [auth A] MOL2 format, chain RB [auth A] MOL2 format, chain RC [auth A] MOL2 format, chain RD [auth A] MOL2 format, chain RE [auth A] MOL2 format, chain RF [auth A] MOL2 format, chain RG [auth A] MOL2 format, chain RH [auth A] MOL2 format, chain SA [auth A] MOL2 format, chain SB [auth A] MOL2 format, chain SC [auth A] MOL2 format, chain SD [auth A] MOL2 format, chain SE [auth A] MOL2 format, chain SF [auth A] MOL2 format, chain SG [auth A] MOL2 format, chain SH [auth A] MOL2 format, chain TA [auth A] MOL2 format, chain TB [auth A] MOL2 format, chain TC [auth A] MOL2 format, chain TD [auth A] MOL2 format, chain TE [auth A] MOL2 format, chain TF [auth A] MOL2 format, chain TG [auth A] MOL2 format, chain TH [auth A] MOL2 format, chain UA [auth A] MOL2 format, chain UB [auth A] MOL2 format, chain UC [auth A] MOL2 format, chain UD [auth A] MOL2 format, chain UE [auth A] MOL2 format, chain UF [auth A] MOL2 format, chain UG [auth A] MOL2 format, chain UH [auth B] MOL2 format, chain VA [auth A] MOL2 format, chain VB [auth A] MOL2 format, chain VC [auth A] MOL2 format, chain VD [auth A] MOL2 format, chain VE [auth A] MOL2 format, chain VF [auth A] MOL2 format, chain VG [auth A] MOL2 format, chain VH [auth B] MOL2 format, chain WA [auth A] MOL2 format, chain WB [auth A] MOL2 format, chain WC [auth A] MOL2 format, chain WD [auth A] MOL2 format, chain WE [auth A] MOL2 format, chain WF [auth A] MOL2 format, chain WH [auth B] MOL2 format, chain XA [auth A] MOL2 format, chain XB [auth A] MOL2 format, chain XC [auth A] MOL2 format, chain XD [auth A] MOL2 format, chain XE [auth A] MOL2 format, chain XF [auth A] MOL2 format, chain XG [auth A] MOL2 format, chain XH [auth D] MOL2 format, chain YA [auth A] MOL2 format, chain YB [auth A] MOL2 format, chain YC [auth A] MOL2 format, chain YD [auth A] MOL2 format, chain YE [auth A] MOL2 format, chain YF [auth A] MOL2 format, chain YG [auth A] MOL2 format, chain YH [auth E] MOL2 format, chain ZA [auth A] MOL2 format, chain ZB [auth A] MOL2 format, chain ZC [auth A] MOL2 format, chain ZD [auth A] MOL2 format, chain ZE [auth A] MOL2 format, chain ZF [auth A] MOL2 format, chain ZG [auth A] MOL2 format, chain ZH [auth S] MOL2 format, chain WG [auth A] MOL2 format, chain QB [auth A] MOL2 format, chain NB [auth A] MOL2 format, chain MG [auth A] MOL2 format, chain LF [auth A] MOL2 format, chain KH [auth A] MOL2 format, chain KD [auth A] MOL2 format, chain KA [auth A] MOL2 format, chain JF [auth A] MOL2 format, chain EB [auth A] MOL2 format, chain CC [auth A] MOL2 format, chain BD [auth A] MOL2 format, chain AF [auth A] mmCIF format, chain AB [auth A] mmCIF format, chain AC [auth A] mmCIF format, chain AD [auth A] mmCIF format, chain AE [auth A] mmCIF format, chain AG [auth A] mmCIF format, chain AH [auth A] mmCIF format, chain AI [auth 4] mmCIF format, chain BB [auth A] mmCIF format, chain BC [auth A] mmCIF format, chain BE [auth A] mmCIF format, chain BF [auth A] mmCIF format, chain BG [auth A] mmCIF format, chain BH [auth A] mmCIF format, chain CB [auth A] mmCIF format, chain CD [auth A] mmCIF format, chain CE [auth A] mmCIF format, chain CF [auth A] mmCIF format, chain CG [auth A] mmCIF format, chain CH [auth A] mmCIF format, chain DB [auth A] mmCIF format, chain DC [auth A] mmCIF format, chain DD [auth A] mmCIF format, chain DE [auth A] mmCIF format, chain DF [auth A] mmCIF format, chain DG [auth A] mmCIF format, chain DH [auth A] mmCIF format, chain EC [auth A] mmCIF format, chain ED [auth A] mmCIF format, chain EE [auth A] mmCIF format, chain EF [auth A] mmCIF format, chain EG [auth A] mmCIF format, chain EH [auth A] mmCIF format, chain FB [auth A] mmCIF format, chain FC [auth A] mmCIF format, chain FD [auth A] mmCIF format, chain FE [auth A] mmCIF format, chain FF [auth A] mmCIF format, chain FG [auth A] mmCIF format, chain FH [auth A] mmCIF format, chain GB [auth A] mmCIF format, chain GC [auth A] mmCIF format, chain GD [auth A] mmCIF format, chain GE [auth A] mmCIF format, chain GF [auth A] mmCIF format, chain GG [auth A] mmCIF format, chain GH [auth A] mmCIF format, chain HA [auth A] mmCIF format, chain HB [auth A] mmCIF format, chain HC [auth A] mmCIF format, chain HD [auth A] mmCIF format, chain HE [auth A] mmCIF format, chain HF [auth A] mmCIF format, chain HG [auth A] mmCIF format, chain HH [auth A] mmCIF format, chain IA [auth A] mmCIF format, chain IB [auth A] mmCIF format, chain IC [auth A] mmCIF format, chain ID [auth A] mmCIF format, chain IE [auth A] mmCIF format, chain IF [auth A] mmCIF format, chain IG [auth A] mmCIF format, chain IH [auth A] mmCIF format, chain JA [auth A] mmCIF format, chain JB [auth A] mmCIF format, chain JC [auth A] mmCIF format, chain JD [auth A] mmCIF format, chain JE [auth A] mmCIF format, chain JG [auth A] mmCIF format, chain JH [auth A] mmCIF format, chain KB [auth A] mmCIF format, chain KC [auth A] mmCIF format, chain KE [auth A] mmCIF format, chain KF [auth A] mmCIF format, chain KG [auth A] mmCIF format, chain LA [auth A] mmCIF format, chain LB [auth A] mmCIF format, chain LC [auth A] mmCIF format, chain LD [auth A] mmCIF format, chain LE [auth A] mmCIF format, chain LG [auth A] mmCIF format, chain LH [auth A] mmCIF format, chain MA [auth A] mmCIF format, chain MB [auth A] mmCIF format, chain MC [auth A] mmCIF format, chain MD [auth A] mmCIF format, chain ME [auth A] mmCIF format, chain MF [auth A] mmCIF format, chain MH [auth A] mmCIF format, chain NA [auth A] mmCIF format, chain NC [auth A] mmCIF format, chain ND [auth A] mmCIF format, chain NE [auth A] mmCIF format, chain NF [auth A] mmCIF format, chain NG [auth A] mmCIF format, chain NH [auth A] mmCIF format, chain OA [auth A] mmCIF format, chain OB [auth A] mmCIF format, chain OC [auth A] mmCIF format, chain OD [auth A] mmCIF format, chain OE [auth A] mmCIF format, chain OF [auth A] mmCIF format, chain OG [auth A] mmCIF format, chain OH [auth A] mmCIF format, chain PA [auth A] mmCIF format, chain PB [auth A] mmCIF format, chain PC [auth A] mmCIF format, chain PD [auth A] mmCIF format, chain PE [auth A] mmCIF format, chain PF [auth A] mmCIF format, chain PG [auth A] mmCIF format, chain PH [auth A] mmCIF format, chain QA [auth A] mmCIF format, chain QC [auth A] mmCIF format, chain QD [auth A] mmCIF format, chain QE [auth A] mmCIF format, chain QF [auth A] mmCIF format, chain QG [auth A] mmCIF format, chain QH [auth A] mmCIF format, chain RA [auth A] mmCIF format, chain RB [auth A] mmCIF format, chain RC [auth A] mmCIF format, chain RD [auth A] mmCIF format, chain RE [auth A] mmCIF format, chain RF [auth A] mmCIF format, chain RG [auth A] mmCIF format, chain RH [auth A] mmCIF format, chain SA [auth A] mmCIF format, chain SB [auth A] mmCIF format, chain SC [auth A] mmCIF format, chain SD [auth A] mmCIF format, chain SE [auth A] mmCIF format, chain SF [auth A] mmCIF format, chain SG [auth A] mmCIF format, chain SH [auth A] mmCIF format, chain TA [auth A] mmCIF format, chain TB [auth A] mmCIF format, chain TC [auth A] mmCIF format, chain TD [auth A] mmCIF format, chain TE [auth A] mmCIF format, chain TF [auth A] mmCIF format, chain TG [auth A] mmCIF format, chain TH [auth A] mmCIF format, chain UA [auth A] mmCIF format, chain UB [auth A] mmCIF format, chain UC [auth A] mmCIF format, chain UD [auth A] mmCIF format, chain UE [auth A] mmCIF format, chain UF [auth A] mmCIF format, chain UG [auth A] mmCIF format, chain UH [auth B] mmCIF format, chain VA [auth A] mmCIF format, chain VB [auth A] mmCIF format, chain VC [auth A] mmCIF format, chain VD [auth A] mmCIF format, chain VE [auth A] mmCIF format, chain VF [auth A] mmCIF format, chain VG [auth A] mmCIF format, chain VH [auth B] mmCIF format, chain WA [auth A] mmCIF format, chain WB [auth A] mmCIF format, chain WC [auth A] mmCIF format, chain WD [auth A] mmCIF format, chain WE [auth A] mmCIF format, chain WF [auth A] mmCIF format, chain WH [auth B] mmCIF format, chain XA [auth A] mmCIF format, chain XB [auth A] mmCIF format, chain XC [auth A] mmCIF format, chain XD [auth A] mmCIF format, chain XE [auth A] mmCIF format, chain XF [auth A] mmCIF format, chain XG [auth A] mmCIF format, chain XH [auth D] mmCIF format, chain YA [auth A] mmCIF format, chain YB [auth A] mmCIF format, chain YC [auth A] mmCIF format, chain YD [auth A] mmCIF format, chain YE [auth A] mmCIF format, chain YF [auth A] mmCIF format, chain YG [auth A] mmCIF format, chain YH [auth E] mmCIF format, chain ZA [auth A] mmCIF format, chain ZB [auth A] mmCIF format, chain ZC [auth A] mmCIF format, chain ZD [auth A] mmCIF format, chain ZE [auth A] mmCIF format, chain ZF [auth A] mmCIF format, chain ZG [auth A] mmCIF format, chain ZH [auth S] mmCIF format, chain WG [auth A] mmCIF format, chain QB [auth A] mmCIF format, chain NB [auth A] mmCIF format, chain MG [auth A] mmCIF format, chain LF [auth A] mmCIF format, chain KH [auth A] mmCIF format, chain KD [auth A] mmCIF format, chain KA [auth A] mmCIF format, chain JF [auth A] mmCIF format, chain EB [auth A] mmCIF format, chain CC [auth A] mmCIF format, chain BD [auth A] mmCIF format, chain AF [auth A]	AB [auth A] AC [auth A] AD [auth A] AE [auth A] AF [auth A] AB [auth A], AC [auth A], AD [auth A], AE [auth A], AF [auth A], AG [auth A], AH [auth A], AI [auth 4], BB [auth A], BC [auth A], BD [auth A], BE [auth A], BF [auth A], BG [auth A], BH [auth A], CB [auth A], CC [auth A], CD [auth A], CE [auth A], CF [auth A], CG [auth A], CH [auth A], DB [auth A], DC [auth A], DD [auth A], DE [auth A], DF [auth A], DG [auth A], DH [auth A], EB [auth A], EC [auth A], ED [auth A], EE [auth A], EF [auth A], EG [auth A], EH [auth A], FB [auth A], FC [auth A], FD [auth A], FE [auth A], FF [auth A], FG [auth A], FH [auth A], GB [auth A], GC [auth A], GD [auth A], GE [auth A], GF [auth A], GG [auth A], GH [auth A], HA [auth A], HB [auth A], HC [auth A], HD [auth A], HE [auth A], HF [auth A], HG [auth A], HH [auth A], IA [auth A], IB [auth A], IC [auth A], ID [auth A], IE [auth A], IF [auth A], IG [auth A], IH [auth A], JA [auth A], JB [auth A], JC [auth A], JD [auth A], JE [auth A], JF [auth A], JG [auth A], JH [auth A], KA [auth A], KB [auth A], KC [auth A], KD [auth A], KE [auth A], KF [auth A], KG [auth A], KH [auth A], LA [auth A], LB [auth A], LC [auth A], LD [auth A], LE [auth A], LF [auth A], LG [auth A], LH [auth A], MA [auth A], MB [auth A], MC [auth A], MD [auth A], ME [auth A], MF [auth A], MG [auth A], MH [auth A], NA [auth A], NB [auth A], NC [auth A], ND [auth A], NE [auth A], NF [auth A], NG [auth A], NH [auth A], OA [auth A], OB [auth A], OC [auth A], OD [auth A], OE [auth A], OF [auth A], OG [auth A], OH [auth A], PA [auth A], PB [auth A], PC [auth A], PD [auth A], PE [auth A], PF [auth A], PG [auth A], PH [auth A], QA [auth A], QB [auth A], QC [auth A], QD [auth A], QE [auth A], QF [auth A], QG [auth A], QH [auth A], RA [auth A], RB [auth A], RC [auth A], RD [auth A], RE [auth A], RF [auth A], RG [auth A], RH [auth A], SA [auth A], SB [auth A], SC [auth A], SD [auth A], SE [auth A], SF [auth A], SG [auth A], SH [auth A], TA [auth A], TB [auth A], TC [auth A], TD [auth A], TE [auth A], TF [auth A], TG [auth A], TH [auth A], UA [auth A], UB [auth A], UC [auth A], UD [auth A], UE [auth A], UF [auth A], UG [auth A], UH [auth B], VA [auth A], VB [auth A], VC [auth A], VD [auth A], VE [auth A], VF [auth A], VG [auth A], VH [auth B], WA [auth A], WB [auth A], WC [auth A], WD [auth A], WE [auth A], WF [auth A], WG [auth A], WH [auth B], XA [auth A], XB [auth A], XC [auth A], XD [auth A], XE [auth A], XF [auth A], XG [auth A], XH [auth D], YA [auth A], YB [auth A], YC [auth A], YD [auth A], YE [auth A], YF [auth A], YG [auth A], YH [auth E], ZA [auth A], ZB [auth A], ZC [auth A], ZD [auth A], ZE [auth A], ZF [auth A], ZG [auth A], ZH [auth S]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AB [auth A] Focus chain AC [auth A] Focus chain AD [auth A] Focus chain AE [auth A] Focus chain AF [auth A] Focus chain AG [auth A] Focus chain AH [auth A] Focus chain AI [auth 4] Focus chain BB [auth A] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BE [auth A] Focus chain BF [auth A] Focus chain BG [auth A] Focus chain BH [auth A] Focus chain CB [auth A] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain CG [auth A] Focus chain CH [auth A] Focus chain DB [auth A] Focus chain DC [auth A] Focus chain DD [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain DG [auth A] Focus chain DH [auth A] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain EG [auth A] Focus chain EH [auth A] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FF [auth A] Focus chain FG [auth A] Focus chain FH [auth A] Focus chain GB [auth A] Focus chain GC [auth A] Focus chain GD [auth A] Focus chain GE [auth A] Focus chain GF [auth A] Focus chain GG [auth A] Focus chain GH [auth A] Focus chain HA [auth A] Focus chain HB [auth A] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain HG [auth A] Focus chain HH [auth A] Focus chain IA [auth A] Focus chain IB [auth A] Focus chain IC [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain IF [auth A] Focus chain IG [auth A] Focus chain IH [auth A] Focus chain JA [auth A] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JE [auth A] Focus chain JF [auth A] Focus chain JG [auth A] Focus chain JH [auth A] Focus chain KA [auth A] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain KF [auth A] Focus chain KG [auth A] Focus chain KH [auth A] Focus chain LA [auth A] Focus chain LB [auth A] Focus chain LC [auth A] Focus chain LD [auth A] Focus chain LE [auth A] Focus chain LF [auth A] Focus chain LG [auth A] Focus chain LH [auth A] Focus chain MA [auth A] Focus chain MB [auth A] Focus chain MC [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth A] Focus chain MG [auth A] Focus chain MH [auth A] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth A] Focus chain NG [auth A] Focus chain NH [auth A] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OD [auth A] Focus chain OE [auth A] Focus chain OF [auth A] Focus chain OG [auth A] Focus chain OH [auth A] Focus chain PA [auth A] Focus chain PB [auth A] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain PF [auth A] Focus chain PG [auth A] Focus chain PH [auth A] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain QF [auth A] Focus chain QG [auth A] Focus chain QH [auth A] Focus chain RA [auth A] Focus chain RB [auth A] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RE [auth A] Focus chain RF [auth A] Focus chain RG [auth A] Focus chain RH [auth A] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain SF [auth A] Focus chain SG [auth A] Focus chain SH [auth A] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain TF [auth A] Focus chain TG [auth A] Focus chain TH [auth A] Focus chain UA [auth A] Focus chain UB [auth A] Focus chain UC [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain UF [auth A] Focus chain UG [auth A] Focus chain UH [auth B] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain VF [auth A] Focus chain VG [auth A] Focus chain VH [auth B] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain WF [auth A] Focus chain WG [auth A] Focus chain WH [auth B] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain XF [auth A] Focus chain XG [auth A] Focus chain XH [auth D] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain YF [auth A] Focus chain YG [auth A] Focus chain YH [auth E] Focus chain ZA [auth A] Focus chain ZB [auth A] Focus chain ZC [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A] Focus chain ZF [auth A] Focus chain ZG [auth A] Focus chain ZH [auth S] Interactions & Density Focus chain AB [auth A] Focus chain AC [auth A] Focus chain AD [auth A] Focus chain AE [auth A] Focus chain AF [auth A] Focus chain AG [auth A] Focus chain AH [auth A] Focus chain AI [auth 4] Focus chain BB [auth A] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BE [auth A] Focus chain BF [auth A] Focus chain BG [auth A] Focus chain BH [auth A] Focus chain CB [auth A] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain CG [auth A] Focus chain CH [auth A] Focus chain DB [auth A] Focus chain DC [auth A] Focus chain DD [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain DG [auth A] Focus chain DH [auth A] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain EG [auth A] Focus chain EH [auth A] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FF [auth A] Focus chain FG [auth A] Focus chain FH [auth A] Focus chain GB [auth A] Focus chain GC [auth A] Focus chain GD [auth A] Focus chain GE [auth A] Focus chain GF [auth A] Focus chain GG [auth A] Focus chain GH [auth A] Focus chain HA [auth A] Focus chain HB [auth A] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain HG [auth A] Focus chain HH [auth A] Focus chain IA [auth A] Focus chain IB [auth A] Focus chain IC [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain IF [auth A] Focus chain IG [auth A] Focus chain IH [auth A] Focus chain JA [auth A] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JE [auth A] Focus chain JF [auth A] Focus chain JG [auth A] Focus chain JH [auth A] Focus chain KA [auth A] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain KF [auth A] Focus chain KG [auth A] Focus chain KH [auth A] Focus chain LA [auth A] Focus chain LB [auth A] Focus chain LC [auth A] Focus chain LD [auth A] Focus chain LE [auth A] Focus chain LF [auth A] Focus chain LG [auth A] Focus chain LH [auth A] Focus chain MA [auth A] Focus chain MB [auth A] Focus chain MC [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth A] Focus chain MG [auth A] Focus chain MH [auth A] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth A] Focus chain NG [auth A] Focus chain NH [auth A] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OD [auth A] Focus chain OE [auth A] Focus chain OF [auth A] Focus chain OG [auth A] Focus chain OH [auth A] Focus chain PA [auth A] Focus chain PB [auth A] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain PF [auth A] Focus chain PG [auth A] Focus chain PH [auth A] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain QF [auth A] Focus chain QG [auth A] Focus chain QH [auth A] Focus chain RA [auth A] Focus chain RB [auth A] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RE [auth A] Focus chain RF [auth A] Focus chain RG [auth A] Focus chain RH [auth A] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain SF [auth A] Focus chain SG [auth A] Focus chain SH [auth A] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain TF [auth A] Focus chain TG [auth A] Focus chain TH [auth A] Focus chain UA [auth A] Focus chain UB [auth A] Focus chain UC [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain UF [auth A] Focus chain UG [auth A] Focus chain UH [auth B] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain VF [auth A] Focus chain VG [auth A] Focus chain VH [auth B] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain WF [auth A] Focus chain WG [auth A] Focus chain WH [auth B] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain XF [auth A] Focus chain XG [auth A] Focus chain XH [auth D] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain YF [auth A] Focus chain YG [auth A] Focus chain YH [auth E] Focus chain ZA [auth A] Focus chain ZB [auth A] Focus chain ZC [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A] Focus chain ZF [auth A] Focus chain ZG [auth A] Focus chain ZH [auth S]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.29 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC	v4.7.1

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	NIH 1R41GM148117
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	NIH R41GM153173
National Science Foundation (NSF, United States)	United States	NSF DBI-1828765
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	NIH P30GM140963
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	NIH R21 AI154171

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release

RCSB PDB is hosted by

RCSB PDB is a member of

RCSB Partners
Nucleic Acid Knowledgebase

RCSB PDB Core Operations are funded by the U.S. National Science Foundation (DBI-2321666), the US Department of Energy (DE-SC0019749), and the National Cancer Institute, National Institute of Allergy and Infectious Diseases, and National Institute of General Medical Sciences of the National Institutes of Health under grant R01GM157729. RCSB PDB uses resources of the National Energy Research Scientific Computing Center (NERSC), a Department of Energy User Facility.

9Q44 | pdb_00009q44

Pseudomonas aeruginosa 50S ribosome bound to RsfS (L1 stalk in 'out' conformation and missing uL1 and tRNA)

Literature

RsfS Prevents 70S Formation During Active Cell Growth in P. aeruginosa

Biological Assembly 1

Macromolecules

Entity ID: 3

UniProt

Entity Groups

Sequence Annotations

Entity ID: 4

UniProt

Entity Groups

Sequence Annotations

Entity ID: 5

UniProt

Entity Groups

Sequence Annotations

Entity ID: 6

UniProt

Entity Groups

Sequence Annotations

Entity ID: 7

UniProt

Entity Groups

Sequence Annotations

Entity ID: 8

UniProt

Entity Groups

Sequence Annotations

Entity ID: 9

UniProt

Entity Groups

Sequence Annotations

Entity ID: 10

UniProt

Entity Groups

Sequence Annotations

Entity ID: 11

UniProt

Entity Groups

Sequence Annotations

Entity ID: 12

UniProt

Entity Groups

Sequence Annotations

Entity ID: 13

UniProt

Entity Groups

Sequence Annotations

Entity ID: 14

UniProt

Entity Groups

Sequence Annotations

Entity ID: 15

UniProt

Entity Groups

Sequence Annotations

Entity ID: 16

UniProt

Entity Groups

Sequence Annotations

Entity ID: 17

UniProt

Entity Groups

Sequence Annotations

Entity ID: 18

UniProt

Entity Groups

Sequence Annotations

Entity ID: 19

UniProt

Entity Groups

Sequence Annotations

Entity ID: 20

UniProt

Entity Groups

Sequence Annotations

Entity ID: 21

UniProt
