9Q0B | pdb_00009q0b

CTX-M-15 WT in complex with BLIP E73W


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.58 Å
  • R-Value Free:
    0.182 (Depositor), 0.182 (DCC)
  • R-Value Work:
    0.163 (Depositor), 0.163 (DCC)
  • R-Value Observed:
    0.164 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

A beta-lactamase inhibitory protein mutant displays high potency and a broad inhibition profile due to an altered binding mode with beta-lactamases.

Rivera, P.Lu, S.Ngango, D.Sankaran, B.Venkataram Prasad, B.Palzkill, T.

(2025) J Biological Chem 301: 110850-110850

  • DOI: https://doi.org/10.1016/j.jbc.2025.110850
  • Primary Citation of Related Structures:
    9Q0A, 9Q0B, 9Q0C

  • PubMed Abstract:

    β-lactamase enzymes inactivate β-lactam antibiotics, leading to drug resistance. The β-lactamase inhibitory protein (BLIP) is a naturally occurring inhibitor of β-lactamases, with inhibition constants (K i ) ranging from picomolar to micromolar values. For example, BLIP inhibits CTX-M-14 β-lactamase with a K i of 330 nM while the K i for CTX-M-15 is 3 nM, despite CTX-M-14 and CTX-M-15 sharing 83% sequence identity. We used a genetic screen to identify a BLIP mutant, E73W, that potently inhibited CTX-M-14. Subsequent purification and testing of BLIP E73W revealed it is a potent, broad-spectrum inhibitor of class A β-lactamases. We determined structures of BLIP E73W in complex with the CTX-M-14, CTX-M-15, and TEM-1 β-lactamases to investigate the basis of the broad-spectrum inhibition. Previous structures of BLIP in complex with several class-A β-lactamases revealed that β-lactamase active site residue Tyr105 is found in an altered rotamer conformation. Also, in the case of the BLIP/CTX-M-15 complex, an altered conformation of the active site 103-106 loop is observed. In contrast, the BLIP E73W/β-lactamase complexes did not show the altered conformations of Tyr105 or the 103-106 loop. Instead, the mutant's mechanism involves BLIP Trp73 trapping Tyr105 against the wall of the active site in a similar conformation as in the apo-enzyme. Interestingly, the E73W mutant binds the apo-enzyme conformation in all of the BLIP E73W/β-lactamase complexes. Binding to the apo-enzyme conformation, which is expected to be highly populated in solution, as well as enhanced hydrophobic interactions of Trp73 with β-lactamases are possible explanations for the high potency and broad-spectrum inhibition.


  • Organizational Affiliation
    • Verna and Marrs McLean Department of Biochemistry and Molecular Pharmacology, Baylor College of Medicine, Houston, TX.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

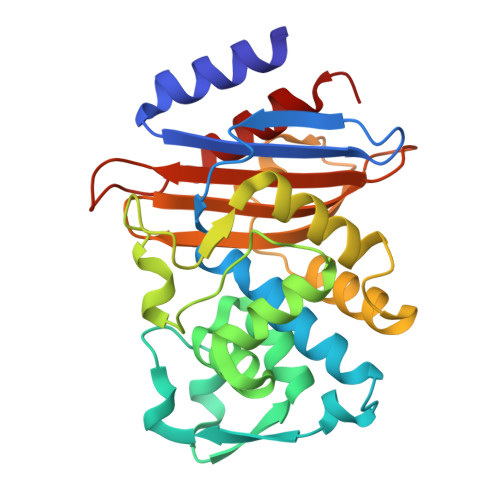

Beta-lactamase CTX-M-15261Escherichia coliMutation(s): 0
Gene Names: blablaCTX-M-15EWT59_27045
EC: 3.5.2.6
UniProt
Find proteins for A0A5R8T042 (Escherichia coli O25b:H4)
Explore A0A5R8T042
Go to UniProtKB:  A0A5R8T042
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5R8T042
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

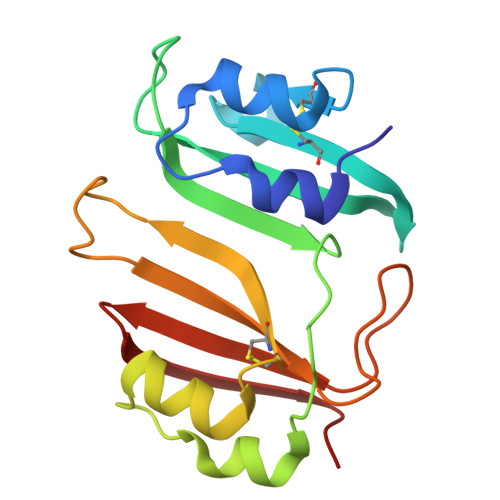

Beta-lactamase inhibitory protein164Streptomyces clavuligerusMutation(s): 1
UniProt
Find proteins for P35804 (Streptomyces clavuligerus)
Explore P35804
Go to UniProtKB:  P35804
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35804
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.58 Å
  • R-Value Free:  0.182 (Depositor), 0.182 (DCC)
  • R-Value Work:  0.163 (Depositor), 0.163 (DCC)
  • R-Value Observed: 0.164 (Depositor)
Space Group: I 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 47.46α = 90
b = 81.96β = 96.145
c = 129.074γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
iMOSFLMdata reduction
SCALAdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-05
    Type: Initial release
  • Version 1.1: 2025-12-03
    Changes: Database references
