9Q05 | pdb_00009q05

syNOS monomer bound to NADPH


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.09 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure and dynamics of a multidomain nitric oxide synthase regulated by a C2 domain.

Nair, D.Crane, B.R.

(2026) Sci Adv 12: eaeb4529-eaeb4529

  • DOI: https://doi.org/10.1126/sciadv.aeb4529
  • Primary Citation of Related Structures:
    9Q05, 9Q06, 9Q0X, 9Q0Y, 9Q15

  • PubMed Abstract:

    Nitric oxide synthase (NOS) is a widely studied multidomain redox enzyme that produces the key signaling molecule and cytotoxic agent nitric oxide (NO) for functions that range from mammalian vasodilation to prokaryotic antibiotic resistance. NOS enzymes from metazoans and cyanobacteria rely on dynamic associations of their oxygenase and coupled diflavin reductase domains that have largely evaded detailed structural characterization. Cryo-electron microscopy studies of a representative dimeric six-domain Synechococcus NOS reveal the architecture of the full-length enzyme, which contains an unusual regulatory C2 domain, and additional nitric oxide dioxygenase (NOD) and pseudoglobin modules. Five distinct structural states depict how pterin binding couples to tight and loose oxygenase conformations and how the Ca 2+ -sensitive C2 domain moves over 85 angstroms to alternatively regulate either the NOS or NOD heme center. The extended carboxyl-terminal tail and its dynamic interactions highlight an added layer of regulation required by multidomain NOSs compared to other diflavin reductases.


  • Organizational Affiliation
    • Weill Institute for Cell and Molecular Biology, Department of Chemistry and Chemical Biology, Cornell University, Ithaca, NY 14853, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

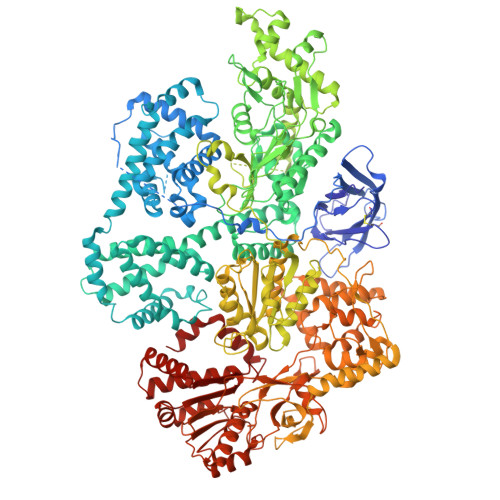

Nitric oxide synthase1,468Synechococcus sp. PCC 7335Mutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FAD (Subject of Investigation/LOI)
Query on FAD

Download Ideal Coordinates CCD File
D [auth A]FLAVIN-ADENINE DINUCLEOTIDE
C27 H33 N9 O15 P2
VWWQXMAJTJZDQX-UYBVJOGSSA-N
NAP (Subject of Investigation/LOI)
Query on NAP

Download Ideal Coordinates CCD File
F [auth A]NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H28 N7 O17 P3
XJLXINKUBYWONI-NNYOXOHSSA-N
HEM (Subject of Investigation/LOI)
Query on HEM

Download Ideal Coordinates CCD File
B [auth A],
C [auth A]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
FMN (Subject of Investigation/LOI)
Query on FMN

Download Ideal Coordinates CCD File
E [auth A]FLAVIN MONONUCLEOTIDE
C17 H21 N4 O9 P
FVTCRASFADXXNN-SCRDCRAPSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.09 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Science Foundation (NSF, United States)United StatesMCB 2129729

Revision History  (Full details and data files)

  • Version 1.0: 2026-01-14
    Type: Initial release
  • Version 1.1: 2026-03-04
    Changes: Data collection, Database references
