9PIZ | pdb_00009piz

Structure of KRAS-G12C bound to 1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one (compound 15)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.94 Å
  • R-Value Free:
    0.218 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.186 (Depositor), 0.192 (DCC)
  • R-Value Observed:
    0.188 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9PIZ

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Discovery and Optimization of a Potent, Efficacious, and Brain-Penetrant Inhibitor of KRAS G12C.

Landry, M.L.Malhotra, S.Beresini, M.Chan, C.Chan, E.de la Cruz, C.C.Endres, N.F.Evangelista, M.Gustafson, A.Hu, D.Hunsaker, T.Hsu, P.Izrayelit, Y.La, H.Saenz-Lopez Larrocha, P.Lian, Q.Merchant, M.Mao, J.Mroue, R.Oh, A.Plise, E.Shao, C.Siu, M.Tran, J.C.Wang, Y.Wang, W.Wei, B.Wong, S.Yen, C.W.Zhou, Y.Purkey, H.E.Heffron, T.P.Salphati, L.

(2026) J Med Chem 69: 5241-5258

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c02279
  • Primary Citation Related Structures:
    9PIZ

  • PubMed Abstract:

    Mutant KRAS is highly prevalent in human cancer and has been actively pursued as a target for drug discovery. Much progress has been made in drugging KRAS G12C, owing to the ability of inhibitors to covalently target its oncogenic cysteine mutation at codon 12. A number of KRAS G12C inhibitors have advanced to clinical development and are being investigated for the treatment of a variety of solid tumors. Notably, many patients with KRAS G12C-positive non-small cell lung cancer develop brain metastases. Herein, we report the discovery and development of a brain-penetrant inhibitor of KRAS G12C using divarasib as a starting point. Optimization efforts focused on reducing molecular weight and topological polar surface area as well as shielding of hydrogen bond donors. In this manner, active transport by both P-gp and breast cancer resistance protein (BCRP) was attenuated, and high exposure in rodent brain tissue was achieved.


  • Organizational Affiliation
    • Genentech, Inc., 1 DNA Way, South San Francisco, California 94080, United States.

Macromolecule Content

  • Total Structure Weight: 68.37 kDa
  • Atom Count: 4,910
  • Modeled Residue Count: 603
  • Deposited Residue Count: 612
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

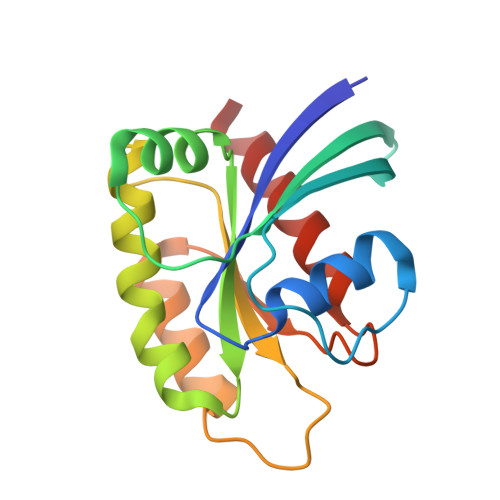

Isoform 2B of GTPase KRas171Homo sapiensMutation(s): 1
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

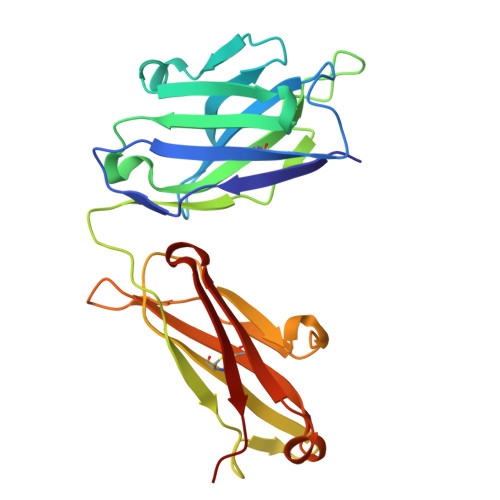

anti-KRAS heavy chainB [auth H]226synthetic constructMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

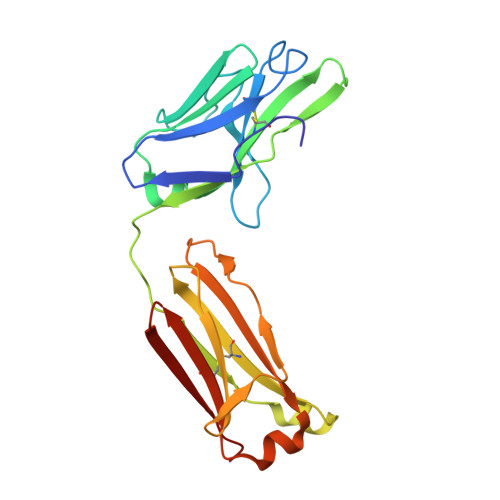

anti-KRAS light chainC [auth I]215synthetic constructMutation(s): 0

Small Molecules

Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1CII
(Subject of Investigation/LOI)

Query on A1CII



Download:Ideal Coordinates CCD File
F [auth A]1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one
C25 H20 Cl F5 N4 O2
DNDDKPAWCOTOAU-GFCCVEGCSA-N
GDP

Query on GDP



Download:Ideal Coordinates CCD File
E [auth A]GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
PEG

Query on PEG



Download:Ideal Coordinates CCD File
G [auth H]
J [auth H]
L [auth H]
N [auth I]
O [auth I]
G [auth H],
J [auth H],
L [auth H],
N [auth I],
O [auth I],
Q [auth I],
S [auth I]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
H
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
DMS

Query on DMS



Download:Ideal Coordinates CCD File
I [auth H],
M [auth H],
P [auth I]
DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
ACT

Query on ACT



Download:Ideal Coordinates CCD File
K [auth H],
R [auth I]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
MG

Query on MG



Download:Ideal Coordinates CCD File
D [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.94 Å
  • R-Value Free:  0.218 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.186 (Depositor), 0.192 (DCC)
  • R-Value Observed: 0.188 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 149.767α = 90
b = 69β = 114.19
c = 100.987γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHASERphasing
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other privateUnited States--

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-11
    Type: Initial release
  • Version 1.1: 2026-03-25
    Changes: Database references
