9PIJ | pdb_00009pij

E. coli 70S ribosome bound to Minocycline

PDB DOI: https://doi.org/10.2210/pdb9PIJ/pdb
EM Map EMD-71669: EMDB EMDataResource

Classification: RIBOSOME
Organism(s): Escherichia coli
Mutation(s): No

Deposited: 2025-07-10 Released: 2026-05-13
Deposition Author(s): Devarkar, S.C., Lomakin, I.B., Bunick, C.G.
Funding Organization(s): Other private

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Dual site targeting of the bacterial 70S ribosome by tetracyclines

Devarkar, S.C., Lomakin, I.B., Bunick, C.G.

(2026) Nat Commun

DOI: https://doi.org/10.1038/s41467-026-72788-9

Macromolecule Content

Total Structure Weight: 2,186.88 kDa
Atom Count: 141,677
Modeled Residue Count: 10,044
Deposited Residue Count: 10,576
Unique protein chains: 49
Unique nucleic acid chains: 5

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L33	A [auth 0]	55	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SME7 (Escherichia coli) Explore C3SME7 Go to UniProtKB: C3SME7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SME7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L34	B [auth 1]	46	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MGC4 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MGC4 Go to UniProtKB: B7MGC4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B7MGC4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L35	C [auth 2]	65	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7Q1 (Escherichia coli (strain K12)) Explore P0A7Q1 Go to UniProtKB: P0A7Q1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7Q1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L36	D [auth 3]	38	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2L017 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2L017 Go to UniProtKB: A0A0E2L017
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0E2L017
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L31	E [auth 4]	70	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7M9 (Escherichia coli (strain K12)) Explore P0A7M9 Go to UniProtKB: P0A7M9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7M9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S2	G [auth B]	241	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3TPN2 (Escherichia coli) Explore C3TPN2 Go to UniProtKB: C3TPN2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3TPN2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS3	H [auth C]	233	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MCS9 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MCS9 Go to UniProtKB: B7MCS9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B7MCS9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS4	I [auth D]	206	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12)) Explore P0A7V8 Go to UniProtKB: P0A7V8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7V8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS5	J [auth E]	167	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12)) Explore P0A7W1 Go to UniProtKB: P0A7W1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7W1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS6	K [auth F]	135	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P02358 (Escherichia coli (strain K12)) Explore P02358 Go to UniProtKB: P02358
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P02358
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS7	L [auth G]	179	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P02359 (Escherichia coli (strain K12)) Explore P02359 Go to UniProtKB: P02359
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P02359
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS8	M [auth H]	130	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SR12 (Escherichia coli) Explore C3SR12 Go to UniProtKB: C3SR12
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR12
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS9	N [auth I]	130	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SRY2 (Escherichia coli) Explore C3SRY2 Go to UniProtKB: C3SRY2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SRY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS10	O [auth J]	103	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQT7 (Escherichia coli) Explore C3SQT7 Go to UniProtKB: C3SQT7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQT7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S11	P [auth K]	129	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MCR3 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MCR3 Go to UniProtKB: B7MCR3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B7MCR3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS12	Q [auth L]	124	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0F1AUC4 (Enterobacter sichuanensis) Explore A0A0F1AUC4 Go to UniProtKB: A0A0F1AUC4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0F1AUC4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

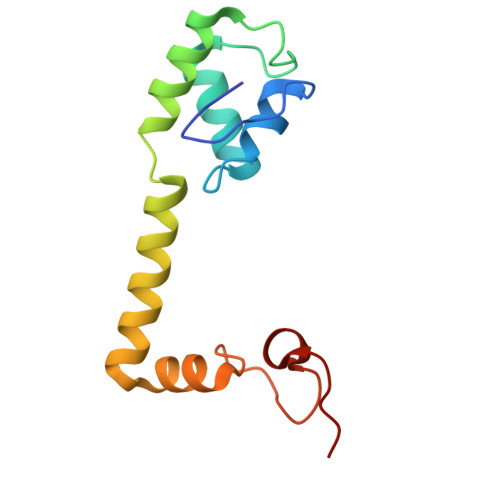

Small ribosomal subunit protein uS13	R [auth M]	118	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A7U9IV78 (Escherichia coli HVH 36) Explore A0A7U9IV78 Go to UniProtKB: A0A7U9IV78
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A7U9IV78
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS14	S [auth N]	101	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A2X1PQW4 (Escherichia coli) Explore A0A2X1PQW4 Go to UniProtKB: A0A2X1PQW4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A2X1PQW4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS15	T [auth O]	89	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SSQ7 (Escherichia coli) Explore C3SSQ7 Go to UniProtKB: C3SSQ7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SSQ7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS16	U [auth P]	82	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SYP2 (Escherichia coli) Explore C3SYP2 Go to UniProtKB: C3SYP2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SYP2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS17	V [auth Q]	84	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQY7 (Escherichia coli) Explore C3SQY7 Go to UniProtKB: C3SQY7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS18	W [auth R]	75	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2KXL3 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2KXL3 Go to UniProtKB: A0A0E2KXL3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0E2KXL3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS19	X [auth S]	92	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQW2 (Escherichia coli) Explore C3SQW2 Go to UniProtKB: C3SQW2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQW2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS20	Y [auth T]	87	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3TRH7 (Escherichia coli) Explore C3TRH7 Go to UniProtKB: C3TRH7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3TRH7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS21	Z [auth U]	71	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2L2J1 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2L2J1 Go to UniProtKB: A0A0E2L2J1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0E2L2J1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L2	EA [auth c]	273	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P60422 (Escherichia coli (strain K12)) Explore P60422 Go to UniProtKB: P60422
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P60422
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L3	FA [auth d]	209	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQU2 (Escherichia coli) Explore C3SQU2 Go to UniProtKB: C3SQU2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQU2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL4	GA [auth e]	201	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P60723 (Escherichia coli (strain K12)) Explore P60723 Go to UniProtKB: P60723
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P60723
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL5	HA [auth f]	179	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P62399 (Escherichia coli (strain K12)) Explore P62399 Go to UniProtKB: P62399
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P62399
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL6	IA [auth g]	177	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0AG55 (Escherichia coli (strain K12)) Explore P0AG55 Go to UniProtKB: P0AG55
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0AG55
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL9	JA [auth h]	149	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7R1 (Escherichia coli (strain K12)) Explore P0A7R1 Go to UniProtKB: P0A7R1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7R1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL13	KA [auth i]	142	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0AA10 (Escherichia coli (strain K12)) Explore P0AA10 Go to UniProtKB: P0AA10
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0AA10
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL14	LA [auth j]	123	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0ADY3 (Escherichia coli (strain K12)) Explore P0ADY3 Go to UniProtKB: P0ADY3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0ADY3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL15	MA [auth k]	144	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P02413 (Escherichia coli (strain K12)) Explore P02413 Go to UniProtKB: P02413
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P02413
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L16	NA [auth l]	136	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0ADY7 (Escherichia coli (strain K12)) Explore P0ADY7 Go to UniProtKB: P0ADY7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0ADY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL17	OA [auth m]	127	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0AG44 (Escherichia coli (strain K12)) Explore P0AG44 Go to UniProtKB: P0AG44
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0AG44
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL18	PA [auth n]	117	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0C018 (Escherichia coli (strain K12)) Explore P0C018 Go to UniProtKB: P0C018
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0C018
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL19	QA [auth o]	115	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7K8 (Escherichia coli O157:H7) Explore P0A7K8 Go to UniProtKB: P0A7K8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7K8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L20	RA [auth p]	118	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MAS6 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MAS6 Go to UniProtKB: B7MAS6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B7MAS6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image
Ribosomal protein L21	SA [auth q]	103	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SSG2 (Escherichia coli) Explore C3SSG2 Go to UniProtKB: C3SSG2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SSG2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L22	TA [auth r]	110	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P61175 (Escherichia coli (strain K12)) Explore P61175 Go to UniProtKB: P61175
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P61175
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 47
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L23	UA [auth s]	100	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQV2 (Escherichia coli) Explore C3SQV2 Go to UniProtKB: C3SQV2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQV2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L24	VA [auth t]	104	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQZ7 (Escherichia coli) Explore C3SQZ7 Go to UniProtKB: C3SQZ7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQZ7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL25	WA [auth u]	94	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P68919 (Escherichia coli (strain K12)) Explore P68919 Go to UniProtKB: P68919
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P68919
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L27	XA [auth v]	85	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7L8 (Escherichia coli (strain K12)) Explore P0A7L8 Go to UniProtKB: P0A7L8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A7L8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 51
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L28	YA [auth w]	78	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A1X3JA73 (Escherichia coli H386) Explore A0A1X3JA73 Go to UniProtKB: A0A1X3JA73
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A1X3JA73
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 52
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL29	ZA [auth x]	63	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQY2 (Escherichia coli) Explore C3SQY2 Go to UniProtKB: C3SQY2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 53
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L30	AB [auth y]	59	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SR32 (Escherichia coli) Explore C3SR32 Go to UniProtKB: C3SR32
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR32
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 54
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L32	BB [auth z]	57	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3TE02 (Escherichia coli) Explore C3TE02 Go to UniProtKB: C3TE02
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3TE02
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 6
16S rRNA	F [auth A]	1,542	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism
Entity ID: 27
mRNA	AA [auth X]	22	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 28
P-site tRNA	BA [auth Z]	75	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 29
23S rRNA	CA [auth a]	2,904	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 30
5S rRNA	DA [auth b]	120	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MIY (Subject of Investigation/LOI) Query on MIY Download:Ideal Coordinates CCD File SDF format, chain AG [auth a] SDF format, chain LC [auth A] MOL2 format, chain AG [auth a] MOL2 format, chain LC [auth A] mmCIF format, chain AG [auth a] mmCIF format, chain LC [auth A]	AG [auth a], LC [auth A]	(4S,4AS,5AR,12AS)-4,7-BIS(DIMETHYLAMINO)-3,10,12,12A-TETRAHYDROXY-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2- CARBOXAMIDE C₂₃ H₂₇ N₃ O₇ DYKFCLLONBREIL-KVUCHLLUSA-N		Interactions Focus chain AG [auth a] Focus chain LC [auth A] Interactions & Density Focus chain AG [auth a] Focus chain LC [auth A]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain CB [auth 3] MOL2 format, chain CB [auth 3] mmCIF format, chain CB [auth 3]	CB [auth 3]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain CB [auth 3] Interactions & Density Focus chain CB [auth 3]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain AD [auth A] SDF format, chain AF [auth A] SDF format, chain AJ [auth a] SDF format, chain AK [auth a] SDF format, chain AL [auth a] SDF format, chain AP [auth a] SDF format, chain BE [auth A] SDF format, chain BG [auth a] SDF format, chain BH [auth a] SDF format, chain BK [auth a] SDF format, chain BP [auth a] SDF format, chain CG [auth a] SDF format, chain CT [auth a] SDF format, chain DC [auth A] SDF format, chain DE [auth A] SDF format, chain DF [auth A] SDF format, chain DG [auth a] SDF format, chain EB [auth A] SDF format, chain EC [auth A] SDF format, chain EG [auth a] SDF format, chain EP [auth a] SDF format, chain EQ [auth a] SDF format, chain ER [auth a] SDF format, chain FD [auth A] SDF format, chain FG [auth a] SDF format, chain FP [auth a] SDF format, chain FR [auth a] SDF format, chain FS [auth a] SDF format, chain GC [auth A] SDF format, chain GE [auth A] SDF format, chain GG [auth a] SDF format, chain GK [auth a] SDF format, chain GQ [auth a] SDF format, chain GR [auth a] SDF format, chain GS [auth a] SDF format, chain HC [auth A] SDF format, chain HD [auth A] SDF format, chain HG [auth a] SDF format, chain HO [auth a] SDF format, chain HP [auth a] SDF format, chain HR [auth a] SDF format, chain IC [auth A] SDF format, chain IG [auth a] SDF format, chain II [auth a] SDF format, chain IK [auth a] SDF format, chain IL [auth a] SDF format, chain IR [auth a] SDF format, chain JC [auth A] SDF format, chain JD [auth A] SDF format, chain JG [auth a] SDF format, chain JK [auth a] SDF format, chain JL [auth a] SDF format, chain JR [auth a] SDF format, chain KG [auth a] SDF format, chain KM [auth a] SDF format, chain KP [auth a] SDF format, chain KQ [auth a] SDF format, chain LB [auth A] SDF format, chain LD [auth A] SDF format, chain LG [auth a] SDF format, chain LJ [auth a] SDF format, chain LK [auth a] SDF format, chain LN [auth a] SDF format, chain LO [auth a] SDF format, chain LQ [auth a] SDF format, chain MC [auth A] SDF format, chain MG [auth a] SDF format, chain MJ [auth a] SDF format, chain MK [auth a] SDF format, chain MO [auth a] SDF format, chain MR [auth a] SDF format, chain NG [auth a] SDF format, chain NI [auth a] SDF format, chain NJ [auth a] SDF format, chain NP [auth a] SDF format, chain NQ [auth a] SDF format, chain OD [auth A] SDF format, chain OG [auth a] SDF format, chain OJ [auth a] SDF format, chain OK [auth a] SDF format, chain OM [auth a] SDF format, chain OO [auth a] SDF format, chain OP [auth a] SDF format, chain OQ [auth a] SDF format, chain PB [auth A] SDF format, chain PF [auth A] SDF format, chain PK [auth a] SDF format, chain PL [auth a] SDF format, chain PO [auth a] SDF format, chain QC [auth A] SDF format, chain QF [auth A] SDF format, chain QJ [auth a] SDF format, chain QL [auth a] SDF format, chain QP [auth a] SDF format, chain QQ [auth a] SDF format, chain RC [auth A] SDF format, chain RD [auth A] SDF format, chain RK [auth a] SDF format, chain RL [auth a] SDF format, chain RP [auth a] SDF format, chain RQ [auth a] SDF format, chain SF [auth A] SDF format, chain SK [auth a] SDF format, chain ST [auth b] SDF format, chain TG [auth a] SDF format, chain TH [auth a] SDF format, chain TO [auth a] SDF format, chain TQ [auth a] SDF format, chain UC [auth A] SDF format, chain UG [auth a] SDF format, chain UJ [auth a] SDF format, chain UO [auth a] SDF format, chain VB [auth A] SDF format, chain VG [auth a] SDF format, chain VI [auth a] SDF format, chain VJ [auth a] SDF format, chain VN [auth a] SDF format, chain WF [auth a] SDF format, chain WG [auth a] SDF format, chain WL [auth a] SDF format, chain WT [auth c] SDF format, chain XC [auth A] SDF format, chain XD [auth A] SDF format, chain XE [auth A] SDF format, chain XF [auth a] SDF format, chain XG [auth a] SDF format, chain XI [auth a] SDF format, chain XJ [auth a] SDF format, chain XN [auth a] SDF format, chain XO [auth a] SDF format, chain YC [auth A] SDF format, chain YF [auth a] SDF format, chain YG [auth a] SDF format, chain YJ [auth a] SDF format, chain YO [auth a] SDF format, chain YQ [auth a] SDF format, chain ZC [auth A] SDF format, chain ZF [auth a] SDF format, chain ZJ [auth a] SDF format, chain ZK [auth a] SDF format, chain WO [auth a] SDF format, chain VC [auth A] SDF format, chain SQ [auth a] SDF format, chain QK [auth a] SDF format, chain JB [auth A] SDF format, chain IP [auth a] SDF format, chain HL [auth a] SDF format, chain FE [auth A] MOL2 format, chain AD [auth A] MOL2 format, chain AF [auth A] MOL2 format, chain AJ [auth a] MOL2 format, chain AK [auth a] MOL2 format, chain AL [auth a] MOL2 format, chain AP [auth a] MOL2 format, chain BE [auth A] MOL2 format, chain BG [auth a] MOL2 format, chain BH [auth a] MOL2 format, chain BK [auth a] MOL2 format, chain BP [auth a] MOL2 format, chain CG [auth a] MOL2 format, chain CT [auth a] MOL2 format, chain DC [auth A] MOL2 format, chain DE [auth A] MOL2 format, chain DF [auth A] MOL2 format, chain DG [auth a] MOL2 format, chain EB [auth A] MOL2 format, chain EC [auth A] MOL2 format, chain EG [auth a] MOL2 format, chain EP [auth a] MOL2 format, chain EQ [auth a] MOL2 format, chain ER [auth a] MOL2 format, chain FD [auth A] MOL2 format, chain FG [auth a] MOL2 format, chain FP [auth a] MOL2 format, chain FR [auth a] MOL2 format, chain FS [auth a] MOL2 format, chain GC [auth A] MOL2 format, chain GE [auth A] MOL2 format, chain GG [auth a] MOL2 format, chain GK [auth a] MOL2 format, chain GQ [auth a] MOL2 format, chain GR [auth a] MOL2 format, chain GS [auth a] MOL2 format, chain HC [auth A] MOL2 format, chain HD [auth A] MOL2 format, chain HG [auth a] MOL2 format, chain HO [auth a] MOL2 format, chain HP [auth a] MOL2 format, chain HR [auth a] MOL2 format, chain IC [auth A] MOL2 format, chain IG [auth a] MOL2 format, chain II [auth a] MOL2 format, chain IK [auth a] MOL2 format, chain IL [auth a] MOL2 format, chain IR [auth a] MOL2 format, chain JC [auth A] MOL2 format, chain JD [auth A] MOL2 format, chain JG [auth a] MOL2 format, chain JK [auth a] MOL2 format, chain JL [auth a] MOL2 format, chain JR [auth a] MOL2 format, chain KG [auth a] MOL2 format, chain KM [auth a] MOL2 format, chain KP [auth a] MOL2 format, chain KQ [auth a] MOL2 format, chain LB [auth A] MOL2 format, chain LD [auth A] MOL2 format, chain LG [auth a] MOL2 format, chain LJ [auth a] MOL2 format, chain LK [auth a] MOL2 format, chain LN [auth a] MOL2 format, chain LO [auth a] MOL2 format, chain LQ [auth a] MOL2 format, chain MC [auth A] MOL2 format, chain MG [auth a] MOL2 format, chain MJ [auth a] MOL2 format, chain MK [auth a] MOL2 format, chain MO [auth a] MOL2 format, chain MR [auth a] MOL2 format, chain NG [auth a] MOL2 format, chain NI [auth a] MOL2 format, chain NJ [auth a] MOL2 format, chain NP [auth a] MOL2 format, chain NQ [auth a] MOL2 format, chain OD [auth A] MOL2 format, chain OG [auth a] MOL2 format, chain OJ [auth a] MOL2 format, chain OK [auth a] MOL2 format, chain OM [auth a] MOL2 format, chain OO [auth a] MOL2 format, chain OP [auth a] MOL2 format, chain OQ [auth a] MOL2 format, chain PB [auth A] MOL2 format, chain PF [auth A] MOL2 format, chain PK [auth a] MOL2 format, chain PL [auth a] MOL2 format, chain PO [auth a] MOL2 format, chain QC [auth A] MOL2 format, chain QF [auth A] MOL2 format, chain QJ [auth a] MOL2 format, chain QL [auth a] MOL2 format, chain QP [auth a] MOL2 format, chain QQ [auth a] MOL2 format, chain RC [auth A] MOL2 format, chain RD [auth A] MOL2 format, chain RK [auth a] MOL2 format, chain RL [auth a] MOL2 format, chain RP [auth a] MOL2 format, chain RQ [auth a] MOL2 format, chain SF [auth A] MOL2 format, chain SK [auth a] MOL2 format, chain ST [auth b] MOL2 format, chain TG [auth a] MOL2 format, chain TH [auth a] MOL2 format, chain TO [auth a] MOL2 format, chain TQ [auth a] MOL2 format, chain UC [auth A] MOL2 format, chain UG [auth a] MOL2 format, chain UJ [auth a] MOL2 format, chain UO [auth a] MOL2 format, chain VB [auth A] MOL2 format, chain VG [auth a] MOL2 format, chain VI [auth a] MOL2 format, chain VJ [auth a] MOL2 format, chain VN [auth a] MOL2 format, chain WF [auth a] MOL2 format, chain WG [auth a] MOL2 format, chain WL [auth a] MOL2 format, chain WT [auth c] MOL2 format, chain XC [auth A] MOL2 format, chain XD [auth A] MOL2 format, chain XE [auth A] MOL2 format, chain XF [auth a] MOL2 format, chain XG [auth a] MOL2 format, chain XI [auth a] MOL2 format, chain XJ [auth a] MOL2 format, chain XN [auth a] MOL2 format, chain XO [auth a] MOL2 format, chain YC [auth A] MOL2 format, chain YF [auth a] MOL2 format, chain YG [auth a] MOL2 format, chain YJ [auth a] MOL2 format, chain YO [auth a] MOL2 format, chain YQ [auth a] MOL2 format, chain ZC [auth A] MOL2 format, chain ZF [auth a] MOL2 format, chain ZJ [auth a] MOL2 format, chain ZK [auth a] MOL2 format, chain WO [auth a] MOL2 format, chain VC [auth A] MOL2 format, chain SQ [auth a] MOL2 format, chain QK [auth a] MOL2 format, chain JB [auth A] MOL2 format, chain IP [auth a] MOL2 format, chain HL [auth a] MOL2 format, chain FE [auth A] mmCIF format, chain AD [auth A] mmCIF format, chain AF [auth A] mmCIF format, chain AJ [auth a] mmCIF format, chain AK [auth a] mmCIF format, chain AL [auth a] mmCIF format, chain AP [auth a] mmCIF format, chain BE [auth A] mmCIF format, chain BG [auth a] mmCIF format, chain BH [auth a] mmCIF format, chain BK [auth a] mmCIF format, chain BP [auth a] mmCIF format, chain CG [auth a] mmCIF format, chain CT [auth a] mmCIF format, chain DC [auth A] mmCIF format, chain DE [auth A] mmCIF format, chain DF [auth A] mmCIF format, chain DG [auth a] mmCIF format, chain EB [auth A] mmCIF format, chain EC [auth A] mmCIF format, chain EG [auth a] mmCIF format, chain EP [auth a] mmCIF format, chain EQ [auth a] mmCIF format, chain ER [auth a] mmCIF format, chain FD [auth A] mmCIF format, chain FG [auth a] mmCIF format, chain FP [auth a] mmCIF format, chain FR [auth a] mmCIF format, chain FS [auth a] mmCIF format, chain GC [auth A] mmCIF format, chain GE [auth A] mmCIF format, chain GG [auth a] mmCIF format, chain GK [auth a] mmCIF format, chain GQ [auth a] mmCIF format, chain GR [auth a] mmCIF format, chain GS [auth a] mmCIF format, chain HC [auth A] mmCIF format, chain HD [auth A] mmCIF format, chain HG [auth a] mmCIF format, chain HO [auth a] mmCIF format, chain HP [auth a] mmCIF format, chain HR [auth a] mmCIF format, chain IC [auth A] mmCIF format, chain IG [auth a] mmCIF format, chain II [auth a] mmCIF format, chain IK [auth a] mmCIF format, chain IL [auth a] mmCIF format, chain IR [auth a] mmCIF format, chain JC [auth A] mmCIF format, chain JD [auth A] mmCIF format, chain JG [auth a] mmCIF format, chain JK [auth a] mmCIF format, chain JL [auth a] mmCIF format, chain JR [auth a] mmCIF format, chain KG [auth a] mmCIF format, chain KM [auth a] mmCIF format, chain KP [auth a] mmCIF format, chain KQ [auth a] mmCIF format, chain LB [auth A] mmCIF format, chain LD [auth A] mmCIF format, chain LG [auth a] mmCIF format, chain LJ [auth a] mmCIF format, chain LK [auth a] mmCIF format, chain LN [auth a] mmCIF format, chain LO [auth a] mmCIF format, chain LQ [auth a] mmCIF format, chain MC [auth A] mmCIF format, chain MG [auth a] mmCIF format, chain MJ [auth a] mmCIF format, chain MK [auth a] mmCIF format, chain MO [auth a] mmCIF format, chain MR [auth a] mmCIF format, chain NG [auth a] mmCIF format, chain NI [auth a] mmCIF format, chain NJ [auth a] mmCIF format, chain NP [auth a] mmCIF format, chain NQ [auth a] mmCIF format, chain OD [auth A] mmCIF format, chain OG [auth a] mmCIF format, chain OJ [auth a] mmCIF format, chain OK [auth a] mmCIF format, chain OM [auth a] mmCIF format, chain OO [auth a] mmCIF format, chain OP [auth a] mmCIF format, chain OQ [auth a] mmCIF format, chain PB [auth A] mmCIF format, chain PF [auth A] mmCIF format, chain PK [auth a] mmCIF format, chain PL [auth a] mmCIF format, chain PO [auth a] mmCIF format, chain QC [auth A] mmCIF format, chain QF [auth A] mmCIF format, chain QJ [auth a] mmCIF format, chain QL [auth a] mmCIF format, chain QP [auth a] mmCIF format, chain QQ [auth a] mmCIF format, chain RC [auth A] mmCIF format, chain RD [auth A] mmCIF format, chain RK [auth a] mmCIF format, chain RL [auth a] mmCIF format, chain RP [auth a] mmCIF format, chain RQ [auth a] mmCIF format, chain SF [auth A] mmCIF format, chain SK [auth a] mmCIF format, chain ST [auth b] mmCIF format, chain TG [auth a] mmCIF format, chain TH [auth a] mmCIF format, chain TO [auth a] mmCIF format, chain TQ [auth a] mmCIF format, chain UC [auth A] mmCIF format, chain UG [auth a] mmCIF format, chain UJ [auth a] mmCIF format, chain UO [auth a] mmCIF format, chain VB [auth A] mmCIF format, chain VG [auth a] mmCIF format, chain VI [auth a] mmCIF format, chain VJ [auth a] mmCIF format, chain VN [auth a] mmCIF format, chain WF [auth a] mmCIF format, chain WG [auth a] mmCIF format, chain WL [auth a] mmCIF format, chain WT [auth c] mmCIF format, chain XC [auth A] mmCIF format, chain XD [auth A] mmCIF format, chain XE [auth A] mmCIF format, chain XF [auth a] mmCIF format, chain XG [auth a] mmCIF format, chain XI [auth a] mmCIF format, chain XJ [auth a] mmCIF format, chain XN [auth a] mmCIF format, chain XO [auth a] mmCIF format, chain YC [auth A] mmCIF format, chain YF [auth a] mmCIF format, chain YG [auth a] mmCIF format, chain YJ [auth a] mmCIF format, chain YO [auth a] mmCIF format, chain YQ [auth a] mmCIF format, chain ZC [auth A] mmCIF format, chain ZF [auth a] mmCIF format, chain ZJ [auth a] mmCIF format, chain ZK [auth a] mmCIF format, chain WO [auth a] mmCIF format, chain VC [auth A] mmCIF format, chain SQ [auth a] mmCIF format, chain QK [auth a] mmCIF format, chain JB [auth A] mmCIF format, chain IP [auth a] mmCIF format, chain HL [auth a] mmCIF format, chain FE [auth A]	AD [auth A] AF [auth A] AJ [auth a] AK [auth a] AL [auth a] AD [auth A], AF [auth A], AJ [auth a], AK [auth a], AL [auth a], AP [auth a], BE [auth A], BG [auth a], BH [auth a], BK [auth a], BP [auth a], CG [auth a], CT [auth a], DC [auth A], DE [auth A], DF [auth A], DG [auth a], EB [auth A], EC [auth A], EG [auth a], EP [auth a], EQ [auth a], ER [auth a], FD [auth A], FE [auth A], FG [auth a], FP [auth a], FR [auth a], FS [auth a], GC [auth A], GE [auth A], GG [auth a], GK [auth a], GQ [auth a], GR [auth a], GS [auth a], HC [auth A], HD [auth A], HG [auth a], HL [auth a], HO [auth a], HP [auth a], HR [auth a], IC [auth A], IG [auth a], II [auth a], IK [auth a], IL [auth a], IP [auth a], IR [auth a], JB [auth A], JC [auth A], JD [auth A], JG [auth a], JK [auth a], JL [auth a], JR [auth a], KG [auth a], KM [auth a], KP [auth a], KQ [auth a], LB [auth A], LD [auth A], LG [auth a], LJ [auth a], LK [auth a], LN [auth a], LO [auth a], LQ [auth a], MC [auth A], MG [auth a], MJ [auth a], MK [auth a], MO [auth a], MR [auth a], NG [auth a], NI [auth a], NJ [auth a], NP [auth a], NQ [auth a], OD [auth A], OG [auth a], OJ [auth a], OK [auth a], OM [auth a], OO [auth a], OP [auth a], OQ [auth a], PB [auth A], PF [auth A], PK [auth a], PL [auth a], PO [auth a], QC [auth A], QF [auth A], QJ [auth a], QK [auth a], QL [auth a], QP [auth a], QQ [auth a], RC [auth A], RD [auth A], RK [auth a], RL [auth a], RP [auth a], RQ [auth a], SF [auth A], SK [auth a], SQ [auth a], ST [auth b], TG [auth a], TH [auth a], TO [auth a], TQ [auth a], UC [auth A], UG [auth a], UJ [auth a], UO [auth a], VB [auth A], VC [auth A], VG [auth a], VI [auth a], VJ [auth a], VN [auth a], WF [auth a], WG [auth a], WL [auth a], WO [auth a], WT [auth c], XC [auth A], XD [auth A], XE [auth A], XF [auth a], XG [auth a], XI [auth a], XJ [auth a], XN [auth a], XO [auth a], YC [auth A], YF [auth a], YG [auth a], YJ [auth a], YO [auth a], YQ [auth a], ZC [auth A], ZF [auth a], ZJ [auth a], ZK [auth a]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain AD [auth A] Focus chain AF [auth A] Focus chain AJ [auth a] Focus chain AK [auth a] Focus chain AL [auth a] Focus chain AP [auth a] Focus chain BE [auth A] Focus chain BG [auth a] Focus chain BH [auth a] Focus chain BK [auth a] Focus chain BP [auth a] Focus chain CG [auth a] Focus chain CT [auth a] Focus chain DC [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain DG [auth a] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain EG [auth a] Focus chain EP [auth a] Focus chain EQ [auth a] Focus chain ER [auth a] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FG [auth a] Focus chain FP [auth a] Focus chain FR [auth a] Focus chain FS [auth a] Focus chain GC [auth A] Focus chain GE [auth A] Focus chain GG [auth a] Focus chain GK [auth a] Focus chain GQ [auth a] Focus chain GR [auth a] Focus chain GS [auth a] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HG [auth a] Focus chain HL [auth a] Focus chain HO [auth a] Focus chain HP [auth a] Focus chain HR [auth a] Focus chain IC [auth A] Focus chain IG [auth a] Focus chain II [auth a] Focus chain IK [auth a] Focus chain IL [auth a] Focus chain IP [auth a] Focus chain IR [auth a] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JG [auth a] Focus chain JK [auth a] Focus chain JL [auth a] Focus chain JR [auth a] Focus chain KG [auth a] Focus chain KM [auth a] Focus chain KP [auth a] Focus chain KQ [auth a] Focus chain LB [auth A] Focus chain LD [auth A] Focus chain LG [auth a] Focus chain LJ [auth a] Focus chain LK [auth a] Focus chain LN [auth a] Focus chain LO [auth a] Focus chain LQ [auth a] Focus chain MC [auth A] Focus chain MG [auth a] Focus chain MJ [auth a] Focus chain MK [auth a] Focus chain MO [auth a] Focus chain MR [auth a] Focus chain NG [auth a] Focus chain NI [auth a] Focus chain NJ [auth a] Focus chain NP [auth a] Focus chain NQ [auth a] Focus chain OD [auth A] Focus chain OG [auth a] Focus chain OJ [auth a] Focus chain OK [auth a] Focus chain OM [auth a] Focus chain OO [auth a] Focus chain OP [auth a] Focus chain OQ [auth a] Focus chain PB [auth A] Focus chain PF [auth A] Focus chain PK [auth a] Focus chain PL [auth a] Focus chain PO [auth a] Focus chain QC [auth A] Focus chain QF [auth A] Focus chain QJ [auth a] Focus chain QK [auth a] Focus chain QL [auth a] Focus chain QP [auth a] Focus chain QQ [auth a] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RK [auth a] Focus chain RL [auth a] Focus chain RP [auth a] Focus chain RQ [auth a] Focus chain SF [auth A] Focus chain SK [auth a] Focus chain SQ [auth a] Focus chain ST [auth b] Focus chain TG [auth a] Focus chain TH [auth a] Focus chain TO [auth a] Focus chain TQ [auth a] Focus chain UC [auth A] Focus chain UG [auth a] Focus chain UJ [auth a] Focus chain UO [auth a] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VG [auth a] Focus chain VI [auth a] Focus chain VJ [auth a] Focus chain VN [auth a] Focus chain WF [auth a] Focus chain WG [auth a] Focus chain WL [auth a] Focus chain WO [auth a] Focus chain WT [auth c] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain XF [auth a] Focus chain XG [auth a] Focus chain XI [auth a] Focus chain XJ [auth a] Focus chain XN [auth a] Focus chain XO [auth a] Focus chain YC [auth A] Focus chain YF [auth a] Focus chain YG [auth a] Focus chain YJ [auth a] Focus chain YO [auth a] Focus chain YQ [auth a] Focus chain ZC [auth A] Focus chain ZF [auth a] Focus chain ZJ [auth a] Focus chain ZK [auth a] Interactions & Density Focus chain AD [auth A] Focus chain AF [auth A] Focus chain AJ [auth a] Focus chain AK [auth a] Focus chain AL [auth a] Focus chain AP [auth a] Focus chain BE [auth A] Focus chain BG [auth a] Focus chain BH [auth a] Focus chain BK [auth a] Focus chain BP [auth a] Focus chain CG [auth a] Focus chain CT [auth a] Focus chain DC [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain DG [auth a] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain EG [auth a] Focus chain EP [auth a] Focus chain EQ [auth a] Focus chain ER [auth a] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FG [auth a] Focus chain FP [auth a] Focus chain FR [auth a] Focus chain FS [auth a] Focus chain GC [auth A] Focus chain GE [auth A] Focus chain GG [auth a] Focus chain GK [auth a] Focus chain GQ [auth a] Focus chain GR [auth a] Focus chain GS [auth a] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HG [auth a] Focus chain HL [auth a] Focus chain HO [auth a] Focus chain HP [auth a] Focus chain HR [auth a] Focus chain IC [auth A] Focus chain IG [auth a] Focus chain II [auth a] Focus chain IK [auth a] Focus chain IL [auth a] Focus chain IP [auth a] Focus chain IR [auth a] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JG [auth a] Focus chain JK [auth a] Focus chain JL [auth a] Focus chain JR [auth a] Focus chain KG [auth a] Focus chain KM [auth a] Focus chain KP [auth a] Focus chain KQ [auth a] Focus chain LB [auth A] Focus chain LD [auth A] Focus chain LG [auth a] Focus chain LJ [auth a] Focus chain LK [auth a] Focus chain LN [auth a] Focus chain LO [auth a] Focus chain LQ [auth a] Focus chain MC [auth A] Focus chain MG [auth a] Focus chain MJ [auth a] Focus chain MK [auth a] Focus chain MO [auth a] Focus chain MR [auth a] Focus chain NG [auth a] Focus chain NI [auth a] Focus chain NJ [auth a] Focus chain NP [auth a] Focus chain NQ [auth a] Focus chain OD [auth A] Focus chain OG [auth a] Focus chain OJ [auth a] Focus chain OK [auth a] Focus chain OM [auth a] Focus chain OO [auth a] Focus chain OP [auth a] Focus chain OQ [auth a] Focus chain PB [auth A] Focus chain PF [auth A] Focus chain PK [auth a] Focus chain PL [auth a] Focus chain PO [auth a] Focus chain QC [auth A] Focus chain QF [auth A] Focus chain QJ [auth a] Focus chain QK [auth a] Focus chain QL [auth a] Focus chain QP [auth a] Focus chain QQ [auth a] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RK [auth a] Focus chain RL [auth a] Focus chain RP [auth a] Focus chain RQ [auth a] Focus chain SF [auth A] Focus chain SK [auth a] Focus chain SQ [auth a] Focus chain ST [auth b] Focus chain TG [auth a] Focus chain TH [auth a] Focus chain TO [auth a] Focus chain TQ [auth a] Focus chain UC [auth A] Focus chain UG [auth a] Focus chain UJ [auth a] Focus chain UO [auth a] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VG [auth a] Focus chain VI [auth a] Focus chain VJ [auth a] Focus chain VN [auth a] Focus chain WF [auth a] Focus chain WG [auth a] Focus chain WL [auth a] Focus chain WO [auth a] Focus chain WT [auth c] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain XF [auth a] Focus chain XG [auth a] Focus chain XI [auth a] Focus chain XJ [auth a] Focus chain XN [auth a] Focus chain XO [auth a] Focus chain YC [auth A] Focus chain YF [auth a] Focus chain YG [auth a] Focus chain YJ [auth a] Focus chain YO [auth a] Focus chain YQ [auth a] Focus chain ZC [auth A] Focus chain ZF [auth a] Focus chain ZJ [auth a] Focus chain ZK [auth a]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain AC [auth A] SDF format, chain AE [auth A] SDF format, chain AH [auth a] SDF format, chain AI [auth a] SDF format, chain AN [auth a] SDF format, chain AO [auth a] SDF format, chain AR [auth a] SDF format, chain AS [auth a] SDF format, chain AT [auth a] SDF format, chain BC [auth A] SDF format, chain BD [auth A] SDF format, chain BF [auth A] SDF format, chain BI [auth a] SDF format, chain BJ [auth a] SDF format, chain BL [auth a] SDF format, chain BN [auth a] SDF format, chain BO [auth a] SDF format, chain BQ [auth a] SDF format, chain BR [auth a] SDF format, chain BS [auth a] SDF format, chain BT [auth a] SDF format, chain CC [auth A] SDF format, chain CE [auth A] SDF format, chain CF [auth A] SDF format, chain CH [auth a] SDF format, chain CI [auth a] SDF format, chain CJ [auth a] SDF format, chain CK [auth a] SDF format, chain CL [auth a] SDF format, chain CM [auth a] SDF format, chain CN [auth a] SDF format, chain CO [auth a] SDF format, chain CP [auth a] SDF format, chain CR [auth a] SDF format, chain CS [auth a] SDF format, chain DB [auth A] SDF format, chain DD [auth A] SDF format, chain DH [auth a] SDF format, chain DJ [auth a] SDF format, chain DK [auth a] SDF format, chain DL [auth a] SDF format, chain DM [auth a] SDF format, chain DN [auth a] SDF format, chain DO [auth a] SDF format, chain DP [auth a] SDF format, chain DQ [auth a] SDF format, chain DR [auth a] SDF format, chain DS [auth a] SDF format, chain DT [auth a] SDF format, chain ED [auth A] SDF format, chain EE [auth A] SDF format, chain EH [auth a] SDF format, chain EI [auth a] SDF format, chain EJ [auth a] SDF format, chain EK [auth a] SDF format, chain EL [auth a] SDF format, chain EM [auth a] SDF format, chain EN [auth a] SDF format, chain EO [auth a] SDF format, chain ES [auth a] SDF format, chain ET [auth a] SDF format, chain FB [auth A] SDF format, chain FC [auth A] SDF format, chain FF [auth A] SDF format, chain FH [auth a] SDF format, chain FI [auth a] SDF format, chain FJ [auth a] SDF format, chain FK [auth a] SDF format, chain FL [auth a] SDF format, chain FM [auth a] SDF format, chain FN [auth a] SDF format, chain FO [auth a] SDF format, chain FQ [auth a] SDF format, chain FT [auth a] SDF format, chain GB [auth A] SDF format, chain GD [auth A] SDF format, chain GF [auth A] SDF format, chain GH [auth a] SDF format, chain GI [auth a] SDF format, chain GJ [auth a] SDF format, chain GL [auth a] SDF format, chain GM [auth a] SDF format, chain GN [auth a] SDF format, chain GO [auth a] SDF format, chain GP [auth a] SDF format, chain GT [auth a] SDF format, chain HB [auth A] SDF format, chain HE [auth A] SDF format, chain HF [auth A] SDF format, chain HH [auth a] SDF format, chain HI [auth a] SDF format, chain HJ [auth a] SDF format, chain HK [auth a] SDF format, chain HM [auth a] SDF format, chain HQ [auth a] SDF format, chain HS [auth a] SDF format, chain HT [auth a] SDF format, chain IB [auth A] SDF format, chain ID [auth A] SDF format, chain IE [auth A] SDF format, chain IF [auth A] SDF format, chain IH [auth a] SDF format, chain IJ [auth a] SDF format, chain IM [auth a] SDF format, chain IN [auth a] SDF format, chain IO [auth a] SDF format, chain IQ [auth a] SDF format, chain IS [auth a] SDF format, chain IT [auth a] SDF format, chain JE [auth A] SDF format, chain JF [auth A] SDF format, chain JH [auth a] SDF format, chain JI [auth a] SDF format, chain JJ [auth a] SDF format, chain JM [auth a] SDF format, chain JN [auth a] SDF format, chain JO [auth a] SDF format, chain JP [auth a] SDF format, chain JQ [auth a] SDF format, chain JS [auth a] SDF format, chain JT [auth a] SDF format, chain KB [auth A] SDF format, chain KC [auth A] SDF format, chain KD [auth A] SDF format, chain KE [auth A] SDF format, chain KF [auth A] SDF format, chain KH [auth a] SDF format, chain KI [auth a] SDF format, chain KK [auth a] SDF format, chain KL [auth a] SDF format, chain KN [auth a] SDF format, chain KO [auth a] SDF format, chain KR [auth a] SDF format, chain KS [auth a] SDF format, chain KT [auth a] SDF format, chain LE [auth A] SDF format, chain LF [auth A] SDF format, chain LH [auth a] SDF format, chain LI [auth a] SDF format, chain LL [auth a] SDF format, chain LM [auth a] SDF format, chain LP [auth a] SDF format, chain LR [auth a] SDF format, chain LS [auth a] SDF format, chain LT [auth a] SDF format, chain MB [auth A] SDF format, chain MD [auth A] SDF format, chain ME [auth A] SDF format, chain MF [auth A] SDF format, chain MH [auth a] SDF format, chain MI [auth a] SDF format, chain ML [auth a] SDF format, chain MM [auth a] SDF format, chain MN [auth a] SDF format, chain MP [auth a] SDF format, chain MQ [auth a] SDF format, chain MS [auth a] SDF format, chain MT [auth a] SDF format, chain NB [auth A] SDF format, chain NC [auth A] SDF format, chain ND [auth A] SDF format, chain NE [auth A] SDF format, chain NF [auth A] SDF format, chain NH [auth a] SDF format, chain NK [auth a] SDF format, chain NL [auth a] SDF format, chain NM [auth a] SDF format, chain NN [auth a] SDF format, chain NO [auth a] SDF format, chain NR [auth a] SDF format, chain NS [auth a] SDF format, chain NT [auth a] SDF format, chain OB [auth A] SDF format, chain OC [auth A] SDF format, chain OE [auth A] SDF format, chain OF [auth A] SDF format, chain OH [auth a] SDF format, chain OI [auth a] SDF format, chain OL [auth a] SDF format, chain ON [auth a] SDF format, chain OR [auth a] SDF format, chain OS [auth a] SDF format, chain OT [auth a] SDF format, chain PC [auth A] SDF format, chain PD [auth A] SDF format, chain PE [auth A] SDF format, chain PG [auth a] SDF format, chain PH [auth a] SDF format, chain PI [auth a] SDF format, chain PJ [auth a] SDF format, chain PM [auth a] SDF format, chain PP [auth a] SDF format, chain PQ [auth a] SDF format, chain PR [auth a] SDF format, chain PS [auth a] SDF format, chain PT [auth a] SDF format, chain QB [auth A] SDF format, chain QD [auth A] SDF format, chain QE [auth A] SDF format, chain QG [auth a] SDF format, chain QH [auth a] SDF format, chain QI [auth a] SDF format, chain QM [auth a] SDF format, chain QN [auth a] SDF format, chain QO [auth a] SDF format, chain QR [auth a] SDF format, chain QS [auth a] SDF format, chain QT [auth b] SDF format, chain RB [auth A] SDF format, chain RE [auth A] SDF format, chain RF [auth A] SDF format, chain RG [auth a] SDF format, chain RH [auth a] SDF format, chain RI [auth a] SDF format, chain RJ [auth a] SDF format, chain RM [auth a] SDF format, chain RN [auth a] SDF format, chain RO [auth a] SDF format, chain RS [auth a] SDF format, chain RT [auth b] SDF format, chain SB [auth A] SDF format, chain SC [auth A] SDF format, chain SD [auth A] SDF format, chain SG [auth a] SDF format, chain SH [auth a] SDF format, chain SI [auth a] SDF format, chain SJ [auth a] SDF format, chain SL [auth a] SDF format, chain SM [auth a] SDF format, chain SN [auth a] SDF format, chain SO [auth a] SDF format, chain SP [auth a] SDF format, chain SR [auth a] SDF format, chain SS [auth a] SDF format, chain TC [auth A] SDF format, chain TD [auth A] SDF format, chain TF [auth A] SDF format, chain TI [auth a] SDF format, chain TJ [auth a] SDF format, chain TK [auth a] SDF format, chain TL [auth a] SDF format, chain TM [auth a] SDF format, chain TN [auth a] SDF format, chain TP [auth a] SDF format, chain TR [auth a] SDF format, chain TS [auth a] SDF format, chain TT [auth b] SDF format, chain UB [auth A] SDF format, chain UD [auth A] SDF format, chain UE [auth A] SDF format, chain UF [auth A] SDF format, chain UH [auth a] SDF format, chain UI [auth a] SDF format, chain UK [auth a] SDF format, chain UL [auth a] SDF format, chain UM [auth a] SDF format, chain UN [auth a] SDF format, chain UP [auth a] SDF format, chain UQ [auth a] SDF format, chain UR [auth a] SDF format, chain US [auth a] SDF format, chain VD [auth A] SDF format, chain VE [auth A] SDF format, chain VF [auth A] SDF format, chain VH [auth a] SDF format, chain VK [auth a] SDF format, chain VL [auth a] SDF format, chain VM [auth a] SDF format, chain VO [auth a] SDF format, chain VP [auth a] SDF format, chain VQ [auth a] SDF format, chain VR [auth a] SDF format, chain VS [auth a] SDF format, chain VT [auth b] SDF format, chain WB [auth A] SDF format, chain WC [auth A] SDF format, chain WD [auth A] SDF format, chain WE [auth A] SDF format, chain WH [auth a] SDF format, chain WI [auth a] SDF format, chain WJ [auth a] SDF format, chain WK [auth a] SDF format, chain WM [auth a] SDF format, chain WN [auth a] SDF format, chain WP [auth a] SDF format, chain WQ [auth a] SDF format, chain WR [auth a] SDF format, chain WS [auth a] SDF format, chain XB [auth A] SDF format, chain XH [auth a] SDF format, chain XK [auth a] SDF format, chain XL [auth a] SDF format, chain XM [auth a] SDF format, chain XP [auth a] SDF format, chain XQ [auth a] SDF format, chain XR [auth a] SDF format, chain XS [auth a] SDF format, chain XT [auth p] SDF format, chain YB [auth A] SDF format, chain YD [auth A] SDF format, chain YE [auth A] SDF format, chain YH [auth a] SDF format, chain YI [auth a] SDF format, chain YK [auth a] SDF format, chain YL [auth a] SDF format, chain YM [auth a] SDF format, chain YN [auth a] SDF format, chain YP [auth a] SDF format, chain YR [auth a] SDF format, chain YS [auth a] SDF format, chain ZB [auth A] SDF format, chain ZD [auth A] SDF format, chain ZE [auth A] SDF format, chain ZG [auth a] SDF format, chain ZH [auth a] SDF format, chain ZI [auth a] SDF format, chain ZL [auth a] SDF format, chain ZN [auth a] SDF format, chain ZO [auth a] SDF format, chain ZP [auth a] SDF format, chain ZR [auth a] SDF format, chain ZS [auth a] SDF format, chain ZQ [auth a] SDF format, chain ZM [auth a] SDF format, chain YT [auth p] SDF format, chain UT [auth b] SDF format, chain TE [auth A] SDF format, chain TB [auth A] SDF format, chain SE [auth A] SDF format, chain RR [auth a] SDF format, chain PN [auth a] SDF format, chain KJ [auth a] SDF format, chain HN [auth a] SDF format, chain EF [auth A] SDF format, chain DI [auth a] SDF format, chain CQ [auth a] SDF format, chain CD [auth A] SDF format, chain BM [auth a] SDF format, chain AQ [auth a] SDF format, chain AM [auth a] MOL2 format, chain AC [auth A] MOL2 format, chain AE [auth A] MOL2 format, chain AH [auth a] MOL2 format, chain AI [auth a] MOL2 format, chain AN [auth a] MOL2 format, chain AO [auth a] MOL2 format, chain AR [auth a] MOL2 format, chain AS [auth a] MOL2 format, chain AT [auth a] MOL2 format, chain BC [auth A] MOL2 format, chain BD [auth A] MOL2 format, chain BF [auth A] MOL2 format, chain BI [auth a] MOL2 format, chain BJ [auth a] MOL2 format, chain BL [auth a] MOL2 format, chain BN [auth a] MOL2 format, chain BO [auth a] MOL2 format, chain BQ [auth a] MOL2 format, chain BR [auth a] MOL2 format, chain BS [auth a] MOL2 format, chain BT [auth a] MOL2 format, chain CC [auth A] MOL2 format, chain CE [auth A] MOL2 format, chain CF [auth A] MOL2 format, chain CH [auth a] MOL2 format, chain CI [auth a] MOL2 format, chain CJ [auth a] MOL2 format, chain CK [auth a] MOL2 format, chain CL [auth a] MOL2 format, chain CM [auth a] MOL2 format, chain CN [auth a] MOL2 format, chain CO [auth a] MOL2 format, chain CP [auth a] MOL2 format, chain CR [auth a] MOL2 format, chain CS [auth a] MOL2 format, chain DB [auth A] MOL2 format, chain DD [auth A] MOL2 format, chain DH [auth a] MOL2 format, chain DJ [auth a] MOL2 format, chain DK [auth a] MOL2 format, chain DL [auth a] MOL2 format, chain DM [auth a] MOL2 format, chain DN [auth a] MOL2 format, chain DO [auth a] MOL2 format, chain DP [auth a] MOL2 format, chain DQ [auth a] MOL2 format, chain DR [auth a] MOL2 format, chain DS [auth a] MOL2 format, chain DT [auth a] MOL2 format, chain ED [auth A] MOL2 format, chain EE [auth A] MOL2 format, chain EH [auth a] MOL2 format, chain EI [auth a] MOL2 format, chain EJ [auth a] MOL2 format, chain EK [auth a] MOL2 format, chain EL [auth a] MOL2 format, chain EM [auth a] MOL2 format, chain EN [auth a] MOL2 format, chain EO [auth a] MOL2 format, chain ES [auth a] MOL2 format, chain ET [auth a] MOL2 format, chain FB [auth A] MOL2 format, chain FC [auth A] MOL2 format, chain FF [auth A] MOL2 format, chain FH [auth a] MOL2 format, chain FI [auth a] MOL2 format, chain FJ [auth a] MOL2 format, chain FK [auth a] MOL2 format, chain FL [auth a] MOL2 format, chain FM [auth a] MOL2 format, chain FN [auth a] MOL2 format, chain FO [auth a] MOL2 format, chain FQ [auth a] MOL2 format, chain FT [auth a] MOL2 format, chain GB [auth A] MOL2 format, chain GD [auth A] MOL2 format, chain GF [auth A] MOL2 format, chain GH [auth a] MOL2 format, chain GI [auth a] MOL2 format, chain GJ [auth a] MOL2 format, chain GL [auth a] MOL2 format, chain GM [auth a] MOL2 format, chain GN [auth a] MOL2 format, chain GO [auth a] MOL2 format, chain GP [auth a] MOL2 format, chain GT [auth a] MOL2 format, chain HB [auth A] MOL2 format, chain HE [auth A] MOL2 format, chain HF [auth A] MOL2 format, chain HH [auth a] MOL2 format, chain HI [auth a] MOL2 format, chain HJ [auth a] MOL2 format, chain HK [auth a] MOL2 format, chain HM [auth a] MOL2 format, chain HQ [auth a] MOL2 format, chain HS [auth a] MOL2 format, chain HT [auth a] MOL2 format, chain IB [auth A] MOL2 format, chain ID [auth A] MOL2 format, chain IE [auth A] MOL2 format, chain IF [auth A] MOL2 format, chain IH [auth a] MOL2 format, chain IJ [auth a] MOL2 format, chain IM [auth a] MOL2 format, chain IN [auth a] MOL2 format, chain IO [auth a] MOL2 format, chain IQ [auth a] MOL2 format, chain IS [auth a] MOL2 format, chain IT [auth a] MOL2 format, chain JE [auth A] MOL2 format, chain JF [auth A] MOL2 format, chain JH [auth a] MOL2 format, chain JI [auth a] MOL2 format, chain JJ [auth a] MOL2 format, chain JM [auth a] MOL2 format, chain JN [auth a] MOL2 format, chain JO [auth a] MOL2 format, chain JP [auth a] MOL2 format, chain JQ [auth a] MOL2 format, chain JS [auth a] MOL2 format, chain JT [auth a] MOL2 format, chain KB [auth A] MOL2 format, chain KC [auth A] MOL2 format, chain KD [auth A] MOL2 format, chain KE [auth A] MOL2 format, chain KF [auth A] MOL2 format, chain KH [auth a] MOL2 format, chain KI [auth a] MOL2 format, chain KK [auth a] MOL2 format, chain KL [auth a] MOL2 format, chain KN [auth a] MOL2 format, chain KO [auth a] MOL2 format, chain KR [auth a] MOL2 format, chain KS [auth a] MOL2 format, chain KT [auth a] MOL2 format, chain LE [auth A] MOL2 format, chain LF [auth A] MOL2 format, chain LH [auth a] MOL2 format, chain LI [auth a] MOL2 format, chain LL [auth a] MOL2 format, chain LM [auth a] MOL2 format, chain LP [auth a] MOL2 format, chain LR [auth a] MOL2 format, chain LS [auth a] MOL2 format, chain LT [auth a] MOL2 format, chain MB [auth A] MOL2 format, chain MD [auth A] MOL2 format, chain ME [auth A] MOL2 format, chain MF [auth A] MOL2 format, chain MH [auth a] MOL2 format, chain MI [auth a] MOL2 format, chain ML [auth a] MOL2 format, chain MM [auth a] MOL2 format, chain MN [auth a] MOL2 format, chain MP [auth a] MOL2 format, chain MQ [auth a] MOL2 format, chain MS [auth a] MOL2 format, chain MT [auth a] MOL2 format, chain NB [auth A] MOL2 format, chain NC [auth A] MOL2 format, chain ND [auth A] MOL2 format, chain NE [auth A] MOL2 format, chain NF [auth A] MOL2 format, chain NH [auth a] MOL2 format, chain NK [auth a] MOL2 format, chain NL [auth a] MOL2 format, chain NM [auth a] MOL2 format, chain NN [auth a] MOL2 format, chain NO [auth a] MOL2 format, chain NR [auth a] MOL2 format, chain NS [auth a] MOL2 format, chain NT [auth a] MOL2 format, chain OB [auth A] MOL2 format, chain OC [auth A] MOL2 format, chain OE [auth A] MOL2 format, chain OF [auth A] MOL2 format, chain OH [auth a] MOL2 format, chain OI [auth a] MOL2 format, chain OL [auth a] MOL2 format, chain ON [auth a] MOL2 format, chain OR [auth a] MOL2 format, chain OS [auth a] MOL2 format, chain OT [auth a] MOL2 format, chain PC [auth A] MOL2 format, chain PD [auth A] MOL2 format, chain PE [auth A] MOL2 format, chain PG [auth a] MOL2 format, chain PH [auth a] MOL2 format, chain PI [auth a] MOL2 format, chain PJ [auth a] MOL2 format, chain PM [auth a] MOL2 format, chain PP [auth a] MOL2 format, chain PQ [auth a] MOL2 format, chain PR [auth a] MOL2 format, chain PS [auth a] MOL2 format, chain PT [auth a] MOL2 format, chain QB [auth A] MOL2 format, chain QD [auth A] MOL2 format, chain QE [auth A] MOL2 format, chain QG [auth a] MOL2 format, chain QH [auth a] MOL2 format, chain QI [auth a] MOL2 format, chain QM [auth a] MOL2 format, chain QN [auth a] MOL2 format, chain QO [auth a] MOL2 format, chain QR [auth a] MOL2 format, chain QS [auth a] MOL2 format, chain QT [auth b] MOL2 format, chain RB [auth A] MOL2 format, chain RE [auth A] MOL2 format, chain RF [auth A] MOL2 format, chain RG [auth a] MOL2 format, chain RH [auth a] MOL2 format, chain RI [auth a] MOL2 format, chain RJ [auth a] MOL2 format, chain RM [auth a] MOL2 format, chain RN [auth a] MOL2 format, chain RO [auth a] MOL2 format, chain RS [auth a] MOL2 format, chain RT [auth b] MOL2 format, chain SB [auth A] MOL2 format, chain SC [auth A] MOL2 format, chain SD [auth A] MOL2 format, chain SG [auth a] MOL2 format, chain SH [auth a] MOL2 format, chain SI [auth a] MOL2 format, chain SJ [auth a] MOL2 format, chain SL [auth a] MOL2 format, chain SM [auth a] MOL2 format, chain SN [auth a] MOL2 format, chain SO [auth a] MOL2 format, chain SP [auth a] MOL2 format, chain SR [auth a] MOL2 format, chain SS [auth a] MOL2 format, chain TC [auth A] MOL2 format, chain TD [auth A] MOL2 format, chain TF [auth A] MOL2 format, chain TI [auth a] MOL2 format, chain TJ [auth a] MOL2 format, chain TK [auth a] MOL2 format, chain TL [auth a] MOL2 format, chain TM [auth a] MOL2 format, chain TN [auth a] MOL2 format, chain TP [auth a] MOL2 format, chain TR [auth a] MOL2 format, chain TS [auth a] MOL2 format, chain TT [auth b] MOL2 format, chain UB [auth A] MOL2 format, chain UD [auth A] MOL2 format, chain UE [auth A] MOL2 format, chain UF [auth A] MOL2 format, chain UH [auth a] MOL2 format, chain UI [auth a] MOL2 format, chain UK [auth a] MOL2 format, chain UL [auth a] MOL2 format, chain UM [auth a] MOL2 format, chain UN [auth a] MOL2 format, chain UP [auth a] MOL2 format, chain UQ [auth a] MOL2 format, chain UR [auth a] MOL2 format, chain US [auth a] MOL2 format, chain VD [auth A] MOL2 format, chain VE [auth A] MOL2 format, chain VF [auth A] MOL2 format, chain VH [auth a] MOL2 format, chain VK [auth a] MOL2 format, chain VL [auth a] MOL2 format, chain VM [auth a] MOL2 format, chain VO [auth a] MOL2 format, chain VP [auth a] MOL2 format, chain VQ [auth a] MOL2 format, chain VR [auth a] MOL2 format, chain VS [auth a] MOL2 format, chain VT [auth b] MOL2 format, chain WB [auth A] MOL2 format, chain WC [auth A] MOL2 format, chain WD [auth A] MOL2 format, chain WE [auth A] MOL2 format, chain WH [auth a] MOL2 format, chain WI [auth a] MOL2 format, chain WJ [auth a] MOL2 format, chain WK [auth a] MOL2 format, chain WM [auth a] MOL2 format, chain WN [auth a] MOL2 format, chain WP [auth a] MOL2 format, chain WQ [auth a] MOL2 format, chain WR [auth a] MOL2 format, chain WS [auth a] MOL2 format, chain XB [auth A] MOL2 format, chain XH [auth a] MOL2 format, chain XK [auth a] MOL2 format, chain XL [auth a] MOL2 format, chain XM [auth a] MOL2 format, chain XP [auth a] MOL2 format, chain XQ [auth a] MOL2 format, chain XR [auth a] MOL2 format, chain XS [auth a] MOL2 format, chain XT [auth p] MOL2 format, chain YB [auth A] MOL2 format, chain YD [auth A] MOL2 format, chain YE [auth A] MOL2 format, chain YH [auth a] MOL2 format, chain YI [auth a] MOL2 format, chain YK [auth a] MOL2 format, chain YL [auth a] MOL2 format, chain YM [auth a] MOL2 format, chain YN [auth a] MOL2 format, chain YP [auth a] MOL2 format, chain YR [auth a] MOL2 format, chain YS [auth a] MOL2 format, chain ZB [auth A] MOL2 format, chain ZD [auth A] MOL2 format, chain ZE [auth A] MOL2 format, chain ZG [auth a] MOL2 format, chain ZH [auth a] MOL2 format, chain ZI [auth a] MOL2 format, chain ZL [auth a] MOL2 format, chain ZN [auth a] MOL2 format, chain ZO [auth a] MOL2 format, chain ZP [auth a] MOL2 format, chain ZR [auth a] MOL2 format, chain ZS [auth a] MOL2 format, chain ZQ [auth a] MOL2 format, chain ZM [auth a] MOL2 format, chain YT [auth p] MOL2 format, chain UT [auth b] MOL2 format, chain TE [auth A] MOL2 format, chain TB [auth A] MOL2 format, chain SE [auth A] MOL2 format, chain RR [auth a] MOL2 format, chain PN [auth a] MOL2 format, chain KJ [auth a] MOL2 format, chain HN [auth a] MOL2 format, chain EF [auth A] MOL2 format, chain DI [auth a] MOL2 format, chain CQ [auth a] MOL2 format, chain CD [auth A] MOL2 format, chain BM [auth a] MOL2 format, chain AQ [auth a] MOL2 format, chain AM [auth a] mmCIF format, chain AC [auth A] mmCIF format, chain AE [auth A] mmCIF format, chain AH [auth a] mmCIF format, chain AI [auth a] mmCIF format, chain AN [auth a] mmCIF format, chain AO [auth a] mmCIF format, chain AR [auth a] mmCIF format, chain AS [auth a] mmCIF format, chain AT [auth a] mmCIF format, chain BC [auth A] mmCIF format, chain BD [auth A] mmCIF format, chain BF [auth A] mmCIF format, chain BI [auth a] mmCIF format, chain BJ [auth a] mmCIF format, chain BL [auth a] mmCIF format, chain BN [auth a] mmCIF format, chain BO [auth a] mmCIF format, chain BQ [auth a] mmCIF format, chain BR [auth a] mmCIF format, chain BS [auth a] mmCIF format, chain BT [auth a] mmCIF format, chain CC [auth A] mmCIF format, chain CE [auth A] mmCIF format, chain CF [auth A] mmCIF format, chain CH [auth a] mmCIF format, chain CI [auth a] mmCIF format, chain CJ [auth a] mmCIF format, chain CK [auth a] mmCIF format, chain CL [auth a] mmCIF format, chain CM [auth a] mmCIF format, chain CN [auth a] mmCIF format, chain CO [auth a] mmCIF format, chain CP [auth a] mmCIF format, chain CR [auth a] mmCIF format, chain CS [auth a] mmCIF format, chain DB [auth A] mmCIF format, chain DD [auth A] mmCIF format, chain DH [auth a] mmCIF format, chain DJ [auth a] mmCIF format, chain DK [auth a] mmCIF format, chain DL [auth a] mmCIF format, chain DM [auth a] mmCIF format, chain DN [auth a] mmCIF format, chain DO [auth a] mmCIF format, chain DP [auth a] mmCIF format, chain DQ [auth a] mmCIF format, chain DR [auth a] mmCIF format, chain DS [auth a] mmCIF format, chain DT [auth a] mmCIF format, chain ED [auth A] mmCIF format, chain EE [auth A] mmCIF format, chain EH [auth a] mmCIF format, chain EI [auth a] mmCIF format, chain EJ [auth a] mmCIF format, chain EK [auth a] mmCIF format, chain EL [auth a] mmCIF format, chain EM [auth a] mmCIF format, chain EN [auth a] mmCIF format, chain EO [auth a] mmCIF format, chain ES [auth a] mmCIF format, chain ET [auth a] mmCIF format, chain FB [auth A] mmCIF format, chain FC [auth A] mmCIF format, chain FF [auth A] mmCIF format, chain FH [auth a] mmCIF format, chain FI [auth a] mmCIF format, chain FJ [auth a] mmCIF format, chain FK [auth a] mmCIF format, chain FL [auth a] mmCIF format, chain FM [auth a] mmCIF format, chain FN [auth a] mmCIF format, chain FO [auth a] mmCIF format, chain FQ [auth a] mmCIF format, chain FT [auth a] mmCIF format, chain GB [auth A] mmCIF format, chain GD [auth A] mmCIF format, chain GF [auth A] mmCIF format, chain GH [auth a] mmCIF format, chain GI [auth a] mmCIF format, chain GJ [auth a] mmCIF format, chain GL [auth a] mmCIF format, chain GM [auth a] mmCIF format, chain GN [auth a] mmCIF format, chain GO [auth a] mmCIF format, chain GP [auth a] mmCIF format, chain GT [auth a] mmCIF format, chain HB [auth A] mmCIF format, chain HE [auth A] mmCIF format, chain HF [auth A] mmCIF format, chain HH [auth a] mmCIF format, chain HI [auth a] mmCIF format, chain HJ [auth a] mmCIF format, chain HK [auth a] mmCIF format, chain HM [auth a] mmCIF format, chain HQ [auth a] mmCIF format, chain HS [auth a] mmCIF format, chain HT [auth a] mmCIF format, chain IB [auth A] mmCIF format, chain ID [auth A] mmCIF format, chain IE [auth A] mmCIF format, chain IF [auth A] mmCIF format, chain IH [auth a] mmCIF format, chain IJ [auth a] mmCIF format, chain IM [auth a] mmCIF format, chain IN [auth a] mmCIF format, chain IO [auth a] mmCIF format, chain IQ [auth a] mmCIF format, chain IS [auth a] mmCIF format, chain IT [auth a] mmCIF format, chain JE [auth A] mmCIF format, chain JF [auth A] mmCIF format, chain JH [auth a] mmCIF format, chain JI [auth a] mmCIF format, chain JJ [auth a] mmCIF format, chain JM [auth a] mmCIF format, chain JN [auth a] mmCIF format, chain JO [auth a] mmCIF format, chain JP [auth a] mmCIF format, chain JQ [auth a] mmCIF format, chain JS [auth a] mmCIF format, chain JT [auth a] mmCIF format, chain KB [auth A] mmCIF format, chain KC [auth A] mmCIF format, chain KD [auth A] mmCIF format, chain KE [auth A] mmCIF format, chain KF [auth A] mmCIF format, chain KH [auth a] mmCIF format, chain KI [auth a] mmCIF format, chain KK [auth a] mmCIF format, chain KL [auth a] mmCIF format, chain KN [auth a] mmCIF format, chain KO [auth a] mmCIF format, chain KR [auth a] mmCIF format, chain KS [auth a] mmCIF format, chain KT [auth a] mmCIF format, chain LE [auth A] mmCIF format, chain LF [auth A] mmCIF format, chain LH [auth a] mmCIF format, chain LI [auth a] mmCIF format, chain LL [auth a] mmCIF format, chain LM [auth a] mmCIF format, chain LP [auth a] mmCIF format, chain LR [auth a] mmCIF format, chain LS [auth a] mmCIF format, chain LT [auth a] mmCIF format, chain MB [auth A] mmCIF format, chain MD [auth A] mmCIF format, chain ME [auth A] mmCIF format, chain MF [auth A] mmCIF format, chain MH [auth a] mmCIF format, chain MI [auth a] mmCIF format, chain ML [auth a] mmCIF format, chain MM [auth a] mmCIF format, chain MN [auth a] mmCIF format, chain MP [auth a] mmCIF format, chain MQ [auth a] mmCIF format, chain MS [auth a] mmCIF format, chain MT [auth a] mmCIF format, chain NB [auth A] mmCIF format, chain NC [auth A] mmCIF format, chain ND [auth A] mmCIF format, chain NE [auth A] mmCIF format, chain NF [auth A] mmCIF format, chain NH [auth a] mmCIF format, chain NK [auth a] mmCIF format, chain NL [auth a] mmCIF format, chain NM [auth a] mmCIF format, chain NN [auth a] mmCIF format, chain NO [auth a] mmCIF format, chain NR [auth a] mmCIF format, chain NS [auth a] mmCIF format, chain NT [auth a] mmCIF format, chain OB [auth A] mmCIF format, chain OC [auth A] mmCIF format, chain OE [auth A] mmCIF format, chain OF [auth A] mmCIF format, chain OH [auth a] mmCIF format, chain OI [auth a] mmCIF format, chain OL [auth a] mmCIF format, chain ON [auth a] mmCIF format, chain OR [auth a] mmCIF format, chain OS [auth a] mmCIF format, chain OT [auth a] mmCIF format, chain PC [auth A] mmCIF format, chain PD [auth A] mmCIF format, chain PE [auth A] mmCIF format, chain PG [auth a] mmCIF format, chain PH [auth a] mmCIF format, chain PI [auth a] mmCIF format, chain PJ [auth a] mmCIF format, chain PM [auth a] mmCIF format, chain PP [auth a] mmCIF format, chain PQ [auth a] mmCIF format, chain PR [auth a] mmCIF format, chain PS [auth a] mmCIF format, chain PT [auth a] mmCIF format, chain QB [auth A] mmCIF format, chain QD [auth A] mmCIF format, chain QE [auth A] mmCIF format, chain QG [auth a] mmCIF format, chain QH [auth a] mmCIF format, chain QI [auth a] mmCIF format, chain QM [auth a] mmCIF format, chain QN [auth a] mmCIF format, chain QO [auth a] mmCIF format, chain QR [auth a] mmCIF format, chain QS [auth a] mmCIF format, chain QT [auth b] mmCIF format, chain RB [auth A] mmCIF format, chain RE [auth A] mmCIF format, chain RF [auth A] mmCIF format, chain RG [auth a] mmCIF format, chain RH [auth a] mmCIF format, chain RI [auth a] mmCIF format, chain RJ [auth a] mmCIF format, chain RM [auth a] mmCIF format, chain RN [auth a] mmCIF format, chain RO [auth a] mmCIF format, chain RS [auth a] mmCIF format, chain RT [auth b] mmCIF format, chain SB [auth A] mmCIF format, chain SC [auth A] mmCIF format, chain SD [auth A] mmCIF format, chain SG [auth a] mmCIF format, chain SH [auth a] mmCIF format, chain SI [auth a] mmCIF format, chain SJ [auth a] mmCIF format, chain SL [auth a] mmCIF format, chain SM [auth a] mmCIF format, chain SN [auth a] mmCIF format, chain SO [auth a] mmCIF format, chain SP [auth a] mmCIF format, chain SR [auth a] mmCIF format, chain SS [auth a] mmCIF format, chain TC [auth A] mmCIF format, chain TD [auth A] mmCIF format, chain TF [auth A] mmCIF format, chain TI [auth a] mmCIF format, chain TJ [auth a] mmCIF format, chain TK [auth a] mmCIF format, chain TL [auth a] mmCIF format, chain TM [auth a] mmCIF format, chain TN [auth a] mmCIF format, chain TP [auth a] mmCIF format, chain TR [auth a] mmCIF format, chain TS [auth a] mmCIF format, chain TT [auth b] mmCIF format, chain UB [auth A] mmCIF format, chain UD [auth A] mmCIF format, chain UE [auth A] mmCIF format, chain UF [auth A] mmCIF format, chain UH [auth a] mmCIF format, chain UI [auth a] mmCIF format, chain UK [auth a] mmCIF format, chain UL [auth a] mmCIF format, chain UM [auth a] mmCIF format, chain UN [auth a] mmCIF format, chain UP [auth a] mmCIF format, chain UQ [auth a] mmCIF format, chain UR [auth a] mmCIF format, chain US [auth a] mmCIF format, chain VD [auth A] mmCIF format, chain VE [auth A] mmCIF format, chain VF [auth A] mmCIF format, chain VH [auth a] mmCIF format, chain VK [auth a] mmCIF format, chain VL [auth a] mmCIF format, chain VM [auth a] mmCIF format, chain VO [auth a] mmCIF format, chain VP [auth a] mmCIF format, chain VQ [auth a] mmCIF format, chain VR [auth a] mmCIF format, chain VS [auth a] mmCIF format, chain VT [auth b] mmCIF format, chain WB [auth A] mmCIF format, chain WC [auth A] mmCIF format, chain WD [auth A] mmCIF format, chain WE [auth A] mmCIF format, chain WH [auth a] mmCIF format, chain WI [auth a] mmCIF format, chain WJ [auth a] mmCIF format, chain WK [auth a] mmCIF format, chain WM [auth a] mmCIF format, chain WN [auth a] mmCIF format, chain WP [auth a] mmCIF format, chain WQ [auth a] mmCIF format, chain WR [auth a] mmCIF format, chain WS [auth a] mmCIF format, chain XB [auth A] mmCIF format, chain XH [auth a] mmCIF format, chain XK [auth a] mmCIF format, chain XL [auth a] mmCIF format, chain XM [auth a] mmCIF format, chain XP [auth a] mmCIF format, chain XQ [auth a] mmCIF format, chain XR [auth a] mmCIF format, chain XS [auth a] mmCIF format, chain XT [auth p] mmCIF format, chain YB [auth A] mmCIF format, chain YD [auth A] mmCIF format, chain YE [auth A] mmCIF format, chain YH [auth a] mmCIF format, chain YI [auth a] mmCIF format, chain YK [auth a] mmCIF format, chain YL [auth a] mmCIF format, chain YM [auth a] mmCIF format, chain YN [auth a] mmCIF format, chain YP [auth a] mmCIF format, chain YR [auth a] mmCIF format, chain YS [auth a] mmCIF format, chain ZB [auth A] mmCIF format, chain ZD [auth A] mmCIF format, chain ZE [auth A] mmCIF format, chain ZG [auth a] mmCIF format, chain ZH [auth a] mmCIF format, chain ZI [auth a] mmCIF format, chain ZL [auth a] mmCIF format, chain ZN [auth a] mmCIF format, chain ZO [auth a] mmCIF format, chain ZP [auth a] mmCIF format, chain ZR [auth a] mmCIF format, chain ZS [auth a] mmCIF format, chain ZQ [auth a] mmCIF format, chain ZM [auth a] mmCIF format, chain YT [auth p] mmCIF format, chain UT [auth b] mmCIF format, chain TE [auth A] mmCIF format, chain TB [auth A] mmCIF format, chain SE [auth A] mmCIF format, chain RR [auth a] mmCIF format, chain PN [auth a] mmCIF format, chain KJ [auth a] mmCIF format, chain HN [auth a] mmCIF format, chain EF [auth A] mmCIF format, chain DI [auth a] mmCIF format, chain CQ [auth a] mmCIF format, chain CD [auth A] mmCIF format, chain BM [auth a] mmCIF format, chain AQ [auth a] mmCIF format, chain AM [auth a]	AC [auth A] AE [auth A] AH [auth a] AI [auth a] AM [auth a] AC [auth A], AE [auth A], AH [auth a], AI [auth a], AM [auth a], AN [auth a], AO [auth a], AQ [auth a], AR [auth a], AS [auth a], AT [auth a], BC [auth A], BD [auth A], BF [auth A], BI [auth a], BJ [auth a], BL [auth a], BM [auth a], BN [auth a], BO [auth a], BQ [auth a], BR [auth a], BS [auth a], BT [auth a], CC [auth A], CD [auth A], CE [auth A], CF [auth A], CH [auth a], CI [auth a], CJ [auth a], CK [auth a], CL [auth a], CM [auth a], CN [auth a], CO [auth a], CP [auth a], CQ [auth a], CR [auth a], CS [auth a], DB [auth A], DD [auth A], DH [auth a], DI [auth a], DJ [auth a], DK [auth a], DL [auth a], DM [auth a], DN [auth a], DO [auth a], DP [auth a], DQ [auth a], DR [auth a], DS [auth a], DT [auth a], ED [auth A], EE [auth A], EF [auth A], EH [auth a], EI [auth a], EJ [auth a], EK [auth a], EL [auth a], EM [auth a], EN [auth a], EO [auth a], ES [auth a], ET [auth a], FB [auth A], FC [auth A], FF [auth A], FH [auth a], FI [auth a], FJ [auth a], FK [auth a], FL [auth a], FM [auth a], FN [auth a], FO [auth a], FQ [auth a], FT [auth a], GB [auth A], GD [auth A], GF [auth A], GH [auth a], GI [auth a], GJ [auth a], GL [auth a], GM [auth a], GN [auth a], GO [auth a], GP [auth a], GT [auth a], HB [auth A], HE [auth A], HF [auth A], HH [auth a], HI [auth a], HJ [auth a], HK [auth a], HM [auth a], HN [auth a], HQ [auth a], HS [auth a], HT [auth a], IB [auth A], ID [auth A], IE [auth A], IF [auth A], IH [auth a], IJ [auth a], IM [auth a], IN [auth a], IO [auth a], IQ [auth a], IS [auth a], IT [auth a], JE [auth A], JF [auth A], JH [auth a], JI [auth a], JJ [auth a], JM [auth a], JN [auth a], JO [auth a], JP [auth a], JQ [auth a], JS [auth a], JT [auth a], KB [auth A], KC [auth A], KD [auth A], KE [auth A], KF [auth A], KH [auth a], KI [auth a], KJ [auth a], KK [auth a], KL [auth a], KN [auth a], KO [auth a], KR [auth a], KS [auth a], KT [auth a], LE [auth A], LF [auth A], LH [auth a], LI [auth a], LL [auth a], LM [auth a], LP [auth a], LR [auth a], LS [auth a], LT [auth a], MB [auth A], MD [auth A], ME [auth A], MF [auth A], MH [auth a], MI [auth a], ML [auth a], MM [auth a], MN [auth a], MP [auth a], MQ [auth a], MS [auth a], MT [auth a], NB [auth A], NC [auth A], ND [auth A], NE [auth A], NF [auth A], NH [auth a], NK [auth a], NL [auth a], NM [auth a], NN [auth a], NO [auth a], NR [auth a], NS [auth a], NT [auth a], OB [auth A], OC [auth A], OE [auth A], OF [auth A], OH [auth a], OI [auth a], OL [auth a], ON [auth a], OR [auth a], OS [auth a], OT [auth a], PC [auth A], PD [auth A], PE [auth A], PG [auth a], PH [auth a], PI [auth a], PJ [auth a], PM [auth a], PN [auth a], PP [auth a], PQ [auth a], PR [auth a], PS [auth a], PT [auth a], QB [auth A], QD [auth A], QE [auth A], QG [auth a], QH [auth a], QI [auth a], QM [auth a], QN [auth a], QO [auth a], QR [auth a], QS [auth a], QT [auth b], RB [auth A], RE [auth A], RF [auth A], RG [auth a], RH [auth a], RI [auth a], RJ [auth a], RM [auth a], RN [auth a], RO [auth a], RR [auth a], RS [auth a], RT [auth b], SB [auth A], SC [auth A], SD [auth A], SE [auth A], SG [auth a], SH [auth a], SI [auth a], SJ [auth a], SL [auth a], SM [auth a], SN [auth a], SO [auth a], SP [auth a], SR [auth a], SS [auth a], TB [auth A], TC [auth A], TD [auth A], TE [auth A], TF [auth A], TI [auth a], TJ [auth a], TK [auth a], TL [auth a], TM [auth a], TN [auth a], TP [auth a], TR [auth a], TS [auth a], TT [auth b], UB [auth A], UD [auth A], UE [auth A], UF [auth A], UH [auth a], UI [auth a], UK [auth a], UL [auth a], UM [auth a], UN [auth a], UP [auth a], UQ [auth a], UR [auth a], US [auth a], UT [auth b], VD [auth A], VE [auth A], VF [auth A], VH [auth a], VK [auth a], VL [auth a], VM [auth a], VO [auth a], VP [auth a], VQ [auth a], VR [auth a], VS [auth a], VT [auth b], WB [auth A], WC [auth A], WD [auth A], WE [auth A], WH [auth a], WI [auth a], WJ [auth a], WK [auth a], WM [auth a], WN [auth a], WP [auth a], WQ [auth a], WR [auth a], WS [auth a], XB [auth A], XH [auth a], XK [auth a], XL [auth a], XM [auth a], XP [auth a], XQ [auth a], XR [auth a], XS [auth a], XT [auth p], YB [auth A], YD [auth A], YE [auth A], YH [auth a], YI [auth a], YK [auth a], YL [auth a], YM [auth a], YN [auth a], YP [auth a], YR [auth a], YS [auth a], YT [auth p], ZB [auth A], ZD [auth A], ZE [auth A], ZG [auth a], ZH [auth a], ZI [auth a], ZL [auth a], ZM [auth a], ZN [auth a], ZO [auth a], ZP [auth a], ZQ [auth a], ZR [auth a], ZS [auth a]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AC [auth A] Focus chain AE [auth A] Focus chain AH [auth a] Focus chain AI [auth a] Focus chain AM [auth a] Focus chain AN [auth a] Focus chain AO [auth a] Focus chain AQ [auth a] Focus chain AR [auth a] Focus chain AS [auth a] Focus chain AT [auth a] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BF [auth A] Focus chain BI [auth a] Focus chain BJ [auth a] Focus chain BL [auth a] Focus chain BM [auth a] Focus chain BN [auth a] Focus chain BO [auth a] Focus chain BQ [auth a] Focus chain BR [auth a] Focus chain BS [auth a] Focus chain BT [auth a] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain CH [auth a] Focus chain CI [auth a] Focus chain CJ [auth a] Focus chain CK [auth a] Focus chain CL [auth a] Focus chain CM [auth a] Focus chain CN [auth a] Focus chain CO [auth a] Focus chain CP [auth a] Focus chain CQ [auth a] Focus chain CR [auth a] Focus chain CS [auth a] Focus chain DB [auth A] Focus chain DD [auth A] Focus chain DH [auth a] Focus chain DI [auth a] Focus chain DJ [auth a] Focus chain DK [auth a] Focus chain DL [auth a] Focus chain DM [auth a] Focus chain DN [auth a] Focus chain DO [auth a] Focus chain DP [auth a] Focus chain DQ [auth a] Focus chain DR [auth a] Focus chain DS [auth a] Focus chain DT [auth a] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain EH [auth a] Focus chain EI [auth a] Focus chain EJ [auth a] Focus chain EK [auth a] Focus chain EL [auth a] Focus chain EM [auth a] Focus chain EN [auth a] Focus chain EO [auth a] Focus chain ES [auth a] Focus chain ET [auth a] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FF [auth A] Focus chain FH [auth a] Focus chain FI [auth a] Focus chain FJ [auth a] Focus chain FK [auth a] Focus chain FL [auth a] Focus chain FM [auth a] Focus chain FN [auth a] Focus chain FO [auth a] Focus chain FQ [auth a] Focus chain FT [auth a] Focus chain GB [auth A] Focus chain GD [auth A] Focus chain GF [auth A] Focus chain GH [auth a] Focus chain GI [auth a] Focus chain GJ [auth a] Focus chain GL [auth a] Focus chain GM [auth a] Focus chain GN [auth a] Focus chain GO [auth a] Focus chain GP [auth a] Focus chain GT [auth a] Focus chain HB [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain HH [auth a] Focus chain HI [auth a] Focus chain HJ [auth a] Focus chain HK [auth a] Focus chain HM [auth a] Focus chain HN [auth a] Focus chain HQ [auth a] Focus chain HS [auth a] Focus chain HT [auth a] Focus chain IB [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain IF [auth A] Focus chain IH [auth a] Focus chain IJ [auth a] Focus chain IM [auth a] Focus chain IN [auth a] Focus chain IO [auth a] Focus chain IQ [auth a] Focus chain IS [auth a] Focus chain IT [auth a] Focus chain JE [auth A] Focus chain JF [auth A] Focus chain JH [auth a] Focus chain JI [auth a] Focus chain JJ [auth a] Focus chain JM [auth a] Focus chain JN [auth a] Focus chain JO [auth a] Focus chain JP [auth a] Focus chain JQ [auth a] Focus chain JS [auth a] Focus chain JT [auth a] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain KF [auth A] Focus chain KH [auth a] Focus chain KI [auth a] Focus chain KJ [auth a] Focus chain KK [auth a] Focus chain KL [auth a] Focus chain KN [auth a] Focus chain KO [auth a] Focus chain KR [auth a] Focus chain KS [auth a] Focus chain KT [auth a] Focus chain LE [auth A] Focus chain LF [auth A] Focus chain LH [auth a] Focus chain LI [auth a] Focus chain LL [auth a] Focus chain LM [auth a] Focus chain LP [auth a] Focus chain LR [auth a] Focus chain LS [auth a] Focus chain LT [auth a] Focus chain MB [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth A] Focus chain MH [auth a] Focus chain MI [auth a] Focus chain ML [auth a] Focus chain MM [auth a] Focus chain MN [auth a] Focus chain MP [auth a] Focus chain MQ [auth a] Focus chain MS [auth a] Focus chain MT [auth a] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth A] Focus chain NH [auth a] Focus chain NK [auth a] Focus chain NL [auth a] Focus chain NM [auth a] Focus chain NN [auth a] Focus chain NO [auth a] Focus chain NR [auth a] Focus chain NS [auth a] Focus chain NT [auth a] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OE [auth A] Focus chain OF [auth A] Focus chain OH [auth a] Focus chain OI [auth a] Focus chain OL [auth a] Focus chain ON [auth a] Focus chain OR [auth a] Focus chain OS [auth a] Focus chain OT [auth a] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain PG [auth a] Focus chain PH [auth a] Focus chain PI [auth a] Focus chain PJ [auth a] Focus chain PM [auth a] Focus chain PN [auth a] Focus chain PP [auth a] Focus chain PQ [auth a] Focus chain PR [auth a] Focus chain PS [auth a] Focus chain PT [auth a] Focus chain QB [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain QG [auth a] Focus chain QH [auth a] Focus chain QI [auth a] Focus chain QM [auth a] Focus chain QN [auth a] Focus chain QO [auth a] Focus chain QR [auth a] Focus chain QS [auth a] Focus chain QT [auth b] Focus chain RB [auth A] Focus chain RE [auth A] Focus chain RF [auth A] Focus chain RG [auth a] Focus chain RH [auth a] Focus chain RI [auth a] Focus chain RJ [auth a] Focus chain RM [auth a] Focus chain RN [auth a] Focus chain RO [auth a] Focus chain RR [auth a] Focus chain RS [auth a] Focus chain RT [auth b] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain SG [auth a] Focus chain SH [auth a] Focus chain SI [auth a] Focus chain SJ [auth a] Focus chain SL [auth a] Focus chain SM [auth a] Focus chain SN [auth a] Focus chain SO [auth a] Focus chain SP [auth a] Focus chain SR [auth a] Focus chain SS [auth a] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain TF [auth A] Focus chain TI [auth a] Focus chain TJ [auth a] Focus chain TK [auth a] Focus chain TL [auth a] Focus chain TM [auth a] Focus chain TN [auth a] Focus chain TP [auth a] Focus chain TR [auth a] Focus chain TS [auth a] Focus chain TT [auth b] Focus chain UB [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain UF [auth A] Focus chain UH [auth a] Focus chain UI [auth a] Focus chain UK [auth a] Focus chain UL [auth a] Focus chain UM [auth a] Focus chain UN [auth a] Focus chain UP [auth a] Focus chain UQ [auth a] Focus chain UR [auth a] Focus chain US [auth a] Focus chain UT [auth b] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain VF [auth A] Focus chain VH [auth a] Focus chain VK [auth a] Focus chain VL [auth a] Focus chain VM [auth a] Focus chain VO [auth a] Focus chain VP [auth a] Focus chain VQ [auth a] Focus chain VR [auth a] Focus chain VS [auth a] Focus chain VT [auth b] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain WH [auth a] Focus chain WI [auth a] Focus chain WJ [auth a] Focus chain WK [auth a] Focus chain WM [auth a] Focus chain WN [auth a] Focus chain WP [auth a] Focus chain WQ [auth a] Focus chain WR [auth a] Focus chain WS [auth a] Focus chain XB [auth A] Focus chain XH [auth a] Focus chain XK [auth a] Focus chain XL [auth a] Focus chain XM [auth a] Focus chain XP [auth a] Focus chain XQ [auth a] Focus chain XR [auth a] Focus chain XS [auth a] Focus chain XT [auth p] Focus chain YB [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain YH [auth a] Focus chain YI [auth a] Focus chain YK [auth a] Focus chain YL [auth a] Focus chain YM [auth a] Focus chain YN [auth a] Focus chain YP [auth a] Focus chain YR [auth a] Focus chain YS [auth a] Focus chain YT [auth p] Focus chain ZB [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A] Focus chain ZG [auth a] Focus chain ZH [auth a] Focus chain ZI [auth a] Focus chain ZL [auth a] Focus chain ZM [auth a] Focus chain ZN [auth a] Focus chain ZO [auth a] Focus chain ZP [auth a] Focus chain ZQ [auth a] Focus chain ZR [auth a] Focus chain ZS [auth a] Interactions & Density Focus chain AC [auth A] Focus chain AE [auth A] Focus chain AH [auth a] Focus chain AI [auth a] Focus chain AM [auth a] Focus chain AN [auth a] Focus chain AO [auth a] Focus chain AQ [auth a] Focus chain AR [auth a] Focus chain AS [auth a] Focus chain AT [auth a] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BF [auth A] Focus chain BI [auth a] Focus chain BJ [auth a] Focus chain BL [auth a] Focus chain BM [auth a] Focus chain BN [auth a] Focus chain BO [auth a] Focus chain BQ [auth a] Focus chain BR [auth a] Focus chain BS [auth a] Focus chain BT [auth a] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain CH [auth a] Focus chain CI [auth a] Focus chain CJ [auth a] Focus chain CK [auth a] Focus chain CL [auth a] Focus chain CM [auth a] Focus chain CN [auth a] Focus chain CO [auth a] Focus chain CP [auth a] Focus chain CQ [auth a] Focus chain CR [auth a] Focus chain CS [auth a] Focus chain DB [auth A] Focus chain DD [auth A] Focus chain DH [auth a] Focus chain DI [auth a] Focus chain DJ [auth a] Focus chain DK [auth a] Focus chain DL [auth a] Focus chain DM [auth a] Focus chain DN [auth a] Focus chain DO [auth a] Focus chain DP [auth a] Focus chain DQ [auth a] Focus chain DR [auth a] Focus chain DS [auth a] Focus chain DT [auth a] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain EH [auth a] Focus chain EI [auth a] Focus chain EJ [auth a] Focus chain EK [auth a] Focus chain EL [auth a] Focus chain EM [auth a] Focus chain EN [auth a] Focus chain EO [auth a] Focus chain ES [auth a] Focus chain ET [auth a] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FF [auth A] Focus chain FH [auth a] Focus chain FI [auth a] Focus chain FJ [auth a] Focus chain FK [auth a] Focus chain FL [auth a] Focus chain FM [auth a] Focus chain FN [auth a] Focus chain FO [auth a] Focus chain FQ [auth a] Focus chain FT [auth a] Focus chain GB [auth A] Focus chain GD [auth A] Focus chain GF [auth A] Focus chain GH [auth a] Focus chain GI [auth a] Focus chain GJ [auth a] Focus chain GL [auth a] Focus chain GM [auth a] Focus chain GN [auth a] Focus chain GO [auth a] Focus chain GP [auth a] Focus chain GT [auth a] Focus chain HB [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain HH [auth a] Focus chain HI [auth a] Focus chain HJ [auth a] Focus chain HK [auth a] Focus chain HM [auth a] Focus chain HN [auth a] Focus chain HQ [auth a] Focus chain HS [auth a] Focus chain HT [auth a] Focus chain IB [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain IF [auth A] Focus chain IH [auth a] Focus chain IJ [auth a] Focus chain IM [auth a] Focus chain IN [auth a] Focus chain IO [auth a] Focus chain IQ [auth a] Focus chain IS [auth a] Focus chain IT [auth a] Focus chain JE [auth A] Focus chain JF [auth A] Focus chain JH [auth a] Focus chain JI [auth a] Focus chain JJ [auth a] Focus chain JM [auth a] Focus chain JN [auth a] Focus chain JO [auth a] Focus chain JP [auth a] Focus chain JQ [auth a] Focus chain JS [auth a] Focus chain JT [auth a] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain KF [auth A] Focus chain KH [auth a] Focus chain KI [auth a] Focus chain KJ [auth a] Focus chain KK [auth a] Focus chain KL [auth a] Focus chain KN [auth a] Focus chain KO [auth a] Focus chain KR [auth a] Focus chain KS [auth a] Focus chain KT [auth a] Focus chain LE [auth A] Focus chain LF [auth A] Focus chain LH [auth a] Focus chain LI [auth a] Focus chain LL [auth a] Focus chain LM [auth a] Focus chain LP [auth a] Focus chain LR [auth a] Focus chain LS [auth a] Focus chain LT [auth a] Focus chain MB [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth A] Focus chain MH [auth a] Focus chain MI [auth a] Focus chain ML [auth a] Focus chain MM [auth a] Focus chain MN [auth a] Focus chain MP [auth a] Focus chain MQ [auth a] Focus chain MS [auth a] Focus chain MT [auth a] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth A] Focus chain NH [auth a] Focus chain NK [auth a] Focus chain NL [auth a] Focus chain NM [auth a] Focus chain NN [auth a] Focus chain NO [auth a] Focus chain NR [auth a] Focus chain NS [auth a] Focus chain NT [auth a] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OE [auth A] Focus chain OF [auth A] Focus chain OH [auth a] Focus chain OI [auth a] Focus chain OL [auth a] Focus chain ON [auth a] Focus chain OR [auth a] Focus chain OS [auth a] Focus chain OT [auth a] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain PG [auth a] Focus chain PH [auth a] Focus chain PI [auth a] Focus chain PJ [auth a] Focus chain PM [auth a] Focus chain PN [auth a] Focus chain PP [auth a] Focus chain PQ [auth a] Focus chain PR [auth a] Focus chain PS [auth a] Focus chain PT [auth a] Focus chain QB [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain QG [auth a] Focus chain QH [auth a] Focus chain QI [auth a] Focus chain QM [auth a] Focus chain QN [auth a] Focus chain QO [auth a] Focus chain QR [auth a] Focus chain QS [auth a] Focus chain QT [auth b] Focus chain RB [auth A] Focus chain RE [auth A] Focus chain RF [auth A] Focus chain RG [auth a] Focus chain RH [auth a] Focus chain RI [auth a] Focus chain RJ [auth a] Focus chain RM [auth a] Focus chain RN [auth a] Focus chain RO [auth a] Focus chain RR [auth a] Focus chain RS [auth a] Focus chain RT [auth b] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain SG [auth a] Focus chain SH [auth a] Focus chain SI [auth a] Focus chain SJ [auth a] Focus chain SL [auth a] Focus chain SM [auth a] Focus chain SN [auth a] Focus chain SO [auth a] Focus chain SP [auth a] Focus chain SR [auth a] Focus chain SS [auth a] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain TF [auth A] Focus chain TI [auth a] Focus chain TJ [auth a] Focus chain TK [auth a] Focus chain TL [auth a] Focus chain TM [auth a] Focus chain TN [auth a] Focus chain TP [auth a] Focus chain TR [auth a] Focus chain TS [auth a] Focus chain TT [auth b] Focus chain UB [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain UF [auth A] Focus chain UH [auth a] Focus chain UI [auth a] Focus chain UK [auth a] Focus chain UL [auth a] Focus chain UM [auth a] Focus chain UN [auth a] Focus chain UP [auth a] Focus chain UQ [auth a] Focus chain UR [auth a] Focus chain US [auth a] Focus chain UT [auth b] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain VF [auth A] Focus chain VH [auth a] Focus chain VK [auth a] Focus chain VL [auth a] Focus chain VM [auth a] Focus chain VO [auth a] Focus chain VP [auth a] Focus chain VQ [auth a] Focus chain VR [auth a] Focus chain VS [auth a] Focus chain VT [auth b] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain WH [auth a] Focus chain WI [auth a] Focus chain WJ [auth a] Focus chain WK [auth a] Focus chain WM [auth a] Focus chain WN [auth a] Focus chain WP [auth a] Focus chain WQ [auth a] Focus chain WR [auth a] Focus chain WS [auth a] Focus chain XB [auth A] Focus chain XH [auth a] Focus chain XK [auth a] Focus chain XL [auth a] Focus chain XM [auth a] Focus chain XP [auth a] Focus chain XQ [auth a] Focus chain XR [auth a] Focus chain XS [auth a] Focus chain XT [auth p] Focus chain YB [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain YH [auth a] Focus chain YI [auth a] Focus chain YK [auth a] Focus chain YL [auth a] Focus chain YM [auth a] Focus chain YN [auth a] Focus chain YP [auth a] Focus chain YR [auth a] Focus chain YS [auth a] Focus chain YT [auth p] Focus chain ZB [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A] Focus chain ZG [auth a] Focus chain ZH [auth a] Focus chain ZI [auth a] Focus chain ZL [auth a] Focus chain ZM [auth a] Focus chain ZN [auth a] Focus chain ZO [auth a] Focus chain ZP [auth a] Focus chain ZQ [auth a] Focus chain ZR [auth a] Focus chain ZS [auth a]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
D2T Query on D2T	Q [auth L]	L-PEPTIDE LINKING	C₅ H₉ N O₄ S		ASP
MEQ Query on MEQ	FA [auth d]	L-PEPTIDE LINKING	C₆ H₁₂ N₂ O₃		GLN

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	v4

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-05-13

Deposition Author(s):

Devarkar, S.C.

Lomakin, I.B.

Bunick, C.G.

Funding Organization	Location	Grant Number
Other private	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-05-13
Type: Initial release

RCSB PDB is hosted by

RCSB PDB is a member of

RCSB Partners
Nucleic Acid Knowledgebase

RCSB PDB Core Operations are funded by the U.S. National Science Foundation (DBI-2321666), the US Department of Energy (DE-SC0019749), and the National Cancer Institute, National Institute of Allergy and Infectious Diseases, and National Institute of General Medical Sciences of the National Institutes of Health under grant R01GM157729. RCSB PDB uses resources of the National Energy Research Scientific Computing Center (NERSC), a Department of Energy User Facility.

9PIJ | pdb_00009pij

E. coli 70S ribosome bound to Minocycline

Literature

Dual site targeting of the bacterial 70S ribosome by tetracyclines

Biological Assembly 1

Macromolecules

Entity ID: 1

UniProt

Entity Groups

Sequence Annotations

Entity ID: 2

UniProt

Entity Groups

Sequence Annotations

Entity ID: 3

UniProt

Entity Groups

Sequence Annotations

Entity ID: 4

UniProt

Entity Groups

Sequence Annotations

Entity ID: 5

UniProt

Entity Groups

Sequence Annotations

Entity ID: 7

UniProt

Entity Groups

Sequence Annotations

Entity ID: 8

UniProt

Entity Groups

Sequence Annotations

Entity ID: 9

UniProt

Entity Groups

Sequence Annotations

Entity ID: 10

UniProt

Entity Groups

Sequence Annotations

Entity ID: 11

UniProt

Entity Groups

Sequence Annotations

Entity ID: 12

UniProt

Entity Groups

Sequence Annotations

Entity ID: 13

UniProt

Entity Groups

Sequence Annotations

Entity ID: 14

UniProt

Entity Groups

Sequence Annotations

Entity ID: 15

UniProt

Entity Groups

Sequence Annotations

Entity ID: 16

UniProt

Entity Groups

Sequence Annotations

Entity ID: 17

UniProt

Entity Groups

Sequence Annotations

Entity ID: 18

UniProt

Entity Groups

Sequence Annotations

Entity ID: 19

UniProt

Entity Groups

Sequence Annotations

Entity ID: 20

UniProt
