9PEW | pdb_00009pew

Porcine ATP synthase with inhibitory protein IF1, DP-state

PDB DOI: https://doi.org/10.2210/pdb9PEW/pdb
EM Map EMD-71580: EMDB EMDataResource

Classification: MEMBRANE PROTEIN,TRANSLOCASE
Organism(s): Sus scrofa
Mutation(s): No

Deposited: 2025-07-02 Released: 2026-08-19
Deposition Author(s): Mnatsakanyan, N., Mello, J.F.R., Palles, C.
Funding Organization(s): National Institutes of Health/National Institute on Aging (NIH/NIA), National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.69 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: integrative
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Porcine ATP synthase with inhibitory protein IF1, DP-state

Mnatsakanyan, N., Mello, J.F.R., Palles, C.

To be published.

Macromolecule Content

Total Structure Weight: 555.19 kDa
Atom Count: 38,695
Modeled Residue Count: 5,049
Deposited Residue Count: 5,082
Unique protein chains: 16

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

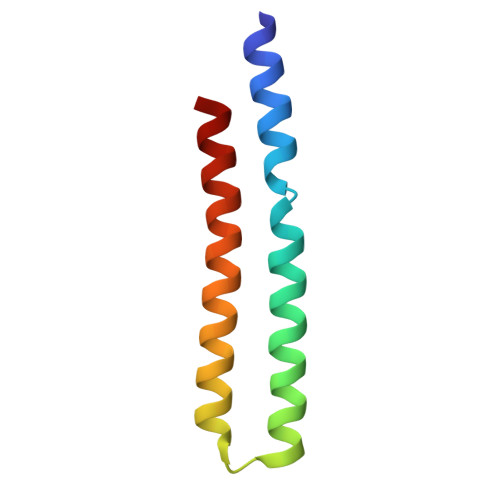

ATP synthase lipid-binding protein	A [auth 1] B [auth 2] C [auth 3] D [auth 4] E [auth 5] A [auth 1], B [auth 2], C [auth 3], D [auth 4], E [auth 5], F [auth 6], G [auth 7], H [auth 8]	73	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q4VT52 (Sus scrofa) Explore Q4VT52 Go to UniProtKB: Q4VT52
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q4VT52
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

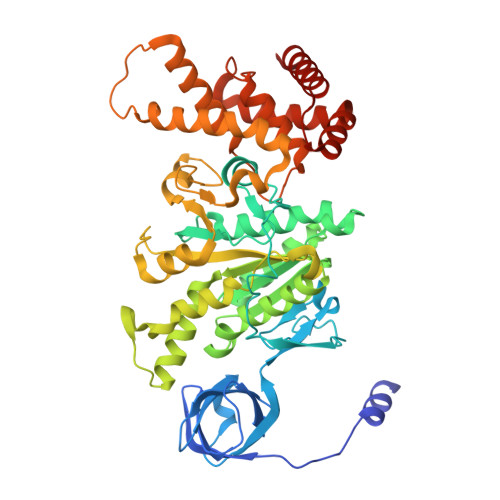

ATP synthase F(1) complex subunit alpha, mitochondrial	I [auth A], J [auth B], K [auth C]	508	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for P80021 (Sus scrofa) Explore P80021 Go to UniProtKB: P80021
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P80021
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

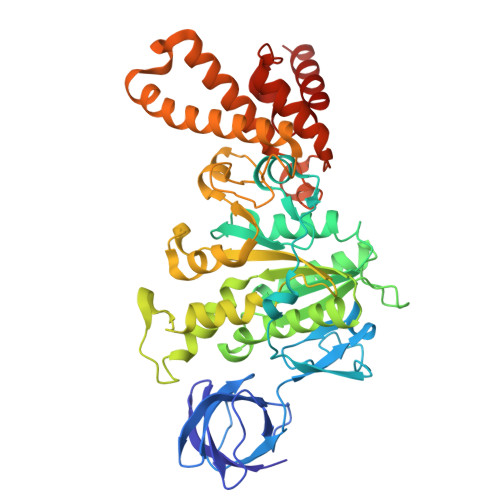

ATP synthase subunit beta	L [auth D], M [auth E], N [auth F]	470	Sus scrofa	Mutation(s): 0 EC: 7.1.2.2
UniProt
Find proteins for A0A481D232 (Sus scrofa) Explore A0A481D232 Go to UniProtKB: A0A481D232
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A481D232
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

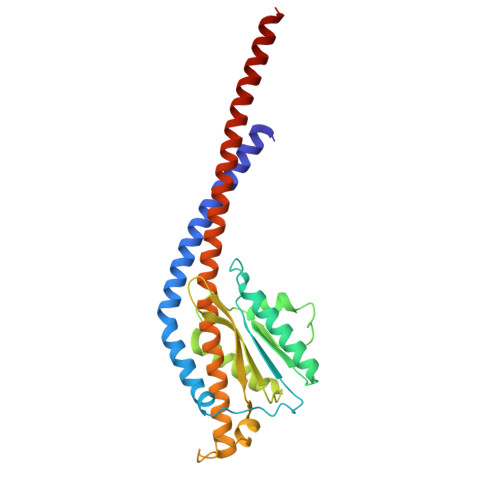

ATP synthase subunit gamma	O [auth G]	272	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1SNA2 (Sus scrofa) Explore A0A8D1SNA2 Go to UniProtKB: A0A8D1SNA2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1SNA2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

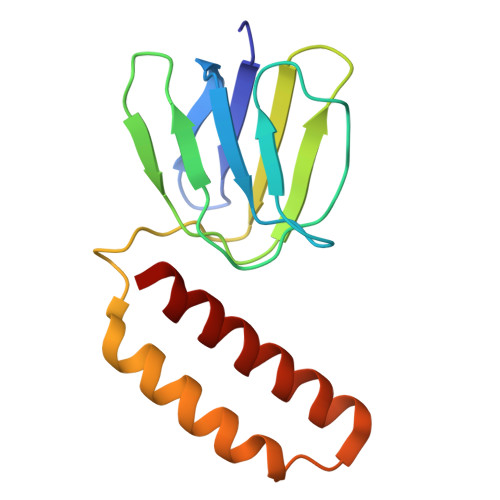

ATP synthase F(1) complex subunit delta, mitochondrial	P [auth H]	132	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1VPE5 (Sus scrofa) Explore A0A4X1VPE5 Go to UniProtKB: A0A4X1VPE5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1VPE5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

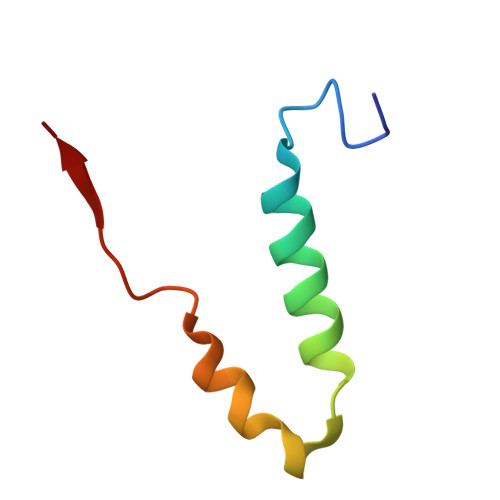

ATP synthase F1 subunit epsilon	Q [auth I]	47	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0X6E8 (Sus scrofa) Explore A0A8D0X6E8 Go to UniProtKB: A0A8D0X6E8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D0X6E8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

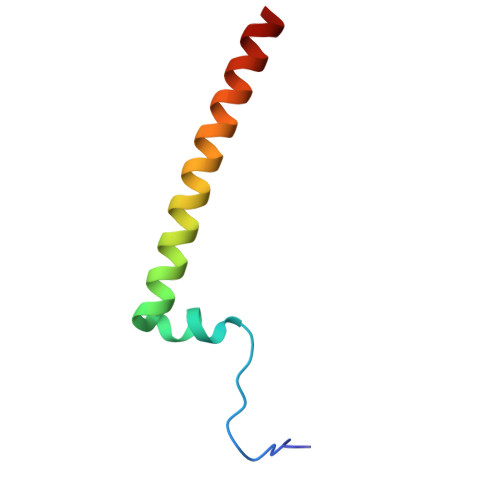

ATPase inhibitor, mitochondrial	R [auth J]	53	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q29307 (Sus scrofa) Explore Q29307 Go to UniProtKB: Q29307
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q29307
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

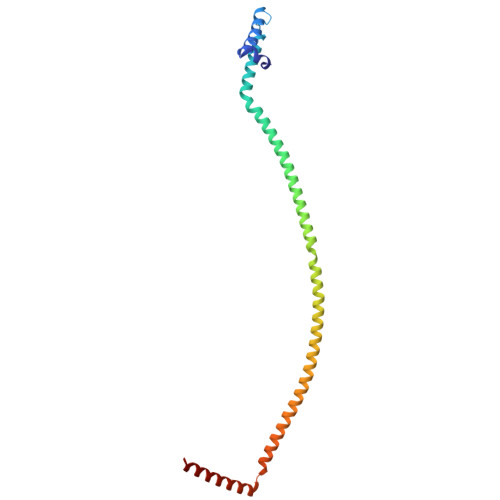

ATP synthase subunit b	S [auth K]	191	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TA12 (Sus scrofa) Explore A0A4X1TA12 Go to UniProtKB: A0A4X1TA12
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1TA12
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

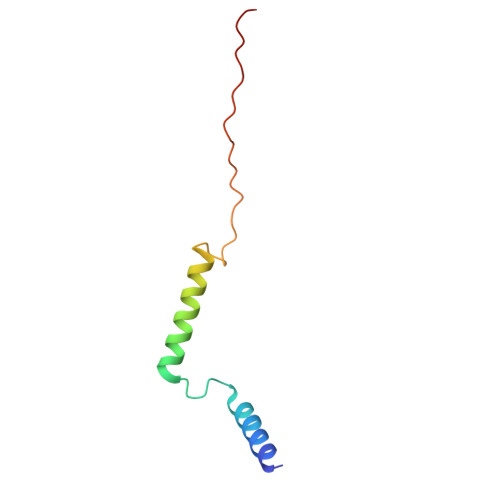

ATP synthase peripheral stalk subunit F6, mitochondrial	T [auth L]	68	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for P13618 (Sus scrofa) Explore P13618 Go to UniProtKB: P13618
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P13618
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

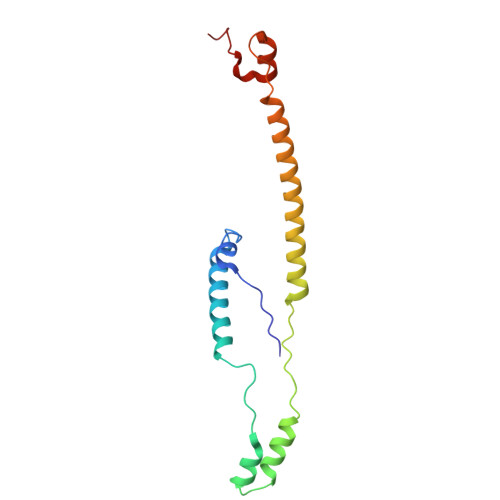

ATP synthase peripheral stalk subunit d, mitochondrial	U [auth M]	147	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1TS79 (Sus scrofa) Explore A0A8D1TS79 Go to UniProtKB: A0A8D1TS79
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1TS79
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

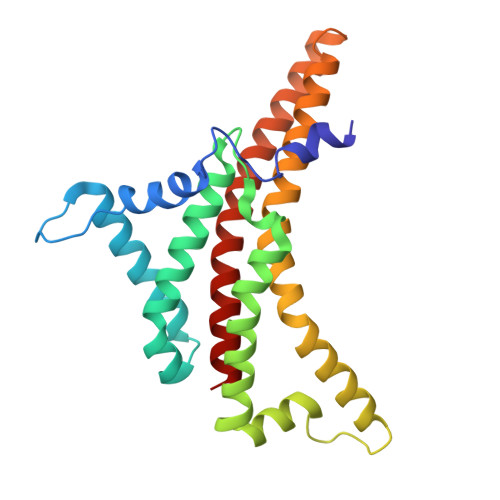

ATP synthase subunit a	V [auth N]	226	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q35915 (Sus scrofa) Explore Q35915 Go to UniProtKB: Q35915
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q35915
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

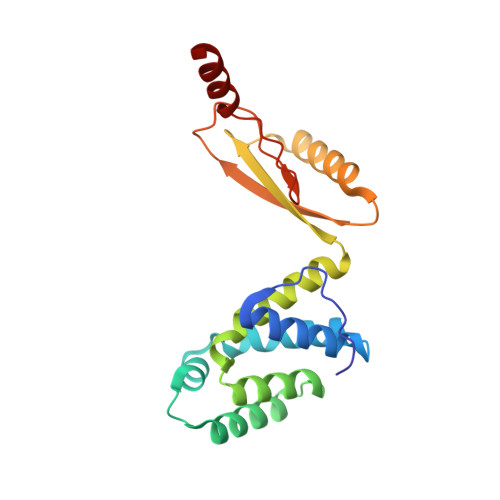

ATP synthase peripheral stalk subunit OSCP, mitochondrial	W [auth O]	187	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q2EN81 (Sus scrofa) Explore Q2EN81 Go to UniProtKB: Q2EN81
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q2EN81
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

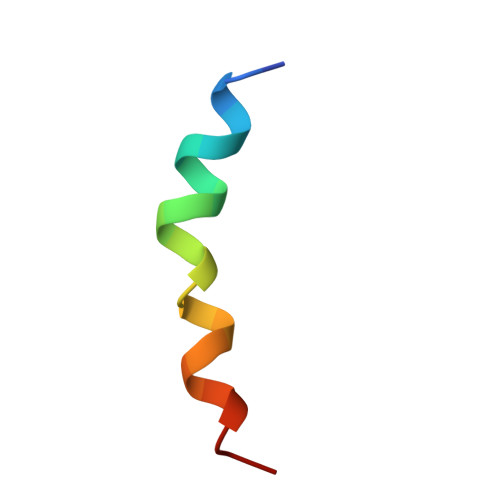

ATP synthase F(0) complex subunit 8	X [auth Q]	22	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q35914 (Sus scrofa) Explore Q35914 Go to UniProtKB: Q35914
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q35914
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

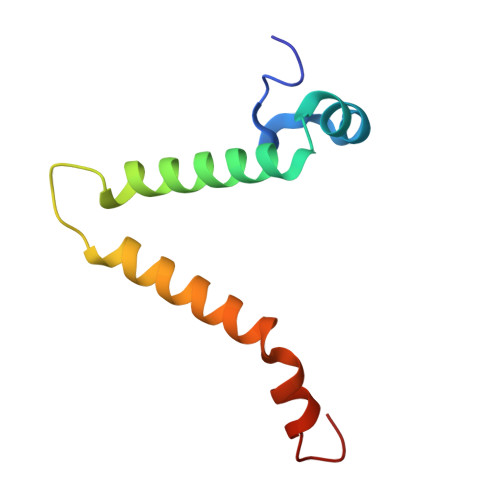

ATP synthase F(0) complex subunit f, mitochondrial	Y [auth R]	84	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q95339 (Sus scrofa) Explore Q95339 Go to UniProtKB: Q95339
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q95339
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

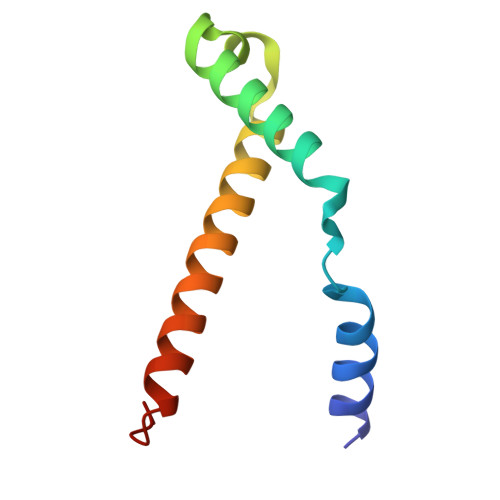

ATP synthase F(0) complex subunit g, mitochondrial	Z [auth S]	80	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F1SAK7 (Sus scrofa) Explore F1SAK7 Go to UniProtKB: F1SAK7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	F1SAK7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

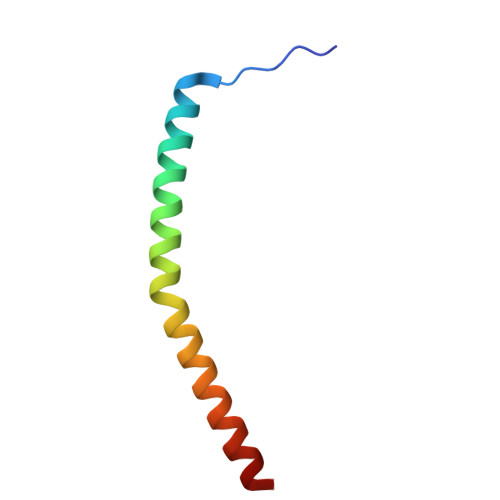

ATP synthase F(0) complex subunit e, mitochondrial	AA [auth T]	55	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q9MYT8 (Sus scrofa) Explore Q9MYT8 Go to UniProtKB: Q9MYT8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9MYT8
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP Query on ATP Download:Ideal Coordinates CCD File SDF format, chain LA [auth F] SDF format, chain FA [auth C] SDF format, chain DA [auth B] SDF format, chain BA [auth A] MOL2 format, chain LA [auth F] MOL2 format, chain FA [auth C] MOL2 format, chain DA [auth B] MOL2 format, chain BA [auth A] mmCIF format, chain LA [auth F] mmCIF format, chain FA [auth C] mmCIF format, chain DA [auth B] mmCIF format, chain BA [auth A]	BA [auth A], DA [auth B], FA [auth C], LA [auth F]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain BA [auth A] Focus chain DA [auth B] Focus chain FA [auth C] Focus chain LA [auth F] Interactions & Density Focus chain BA [auth A] Focus chain DA [auth B] Focus chain FA [auth C] Focus chain LA [auth F]
ADP Query on ADP Download:Ideal Coordinates CCD File SDF format, chain JA [auth E] SDF format, chain HA [auth D] MOL2 format, chain JA [auth E] MOL2 format, chain HA [auth D] mmCIF format, chain JA [auth E] mmCIF format, chain HA [auth D]	HA [auth D], JA [auth E]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain HA [auth D] Focus chain JA [auth E] Interactions & Density Focus chain HA [auth D] Focus chain JA [auth E]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain KA [auth F] SDF format, chain IA [auth D] SDF format, chain GA [auth C] SDF format, chain EA [auth B] SDF format, chain CA [auth A] MOL2 format, chain KA [auth F] MOL2 format, chain IA [auth D] MOL2 format, chain GA [auth C] MOL2 format, chain EA [auth B] MOL2 format, chain CA [auth A] mmCIF format, chain KA [auth F] mmCIF format, chain IA [auth D] mmCIF format, chain GA [auth C] mmCIF format, chain EA [auth B] mmCIF format, chain CA [auth A]	CA [auth A], EA [auth B], GA [auth C], IA [auth D], KA [auth F]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain CA [auth A] Focus chain EA [auth B] Focus chain GA [auth C] Focus chain IA [auth D] Focus chain KA [auth F] Interactions & Density Focus chain CA [auth A] Focus chain EA [auth B] Focus chain GA [auth C] Focus chain IA [auth D] Focus chain KA [auth F]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.69 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-19

Deposition Author(s):

Mnatsakanyan, N.

Mello, J.F.R.

Palles, C.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute on Aging (NIH/NIA)	United States	RF1AG072484
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	R21NS137275

Revision History (Full details and data files)

Version 1.0: 2026-08-19
Type: Initial release
