9PDP | pdb_00009pdp

In situ cryoEM structure of bacteriophage P22 portal barrel


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.83 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structural basis for bacteriophage P22 assembly and infection initiation.

Wang, C.Yu, H.Park, T.Molineux, I.J.Liu, J.

(2026) J Mol Biology : 169647-169647

  • DOI: https://doi.org/10.1016/j.jmb.2026.169647
  • Primary Citation of Related Structures:
    9PDP, 9PGG

  • PubMed Abstract:

    Salmonella phage P22 deploys a highly coordinated tail machine to recognize its host and initiate infection. Here, we present a cryo-EM structure of wild-type P22 that defines both how the tail apparatus assembles onto the capsid and how they interface. Flexible loop residues on both the portal protein gp1 and the capsid protein gp5 undergo pronounced positional shifts and engage multiple partners to accommodate the C12-C5 symmetry mismatch at the portal-capsid interface. The portal protein gp1 forms a distinctive ∼15-nm barrel that projects deep into the capsid interior. Comparison with a mutant lacking the three internal E (ejection) proteins indicates that these proteins reside within the portal-tail lumen in a poorly ordered state, yet are essential for stabilizing the extended portal barrel. We further show how the hub protein gp10 orchestrates the assembly of four distinct particle isomers through its coordinated interactions with portal gp1, adaptor gp4, tailspike gp9, and needle gp26. Finally, cryo-electron tomography reveals that the gp10 hub acts as a structural foundation for the assembly of one E protein into an extracellular channel that breaches the cell surface, with other E proteins forming a genome-translocating trans-envelope conduit.


  • Organizational Affiliation
    • Microbial Sciences Institute, Yale University, West Haven, CT 06516, USA; Department of Microbial Pathogenesis, Yale School of Medicine, New Haven, CT 06536, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

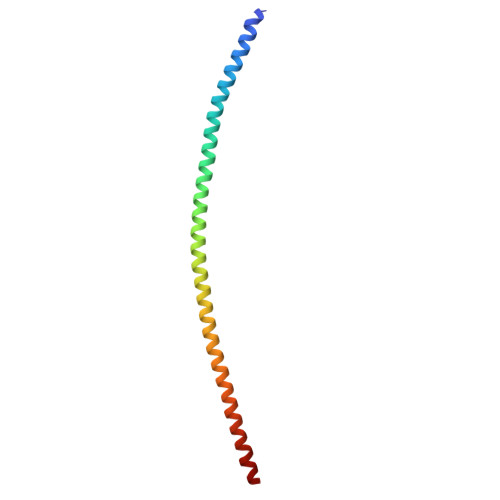

Portal protein
A, B, C, D, E
A, B, C, D, E, F, G, H, I, J, K, L
109Lederbergvirus P22Mutation(s): 0
UniProt
Find proteins for P26744 (Salmonella phage P22)
Explore P26744
Go to UniProtKB:  P26744
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP26744
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.83 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21_5190
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States124378
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States110243

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-04
    Type: Initial release
