9PD4 | pdb_00009pd4

NER dual incision complex - DuIM


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Pre-incision structures reveal principles of DNA nucleotide excision repair.

Li, E.C.L.Kim, J.Brussee, S.J.Sugasawa, K.Luijsterburg, M.S.Yang, W.

(2026) Nature

  • DOI: https://doi.org/10.1038/s41586-026-10122-5
  • Primary Citation Related Structures:
    9PCP, 9PD3, 9PD4, 9PD5, 9XYU

  • PubMed Abstract:

    Nucleotide excision repair (NER) removes bulky adducts from genomic DNA and prevents the ultraviolet light-sensitivity disease xeroderma pigmentosum, cancer and premature ageing 1 . After initial lesion recognition by XPC in global genome repair or by stalled RNA polymerases in transcription-coupled repair, a lesion and surrounding DNA duplex are unwound by TFIIH, which includes the ATPases XPB and XPD, and additional NER factors XPA, XPF, XPG and RPA, to form a DNA bubble 2 comprising around 27 nucleotides. The double strand-single strand (ds-ss) junction-specific endonucleases XPF and XPG cleave DNA on the 5' and 3' sides of the lesion, respectively. Here we report the functional steps and atomic structures of the ATPase-driven and lesion-dependent DNA bubble formation and arrangement of the complete NER factors for dual incision. The unwinding of nearly 30 base pairs of DNA depends mainly on the double strand DNA translocase XPB and the duplex dividers XPA and XPF. XPD binds the lesion strand with XPF at the 5' ds-ss junction. XPF cuts the lesion strand only after XPG binds the 3' ds-ss junction. The ERCC1 subunit of XPF facilitates DNA strand separation and recruitment of RPA to the non-lesion strand. These findings provide insights on the causes of human diseases and potential targets for enhancing chemotherapeutic efficacy.


  • Organizational Affiliation
    • Laboratory of Molecular Biology, NIDDK, National Institutes of Health, Bethesda, MD, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

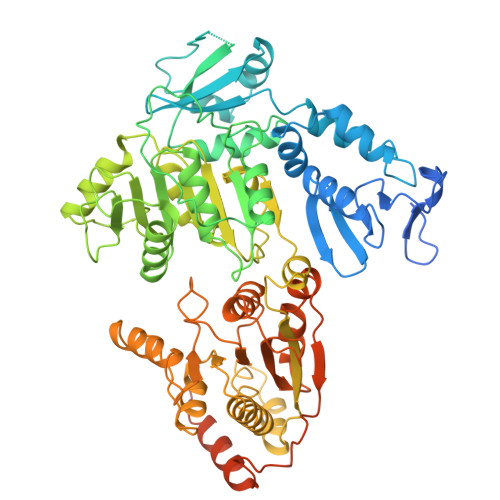

TFIIH basal transcription factor complex helicase XPB subunit782Homo sapiensMutation(s): 0
Gene Names: ERCC3XPBXPBC
EC: 3.6.4.12 (PDB Primary Data), 5.6.2.4 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P19447 (Homo sapiens)
Explore P19447
Go to UniProtKB:  P19447
PHAROS:  P19447
GTEx:  ENSG00000163161
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19447
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
General transcription and DNA repair factor IIH helicase subunit XPD768Homo sapiensMutation(s): 0
Gene Names: ERCC2XPDXPDC
EC: 3.6.4.12 (PDB Primary Data), 5.6.2.3 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P18074 (Homo sapiens)
Explore P18074
Go to UniProtKB:  P18074
PHAROS:  P18074
GTEx:  ENSG00000104884
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18074
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

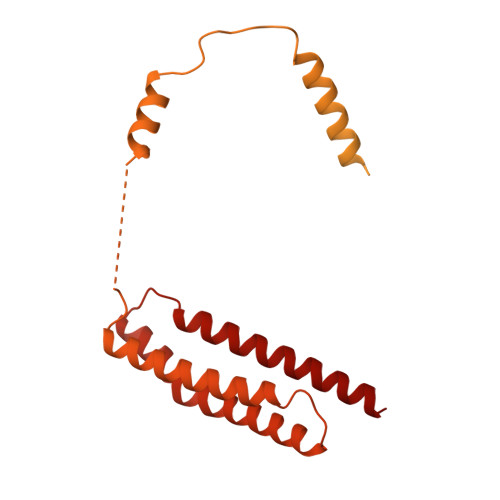

General transcription factor IIH subunit 1548Homo sapiensMutation(s): 0
Gene Names: GTF2H1BTF2
UniProt & NIH Common Fund Data Resources
Find proteins for P32780 (Homo sapiens)
Explore P32780
Go to UniProtKB:  P32780
PHAROS:  P32780
GTEx:  ENSG00000110768
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32780
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
General transcription factor IIH subunit 4, p52462Homo sapiensMutation(s): 0
Gene Names: GTF2H4
UniProt & NIH Common Fund Data Resources
Find proteins for Q92759 (Homo sapiens)
Explore Q92759
Go to UniProtKB:  Q92759
PHAROS:  Q92759
GTEx:  ENSG00000213780
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92759
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
General transcription factor IIH subunit 2395Homo sapiensMutation(s): 0
Gene Names: GTF2H2BTF2P44
UniProt & NIH Common Fund Data Resources
Find proteins for Q13888 (Homo sapiens)
Explore Q13888
Go to UniProtKB:  Q13888
GTEx:  ENSG00000145736
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13888
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

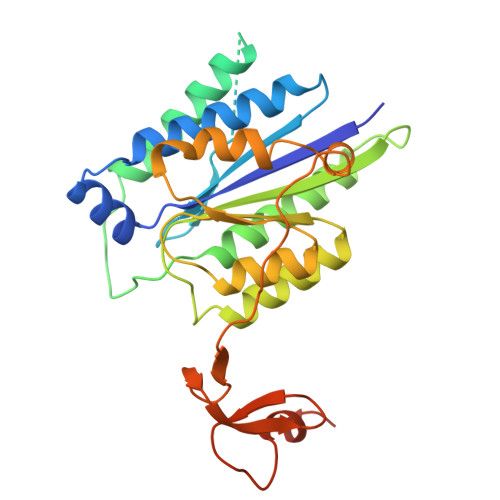

General transcription factor IIH subunit 3308Homo sapiensMutation(s): 0
Gene Names: GTF2H3
UniProt & NIH Common Fund Data Resources
Find proteins for Q13889 (Homo sapiens)
Explore Q13889
Go to UniProtKB:  Q13889
PHAROS:  Q13889
GTEx:  ENSG00000111358
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13889
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
General transcription factor IIH subunit 571Homo sapiensMutation(s): 0
Gene Names: GTF2H5C6orf175TTDA
UniProt & NIH Common Fund Data Resources
Find proteins for Q6ZYL4 (Homo sapiens)
Explore Q6ZYL4
Go to UniProtKB:  Q6ZYL4
PHAROS:  Q6ZYL4
GTEx:  ENSG00000272047
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6ZYL4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA excision repair protein ERCC-5H [auth S]1,186Homo sapiensMutation(s): 3
Gene Names: ERCC5ERCM2XPGXPGC
EC: 3.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28715 (Homo sapiens)
Explore P28715
Go to UniProtKB:  P28715
PHAROS:  P28715
GTEx:  ENSG00000134899
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28715
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

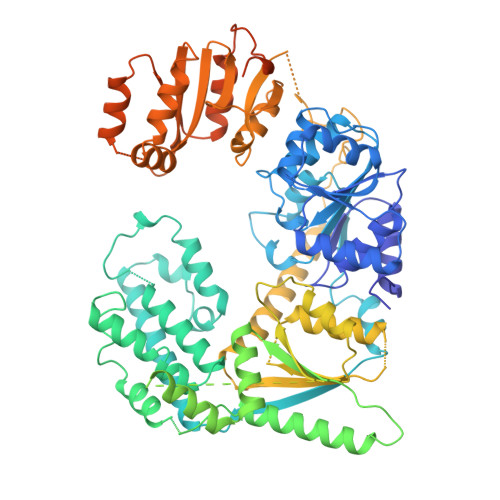

DNA repair endonuclease XPFI [auth Q]916Homo sapiensMutation(s): 1
Gene Names: ERCC4ERCC11XPF
EC: 3.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q92889 (Homo sapiens)
Explore Q92889
Go to UniProtKB:  Q92889
PHAROS:  Q92889
GTEx:  ENSG00000175595
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92889
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

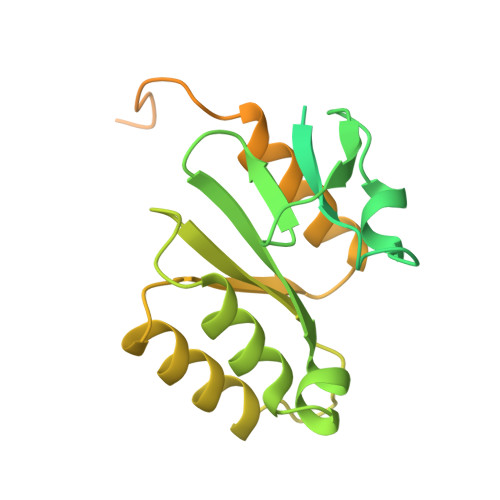

DNA excision repair protein ERCC-1J [auth R]295Homo sapiensMutation(s): 0
Gene Names: ERCC1
UniProt & NIH Common Fund Data Resources
Find proteins for P07992 (Homo sapiens)
Explore P07992
Go to UniProtKB:  P07992
PHAROS:  P07992
GTEx:  ENSG00000012061
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07992
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
DNA repair protein complementing XP-A cells273Homo sapiensMutation(s): 0
Gene Names: XPAXPAC
UniProt & NIH Common Fund Data Resources
Find proteins for P23025 (Homo sapiens)
Explore P23025
Go to UniProtKB:  P23025
PHAROS:  P23025
GTEx:  ENSG00000136936
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23025
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage

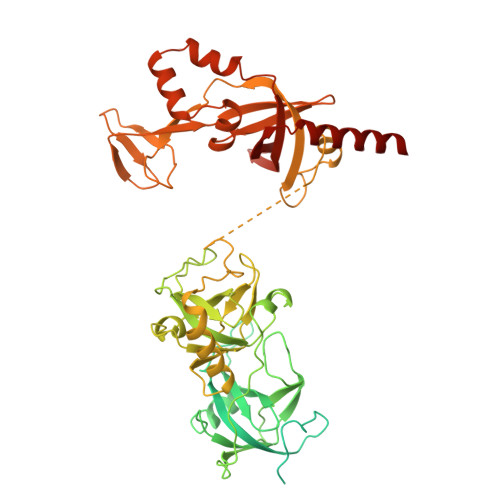

Replication protein A 70 kDa DNA-binding subunit616Homo sapiensMutation(s): 0
Gene Names: RPA1REPA1RPA70
UniProt & NIH Common Fund Data Resources
Find proteins for P27694 (Homo sapiens)
Explore P27694
Go to UniProtKB:  P27694
PHAROS:  P27694
GTEx:  ENSG00000132383
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP27694
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
Replication protein A 32 kDa subunit270Homo sapiensMutation(s): 0
Gene Names: RPA2REPA2RPA32RPA34
UniProt & NIH Common Fund Data Resources
Find proteins for P15927 (Homo sapiens)
Explore P15927
Go to UniProtKB:  P15927
PHAROS:  P15927
GTEx:  ENSG00000117748
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15927
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage

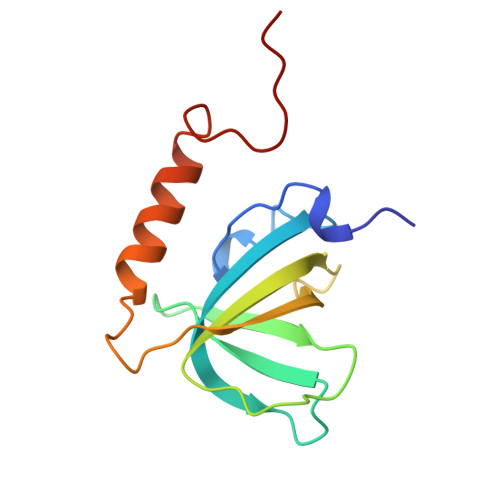

Replication protein A 14 kDa subunit121Homo sapiensMutation(s): 0
Gene Names: RPA3REPA3RPA14
UniProt & NIH Common Fund Data Resources
Find proteins for P35244 (Homo sapiens)
Explore P35244
Go to UniProtKB:  P35244
PHAROS:  P35244
GTEx:  ENSG00000106399
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35244
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 12
MoleculeChains LengthOrganismImage

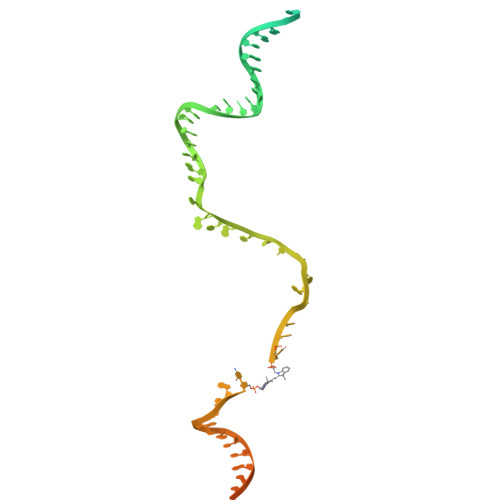

DNA (Cy5)93synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 13
MoleculeChains LengthOrganismImage
DNA94synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SF4
Query on SF4

Download Ideal Coordinates CCD File
Q [auth B]IRON/SULFUR CLUSTER
Fe4 S4
LJBDFODJNLIPKO-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
R [auth E]
S [auth E]
T [auth E]
U [auth F]
V [auth F]
R [auth E],
S [auth E],
T [auth E],
U [auth F],
V [auth F],
W [auth K],
X [auth N]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21rc1_5127
RECONSTRUCTIONRELION3.1

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)United StatesDK075037

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-18
    Type: Initial release
  • Version 1.1: 2026-04-01
    Changes: Data collection, Database references
