 9PBS | pdb_00009pbs

Core SWI/SNF of PIC-Med-SWI/SNF-Nucleosome

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9PBS

This is version 1.0 of the entry. See complete history.

Literature

Structure of Core SWI/SNF of PIC-Med-SWI/SNF-Nucleosome

Yang, C., Nagai, S., Chen, D.-H.

To be published.

Macromolecule Content

  • Total Structure Weight: 810.66 kDa
  • Atom Count: 24,359
  • Modeled Residue Count: 3,007
  • Deposited Residue Count: 7,175
  • Unique protein chains: 8

Macromolecules

Find similar proteins by:
|  3D Structure

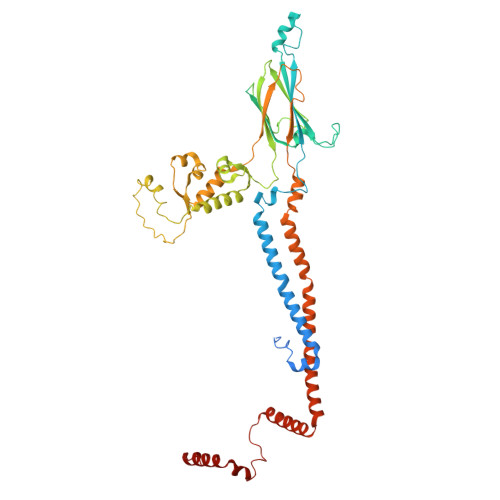

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription regulatory protein SNF12566Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P53628 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53628
Go to UniProtKB:  P53628
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53628
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

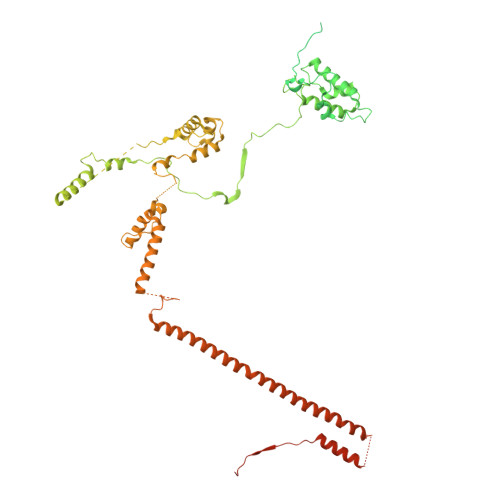

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF complex subunit SWI3
B, D
825Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P32591 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32591
Go to UniProtKB:  P32591
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32591
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

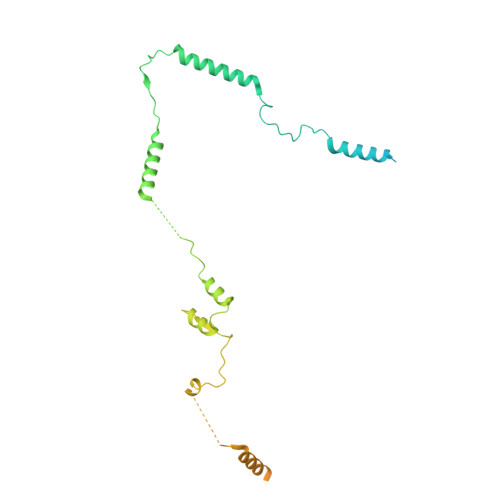

Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription regulatory protein SNF6332Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P18888 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P18888
Go to UniProtKB:  P18888
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18888
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF global transcription activator complex subunit SWP82623Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P43554 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P43554
Go to UniProtKB:  P43554
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP43554
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

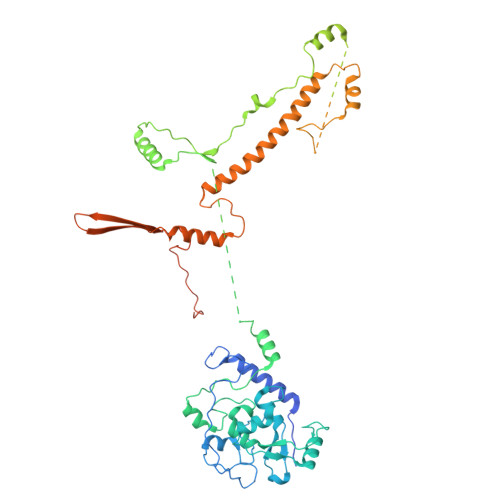

Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF chromatin-remodeling complex subunit SNF5905Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P18480 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P18480
Go to UniProtKB:  P18480
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18480
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

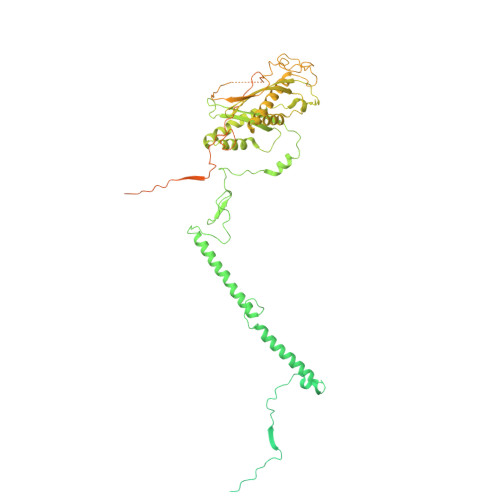

Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Unknown82Saccharomyces cerevisiaeMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

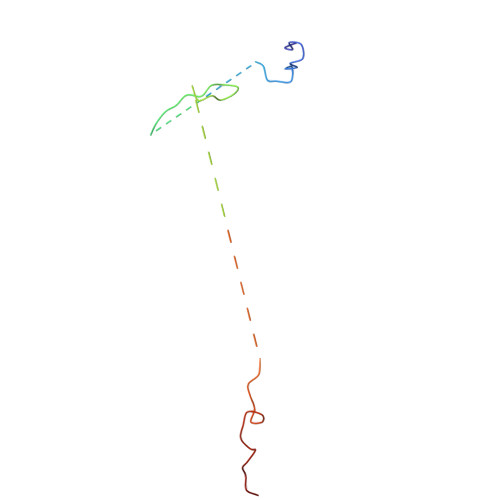

Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription regulatory protein SNF21,703Saccharomyces cerevisiaeMutation(s): 0
EC: 3.6.4
UniProt
Find proteins for P22082 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22082
Go to UniProtKB:  P22082
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22082
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

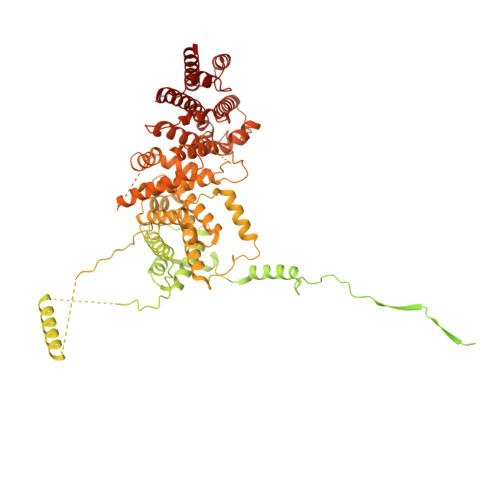

Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

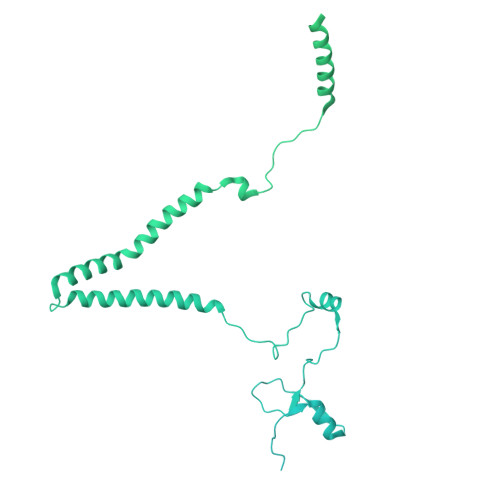

SWI/SNF chromatin-remodeling complex subunit SWI11,314Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P09547 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P09547
Go to UniProtKB:  P09547
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP09547
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
UNK
Query on UNK
G
L-PEPTIDE LINKINGC4 H9 N O2

--

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Other privateUnited States--

Revision History  (Full details and data files)

  • Version 1.0: 2026-10-07
    Type: Initial release
