9OZ6 | pdb_00009oz6

Cryo-EM structure of 1:1 chicken ROS1 and chicken NEL complex.

PDB DOI: https://doi.org/10.2210/pdb9OZ6/pdb
EM Map EMD-71049: EMDB EMDataResource

Classification: SIGNALING PROTEIN
Organism(s): Gallus gallus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-06-05 Released: 2026-02-25
Deposition Author(s): An, W.D., Zhang, X.W., Bai, X.C.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural Basis for the Activation of the Vertebrate ROS1 Receptor by the NEL/NICOL Ligand Complex

An, W.D., Zhang, X.W., Bai, X.C.

To be published.

Macromolecule Content

Total Structure Weight: 354.24 kDa
Atom Count: 8,564
Modeled Residue Count: 1,054
Deposited Residue Count: 3,127
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

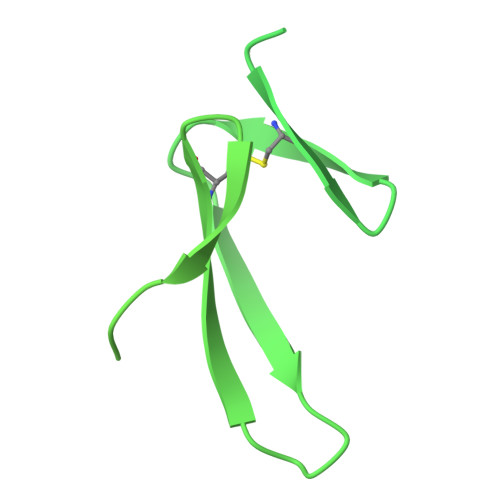

Protein NEL	A	816	Gallus gallus	Mutation(s): 0 Gene Names: NEL
UniProt
Find proteins for Q90827 (Gallus gallus) Explore Q90827 Go to UniProtKB: Q90827
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q90827
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

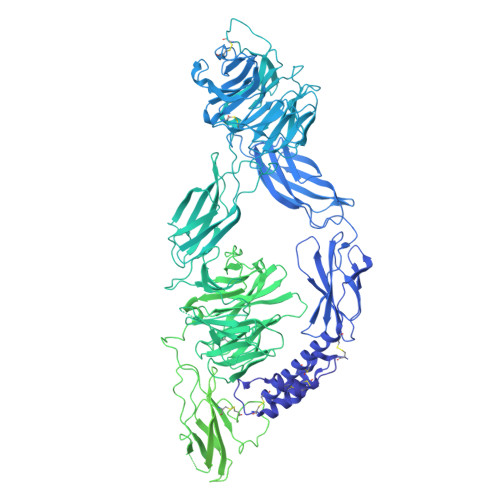

Tyrosine-protein kinase receptor	B	2,311	Gallus gallus	Mutation(s): 0 Gene Names: ROS1 EC: 2.7.10.1
UniProt
Find proteins for F1NQL9 (Gallus gallus) Explore F1NQL9 Go to UniProtKB: F1NQL9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F1NQL9
Glycosylation
Glycosylation Sites: 9	Glycosylation Focus chain B
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download Ideal Coordinates CCD File SDF format, chain C [auth B] SDF format, chain D [auth B] SDF format, chain E [auth B] SDF format, chain F [auth B] SDF format, chain G [auth B] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain C [auth B] MOL2 format, chain D [auth B] MOL2 format, chain E [auth B] MOL2 format, chain F [auth B] MOL2 format, chain G [auth B] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain C [auth B] mmCIF format, chain D [auth B] mmCIF format, chain E [auth B] mmCIF format, chain F [auth B] mmCIF format, chain G [auth B] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	C [auth B] D [auth B] E [auth B] F [auth B] G [auth B] C [auth B], D [auth B], E [auth B], F [auth B], G [auth B], H [auth B], I [auth B], J [auth B], K [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B]
