9OX8 | pdb_00009ox8

NHEJ Short-range complex with Polymerase lambda

  • Classification: DNA BINDING PROTEIN/DNA
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens, Escherichia coli, unidentified baculovirus
  • Mutation(s): No

  • Deposited: 2025-06-03 Released: 2026-07-01
  • Deposition Author(s): Vogt, A., He, Y.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Cancer Institute (NIH/NCI), National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 7.23 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OX8

This is version 1.0 of the entry. See complete history.

Literature

End Processing in NHEJ by Polymerase lambda and PNKP is coordinated during short-range synapsis

Vogt, A., Kaminski, A.M., Pedersen, L.C., Naila, T., Tomkinson, A.E., Lees-Miller, S.P., Kunkel, T.A., He, Y.

To be published.

Macromolecule Content

  • Total Structure Weight: 944.07 kDa
  • Atom Count: 39,673
  • Modeled Residue Count: 4,768
  • Deposited Residue Count: 8,122
  • Unique protein chains: 7
  • Unique nucleic acid chains: 2

Macromolecules


Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA ligase 4A,
T [auth X]		911Homo sapiensMutation(s): 0
Gene Names: LIG4
EC: 6.5.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49917 (Homo sapiens)
Explore P49917
Go to UniProtKB:  P49917
PHAROS:  P49917
GTEx:  ENSG00000174405
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49917
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Non-homologous end-joining factor 1
B, I
299Homo sapiensMutation(s): 0
Gene Names: NHEJ1, XLF
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H9Q4 (Homo sapiens)
Explore Q9H9Q4
Go to UniProtKB:  Q9H9Q4
PHAROS:  Q9H9Q4
GTEx:  ENSG00000187736
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H9Q4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
X-ray repair cross-complementing protein 6
C, J
600Homo sapiensMutation(s): 0
Gene Names: XRCC6, G22P1
EC: 3.6.4 (PDB Primary Data), 4.2.99 (PDB Primary Data), 5.6.2.4 (UniProt), 4.2.99.18 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P12956 (Homo sapiens)
Explore P12956
Go to UniProtKB:  P12956
PHAROS:  P12956
GTEx:  ENSG00000196419
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP12956
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
X-ray repair cross-complementing protein 5
D, K
732Homo sapiensMutation(s): 0
EC: 5.6.2.4 (UniProt), 4.2.99.18 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P13010 (Homo sapiens)
Explore P13010
Go to UniProtKB:  P13010
PHAROS:  P13010
GTEx:  ENSG00000079246
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP13010
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA polymerase lambda
E, F
575Homo sapiensMutation(s): 0
Gene Names: POLL
EC: 2.7.7.7 (PDB Primary Data), 4.2.99 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UGP5 (Homo sapiens)
Explore Q9UGP5
Go to UniProtKB:  Q9UGP5
PHAROS:  Q9UGP5
GTEx:  ENSG00000166169
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UGP5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA repair protein XRCC4
G, H, O, P
336Homo sapiensMutation(s): 0
Gene Names: XRCC4
UniProt & NIH Common Fund Data Resources
Find proteins for Q13426 (Homo sapiens)
Explore Q13426
Go to UniProtKB:  Q13426
PHAROS:  Q13426
GTEx:  ENSG00000152422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13426
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

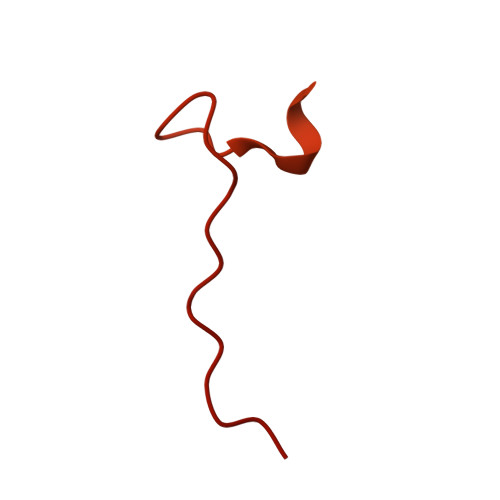

Protein PAXXR [auth T],
S [auth U]		204Homo sapiensMutation(s): 0
Gene Names: PAXX, C9orf142, XLS
UniProt
Find proteins for Q9BUH6 (Homo sapiens)
Explore Q9BUH6
Go to UniProtKB:  Q9BUH6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BUH6
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 7
MoleculeChains LengthOrganismImage
DNA (34-MER)
L, N
34Homo sapiens
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 8
MoleculeChains LengthOrganismImage
DNA (34-MER)
M, Q
34Homo sapiens
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 7.23 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.6.2

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM135651
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM144559
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States5T32GM008382
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesP01CA092584
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)United States1ZIC ES102645
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)United StatesZ01 ES065070
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR24GM154185

Revision History  (Full details and data files)

  • Version 1.0: 2026-07-01
    Type: Initial release
