9ON5 | pdb_00009on5

The pre-open state 1 structure of human P2X2 receptor channel in lipid nanodiscs with free ATP and sodium

PDB DOI: https://doi.org/10.2210/pdb9ON5/pdb
EM Map EMD-70629: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-05-14 Released: 2026-03-18
Deposition Author(s): Dhingra, S., Swartz, K.J.
Funding Organization(s): National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9ON5

This is version 1.0 of the entry. See complete history.

Literature

The pre-open state 1 structure of human P2X2 receptor channel in lipid nanodiscs with free ATP and sodium

Dhingra, S., Swartz, K.J.

To be published.

Macromolecule Content

Total Structure Weight: 158.96 kDa
Atom Count: 7,791
Modeled Residue Count: 969
Deposited Residue Count: 1,413
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

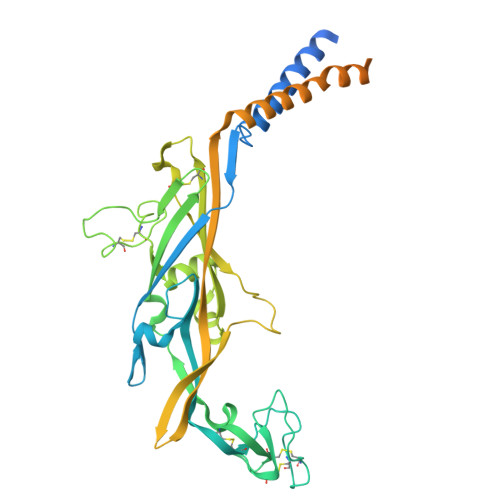

Molecule	Chains	Sequence Length	Organism	Details	Image
P2X purinoceptor 2	A, B, C	471	Homo sapiens	Mutation(s): 0 Gene Names: P2RX2, P2X2
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UBL9 (Homo sapiens) Explore Q9UBL9 Go to UniProtKB: Q9UBL9
PHAROS: Q9UBL9 GTEx: ENSG00000187848
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9UBL9
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: Q9UBL9-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain O [auth C] SDF format, chain K [auth B] SDF format, chain G [auth A] MOL2 format, chain O [auth C] MOL2 format, chain K [auth B] MOL2 format, chain G [auth A] mmCIF format, chain O [auth C] mmCIF format, chain K [auth B] mmCIF format, chain G [auth A]	G [auth A], K [auth B], O [auth C]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain G [auth A] Focus chain K [auth B] Focus chain O [auth C] Interactions & Density Focus chain G [auth A] Focus chain K [auth B] Focus chain O [auth C]
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain N [auth C] SDF format, chain M [auth C] SDF format, chain L [auth C] SDF format, chain J [auth B] SDF format, chain I [auth B] SDF format, chain H [auth B] SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain D [auth A] MOL2 format, chain N [auth C] MOL2 format, chain M [auth C] MOL2 format, chain L [auth C] MOL2 format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain H [auth B] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] mmCIF format, chain N [auth C] mmCIF format, chain M [auth C] mmCIF format, chain L [auth C] mmCIF format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain H [auth B] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A]	D [auth A] E [auth A] F [auth A] H [auth B] I [auth B] D [auth A], E [auth A], F [auth A], H [auth B], I [auth B], J [auth B], L [auth C], M [auth C], N [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth C] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain N [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-18

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	NS003018

Revision History (Full details and data files)

Version 1.0: 2026-03-18
Type: Initial release
