9OCC | pdb_00009occ

Sf11 bacteriophage tail

  • Classification: VIRUS
  • Organism(s): Shigella phage Sf11 SMD-2017
  • Mutation(s): No

  • Deposited: 2025-04-24 Released: 2025-11-12
  • Deposition Author(s): Subramanian, S., Parent, K.N.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Science Foundation (NSF, United States)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OCC

This is version 1.0 of the entry. See complete history.

Literature

Structure of Shigella bacteriophage Sf11

Subramanian, S., Dover, J.A., Parent, K.N.

To be published.

Macromolecule Content

  • Total Structure Weight: 714.51 kDa
  • Atom Count: 14,930
  • Modeled Residue Count: 1,889
  • Deposited Residue Count: 6,664
  • Unique protein chains: 6

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

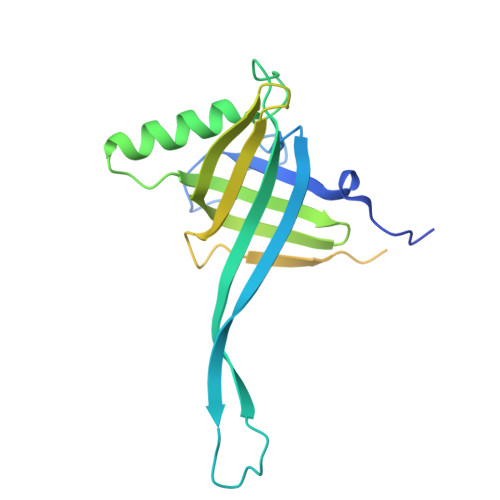

Putative neck whiskers protein gp24
A, B
238Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXD7 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXD7
Go to UniProtKB:  A0A291AXD7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXD7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Tail fiber protein gp17
C, D
457Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXC9 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXC9
Go to UniProtKB:  A0A291AXC9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXC9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Putative tail protein gp14828Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXC5 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXC5
Go to UniProtKB:  A0A291AXC5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXC5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

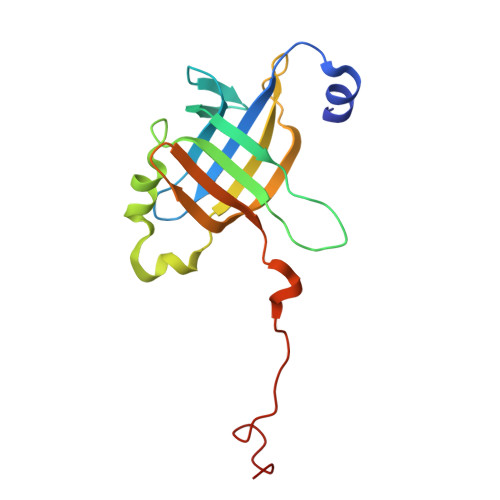

gp16156Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXG1 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXG1
Go to UniProtKB:  A0A291AXG1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXG1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

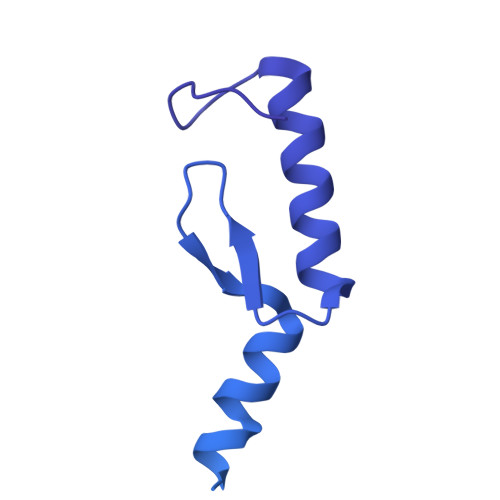

Putative tail protein gp13
G, H, I, J, K
G, H, I, J, K, L
585Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXF7 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXF7
Go to UniProtKB:  A0A291AXF7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXF7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Tail tape measure protein gp18780Shigella phage Sf11 SMD-2017Mutation(s): 0
UniProt
Find proteins for A0A291AXC6 (Shigella phage Sf11 SMD-2017)
Explore A0A291AXC6
Go to UniProtKB:  A0A291AXC6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A291AXC6
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM116789
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM140803
National Science Foundation (NSF, United States)United States1750125

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
