9O8Q | pdb_00009o8q

Cryo-EM structure of NI06063_d30_103 Fab in complex with influenza virus hemagglutinin from A/Hong Kong/485197/2014 (H3N2)

PDB DOI: https://doi.org/10.2210/pdb9O8Q/pdb
EM Map EMD-70233: EMDB EMDataResource

Classification: Viral protein/Immune System
Organism(s): Homo sapiens, Influenza A virus (A/Hong Kong/485197/2014(H3N2))
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-04-16 Released: 2026-02-04
Deposition Author(s): Jo, G., Ward, A.B.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.62 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

A single amino acid substitution in hemagglutinin stalk drives heterosubtypic imprinting of cross-group reactive B cells in children

Jo, G., Ward, A.B.

To be published.

Macromolecule Content

Total Structure Weight: 281.42 kDa
Atom Count: 17,502
Modeled Residue Count: 2,148
Deposited Residue Count: 2,433
Unique protein chains: 4

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

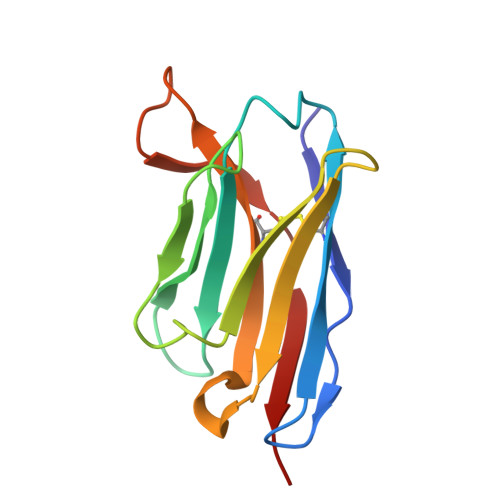

NI06063_d30_103 Fab heavy chain	A [auth H], E [auth G], I	121	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
NI06063_d30_103 Fab light chain	B [auth L], F [auth J], J [auth K]	109	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

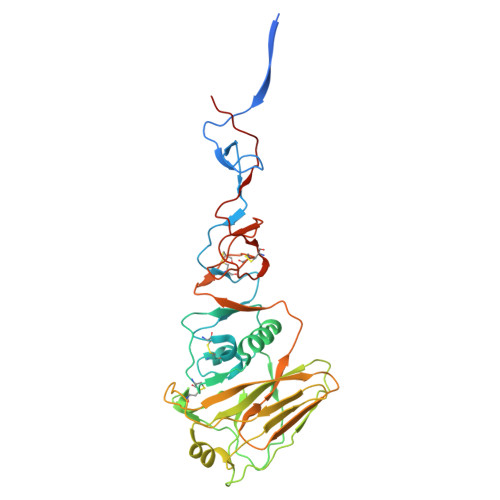

Hemagglutinin HA1	C [auth A], G [auth C], K [auth D]	345	Influenza A virus (A/Hong Kong/485197/2014(H3N2))	Mutation(s): 0 Gene Names: HA
UniProt
Find proteins for A0A0K0YAS1 (Influenza A virus) Explore A0A0K0YAS1 Go to UniProtKB: A0A0K0YAS1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A0K0YAS1
Glycosylation
Glycosylation Sites: 10	Glycosylation Focus chain C [auth A] Focus chain G [auth C] Focus chain K [auth D]
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

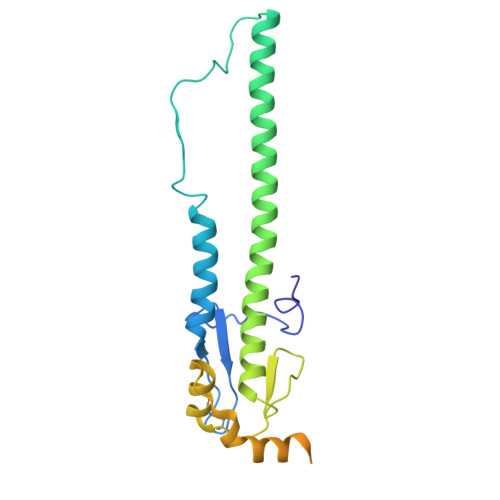

Hemagglutinin HA2	D [auth B], H [auth E], L [auth F]	236	Influenza A virus (A/Hong Kong/485197/2014(H3N2))	Mutation(s): 0 Gene Names: HA
UniProt
Find proteins for A0A0K0YAS1 (Influenza A virus) Explore A0A0K0YAS1 Go to UniProtKB: A0A0K0YAS1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A0K0YAS1
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain D [auth B] Focus chain H [auth E] Focus chain L [auth F]
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	M, O, P, Q, S M, O, P, Q, S, T, U, W, X	3		N-Glycosylation	Interactions Focus chain M Focus chain O Focus chain P Focus chain Q Focus chain S Focus chain T Focus chain U Focus chain W Focus chain X Interactions & Density Focus chain M Focus chain O Focus chain P Focus chain Q Focus chain S Focus chain T Focus chain U Focus chain W Focus chain X

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	N, R, V	3		N-Glycosylation	Interactions Focus chain N Focus chain R Focus chain V Interactions & Density Focus chain N Focus chain R Focus chain V

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain Z [auth A] SDF format, chain Y [auth A] SDF format, chain SA [auth F] SDF format, chain RA [auth D] SDF format, chain QA [auth D] SDF format, chain PA [auth D] SDF format, chain OA [auth D] SDF format, chain NA [auth D] SDF format, chain MA [auth D] SDF format, chain LA [auth E] SDF format, chain KA [auth C] SDF format, chain JA [auth C] SDF format, chain IA [auth C] SDF format, chain HA [auth C] SDF format, chain GA [auth C] SDF format, chain FA [auth C] SDF format, chain EA [auth B] SDF format, chain DA [auth A] SDF format, chain CA [auth A] SDF format, chain BA [auth A] SDF format, chain AA [auth A] MOL2 format, chain Z [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain SA [auth F] MOL2 format, chain RA [auth D] MOL2 format, chain QA [auth D] MOL2 format, chain PA [auth D] MOL2 format, chain OA [auth D] MOL2 format, chain NA [auth D] MOL2 format, chain MA [auth D] MOL2 format, chain LA [auth E] MOL2 format, chain KA [auth C] MOL2 format, chain JA [auth C] MOL2 format, chain IA [auth C] MOL2 format, chain HA [auth C] MOL2 format, chain GA [auth C] MOL2 format, chain FA [auth C] MOL2 format, chain EA [auth B] MOL2 format, chain DA [auth A] MOL2 format, chain CA [auth A] MOL2 format, chain BA [auth A] MOL2 format, chain AA [auth A] mmCIF format, chain Z [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain SA [auth F] mmCIF format, chain RA [auth D] mmCIF format, chain QA [auth D] mmCIF format, chain PA [auth D] mmCIF format, chain OA [auth D] mmCIF format, chain NA [auth D] mmCIF format, chain MA [auth D] mmCIF format, chain LA [auth E] mmCIF format, chain KA [auth C] mmCIF format, chain JA [auth C] mmCIF format, chain IA [auth C] mmCIF format, chain HA [auth C] mmCIF format, chain GA [auth C] mmCIF format, chain FA [auth C] mmCIF format, chain EA [auth B] mmCIF format, chain DA [auth A] mmCIF format, chain CA [auth A] mmCIF format, chain BA [auth A] mmCIF format, chain AA [auth A]	AA [auth A] BA [auth A] CA [auth A] DA [auth A] EA [auth B] AA [auth A], BA [auth A], CA [auth A], DA [auth A], EA [auth B], FA [auth C], GA [auth C], HA [auth C], IA [auth C], JA [auth C], KA [auth C], LA [auth E], MA [auth D], NA [auth D], OA [auth D], PA [auth D], QA [auth D], RA [auth D], SA [auth F], Y [auth A], Z [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth A] Focus chain EA [auth B] Focus chain FA [auth C] Focus chain GA [auth C] Focus chain HA [auth C] Focus chain IA [auth C] Focus chain JA [auth C] Focus chain KA [auth C] Focus chain LA [auth E] Focus chain MA [auth D] Focus chain NA [auth D] Focus chain OA [auth D] Focus chain PA [auth D] Focus chain QA [auth D] Focus chain RA [auth D] Focus chain SA [auth F] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth A] Focus chain EA [auth B] Focus chain FA [auth C] Focus chain GA [auth C] Focus chain HA [auth C] Focus chain IA [auth C] Focus chain JA [auth C] Focus chain KA [auth C] Focus chain LA [auth E] Focus chain MA [auth D] Focus chain NA [auth D] Focus chain OA [auth D] Focus chain PA [auth D] Focus chain QA [auth D] Focus chain RA [auth D] Focus chain SA [auth F] Focus chain Y [auth A] Focus chain Z [auth A]
