9O6X | pdb_00009o6x

Recombinant AD THF incubated with SW-MK-NBD (Non-Symmetric Binding)

• PDB DOI: https://doi.org/10.2210/pdb9O6X/pdb
• EM Map EMD-70184: EMDB EMDataResource

• Classification: PROTEIN FIBRIL
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-04-14 Released: 2026-04-22
• Deposition Author(s): Kunach, P., Diamond, M.I.
• Funding Organization(s): Cancer Prevention and Research Institute of Texas (CPRIT), National Institutes of Health/National Institute of Mental Health (NIH/NIMH), Canadian Institutes of Health Research (CIHR)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.58 Å
• Aggregation State: FILAMENT
• Reconstruction Method: HELICAL

Starting Model: experimental

Literature

Development of a tau amyloid dye from a PET ligand

Kunach, P., Diamond, M.I.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Homo 15-mer - A15

Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 3-mer - A3

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 122.77 kDa
• Atom Count: 8,625
• Modeled Residue Count: 1,125
• Deposited Residue Count: 1,125
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

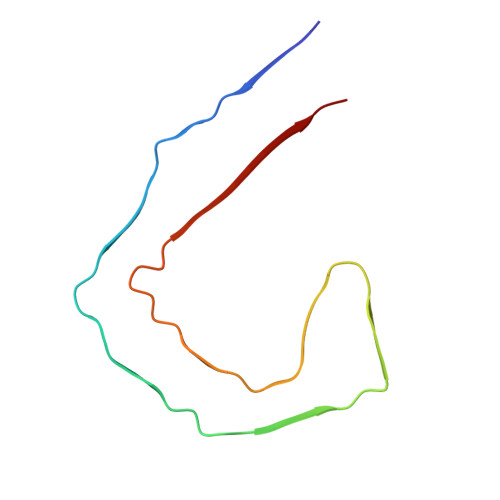

Microtubule-associated protein tau	A [auth R], B [auth S], C [auth T], D [auth U], E [auth V], F [auth W], G [auth X], H [auth Y], I [auth Z], J [auth a], K [auth e], L [auth f], M [auth g], N [auth h], O [auth i]	75	Homo sapiens	Mutation(s): 0  Gene Names: MAPT, MAPTL, MTBT1, TAU
UniProt & NIH Common Fund Data Resources
Find proteins for P10636 (Homo sapiens) Explore P10636  Go to UniProtKB:  P10636
PHAROS:  P10636 GTEx:  ENSG00000186868

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.58 Å
• Aggregation State: FILAMENT
• Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1
RECONSTRUCTION	RELION	4.0

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-04-22
Deposition Author(s): Kunach, P., Diamond, M.I.

---

Funding Organization	Location	Grant Number
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RP170644
National Institutes of Health/National Institute of Mental Health (NIH/NIMH)	United States	R35GM122481
Canadian Institutes of Health Research (CIHR)	Canada	MOP-11-51-31
Canadian Institutes of Health Research (CIHR)	Canada	152985

Revision History

• Version 1.0: 2026-04-22
  Type: Initial release
