9NPT | pdb_00009npt

RAVV GP in complex with Nanosota-MB1


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9NPT

This is version 1.1 of the entry. See complete history

Literature

Structures of Marburgvirus glycoprotein and its complex with NPC1 receptor.

Ye, G.Bu, F.Turner-Hubbard, H.Herbst, M.Du, L.Yang, G.Liu, B.Li, F.

(2026) Nature 653: 621-626

  • DOI: https://doi.org/10.1038/s41586-026-10240-0
  • Primary Citation Related Structures:
    9NPR, 9NPS, 9NPT

  • PubMed Abstract:

    Marburgviruses (MBVs) cause severe haemorrhagic fever with higher fatality rates than Ebola virus (EBOV) 1-4 . Here we show that the MBV glycoprotein (GP) mediates viral entry more efficiently than EBOV GP. Using cryo-EM, we determined structures of MBV GP in three states: (1) unbound; (2) bound to its endosomal receptor NPC1; and (3) complexed with a neutralizing nanobody. The glycan cap shields the receptor-binding site from NPC1 but only partially from the nanobody, enabling limited immune evasion. After glycan cap cleavage, NPC1 binds to MBV GP in a distinct orientation compared with EBOV GP, providing an additional anchor and enhancing receptor affinity. NPC1 engagement also induces substantial conformational changes in MBV GP, probably facilitating membrane fusion. Furthermore, MBV GP is susceptible to the neutralizing nanobody, which mimics NPC1 at the receptor-binding site. Together, our findings reveal MBV GP as a highly efficient entry mediator and suggest structural mechanisms that may contribute to its enhanced entry efficiency.


  • Organizational Affiliation
    • Department of Pharmacology, University of Minnesota Medical School, Minneapolis, MN, USA. yeg@umn.edu.

Macromolecule Content

  • Total Structure Weight: 227.58 kDa
  • Atom Count: 9,372
  • Modeled Residue Count: 1,152
  • Deposited Residue Count: 1,989
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Nanosota-MB1A [auth G],
H,
I
158Vicugna pacosMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Envelope glycoprotein GP1B [auth A],
D [auth C],
F [auth E]
258Ravn virus - Ravn, Kenya, 1987Mutation(s): 0
Gene Names: GP
UniProt
Find proteins for Q1PDC7 (Lake Victoria marburgvirus (strain Ravn-87))
Explore Q1PDC7
Go to UniProtKB:  Q1PDC7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ1PDC7
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

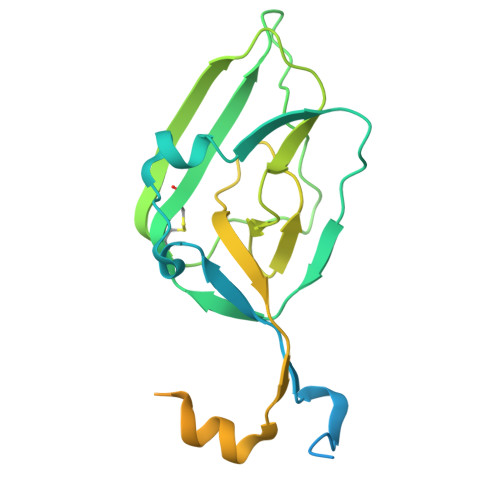

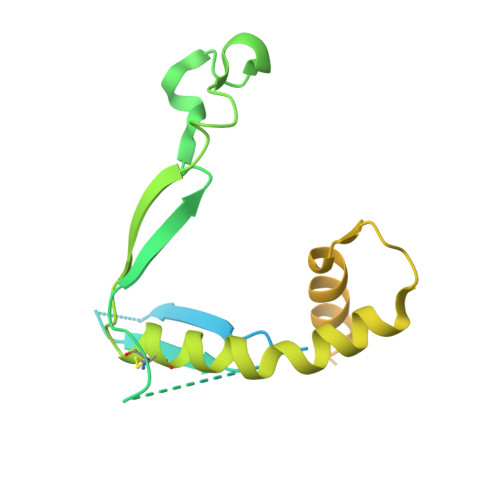

Envelope glycoprotein GP2C [auth B],
E [auth D],
G [auth F]
247Ravn virus - Ravn, Kenya, 1987Mutation(s): 0
Gene Names: GP
UniProt
Find proteins for Q1PDC7 (Lake Victoria marburgvirus (strain Ravn-87))
Explore Q1PDC7
Go to UniProtKB:  Q1PDC7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ1PDC7
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 4
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseJ [auth R],
K [auth S],
L [auth T]
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE
Entity ID: 5
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseM [auth X],
N [auth Y],
O [auth Z]
5N-Glycosylation
Glycosylation Resources
GlyTouCan: G22768VO
GlyCosmos: G22768VO
GlyGen: G22768VO

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286:

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI089728
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI171954

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-31
    Type: Initial release
  • Version 1.1: 2026-07-15
    Changes: Data collection, Database references
