9NOB | pdb_00009nob

Crystal Structutre of unliganded Fab 224

PDB DOI: https://doi.org/10.2210/pdb9NOB/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Cricetulus griseus
Mutation(s): No

Deposited: 2025-03-08 Released: 2026-03-18
Deposition Author(s): Jain, M., Wilson, I.A.
Funding Organization(s): Bill & Melinda Gates Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.69 Å
R-Value Free:
0.230 (Depositor), 0.230 (DCC)
R-Value Work:
0.199 (Depositor), 0.199 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structutre of unliganded Fab 224

Jain, M., Wilson, I.A.

To be published.

Macromolecule Content

Total Structure Weight: 47.54 kDa
Atom Count: 3,482
Modeled Residue Count: 437
Deposited Residue Count: 447
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

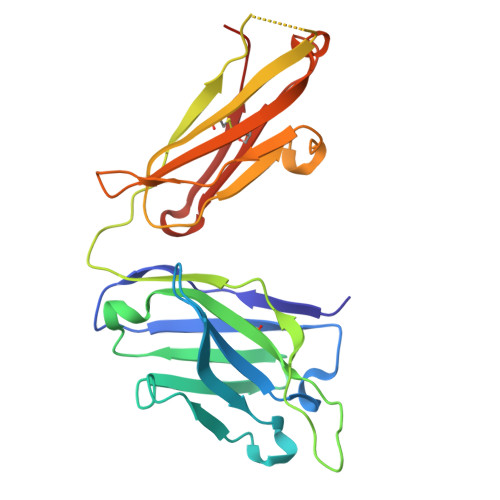

224 Fab Heavy Chain	A [auth H]	230	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

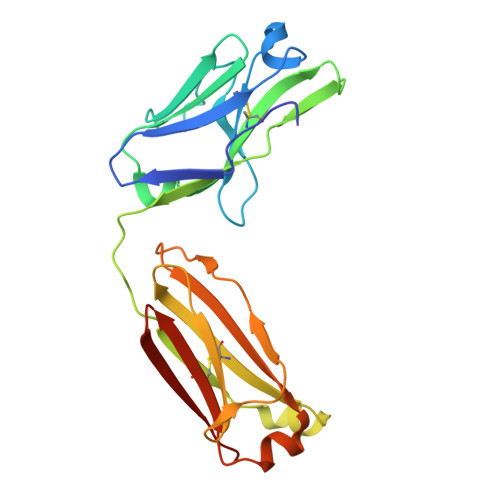

224 Fab Light Chain	B [auth L]	217	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.69 Å
R-Value Free: 0.230 (Depositor), 0.230 (DCC)
R-Value Work: 0.199 (Depositor), 0.199 (DCC)
R-Value Observed: 0.200 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 56.857	α = 90
b = 72.826	β = 90
c = 127.951	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
HKL-2000	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-03-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-004923
Bill & Melinda Gates Foundation	United States	INV-056202

Revision History (Full details and data files)

Version 1.0: 2026-03-18
Type: Initial release
