9NJA | pdb_00009nja

Computationally optimized broadly reactive influenza B hemagglutinin BC2 bound by antibody #46

• PDB DOI: https://doi.org/10.2210/pdb9NJA/pdb
• EM Map EMD-49477: EMDB EMDataResource

• Classification: VIRAL PROTEIN/Immune System
• Organism(s): Homo sapiens, Influenza B virus
• Expression System: Cricetulus griseus
• Mutation(s): No


• Deposited: 2025-02-27 Released: 2026-03-11
• Deposition Author(s): Dzimianski, J.V., Kunkel, I., Balasco Serrao, V.H., DuBois, R.M.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.50 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental, in silico

Literature

Computationally optimized broadly reactive influenza B hemagglutinin BC2 bound by antibodies #46 and #3978

Dzimianski, J.V., Kunkel, I., Balasco Serrao, V.H., DuBois, R.M.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 9-mer - A3B3C3 Pseudo Symmetry: Cyclic - C3  (Explore in 3D)
Pseudo Stoichiometry: Hetero 9-mer - A6B3

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 318.88 kDa
• Atom Count: 11,688
• Modeled Residue Count: 1,518
• Deposited Residue Count: 2,943
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

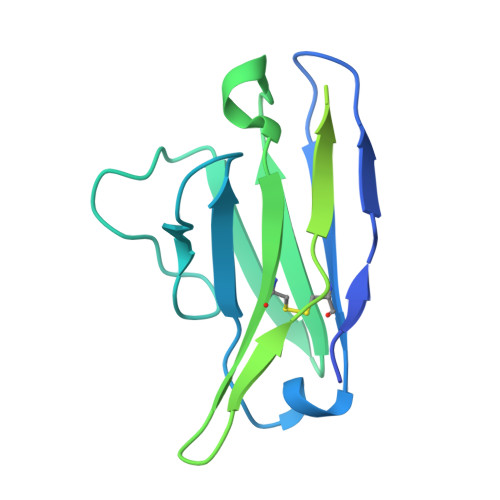

Fab A Light Chain	A [auth L], D [auth K], G [auth P]	218	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

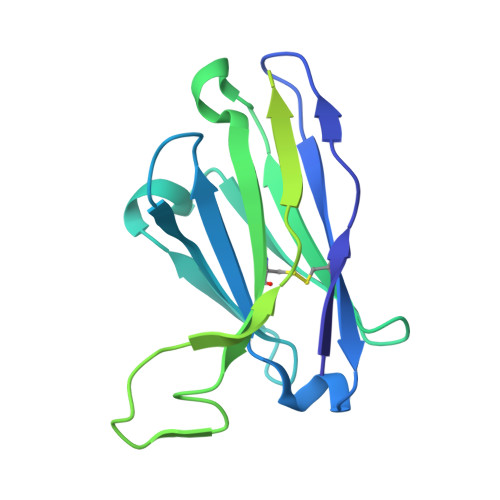

Fab A Heavy Chain	B [auth H], E [auth J], H [auth Q]	233	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

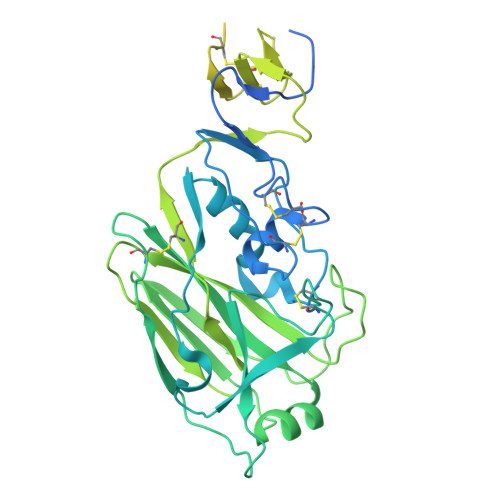

Hemagglutinin	C [auth A], F [auth B], I [auth C]	530	Influenza B virus	Mutation(s): 0  Gene Names: HA
UniProt
Find proteins for P17504 (Influenza B virus (strain B/Beijing/1/1987)) Explore P17504  Go to UniProtKB:  P17504
Glycosylation
Glycosylation Sites: 3

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	J [auth D], K [auth E], L [auth F]	2		N-Glycosylation

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	M [auth A], N [auth A], O [auth B], P [auth B], Q [auth C], R [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.50 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.5.3
MODEL REFINEMENT	PHENIX	1.21.2_5419
MODEL REFINEMENT	ISOLDE
MODEL REFINEMENT	Coot

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-03-11
Deposition Author(s): Dzimianski, J.V., Kunkel, I., Balasco Serrao, V.H., DuBois, R.M.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93019C00052

Revision History

• Version 1.0: 2026-03-11
  Type: Initial release
