9NAV | pdb_00009nav

CryoEM structure of human astrovirus 1 spike in complex with human neonatal Fc receptor

• PDB DOI: https://doi.org/10.2210/pdb9NAV/pdb
• EM Map EMD-49204: EMDB EMDataResource

• Classification: VIRAL PROTEIN
• Organism(s): Homo sapiens, Human astrovirus 1
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2025-02-12 Released: 2026-02-18
• Deposition Author(s): Hall, P.D., Nelson, C.A., Fremont, D.H., Center for Structural Biology of Infectious Diseases (CSBID)
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.81 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental

Literature

Cryo-EM structure of human astrovirus in complex with the neonatal Fc receptor

Hall, P.D., Nelson, C.A., Adams, L.J., Harshad, I., Molleston, J.M., Bui, D., Baldridge, M.T., Fremont, D.H.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Hetero 10-mer - A4B2C2D2 Pseudo Symmetry: Cyclic - C2  (Explore in 3D)
Pseudo Stoichiometry: Hetero 10-mer - A6B2C2

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 403.82 kDa
• Atom Count: 24,270
• Modeled Residue Count: 3,168
• Deposited Residue Count: 3,692
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

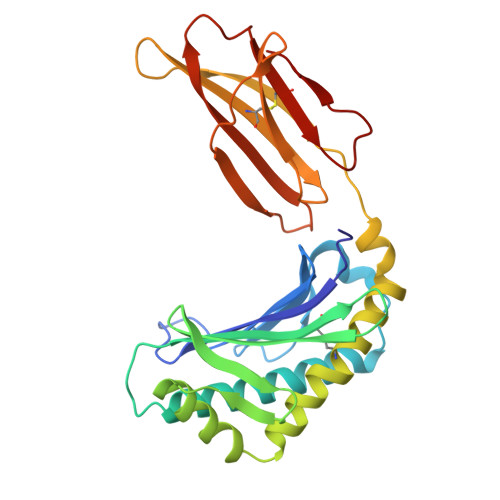

IgG receptor FcRn large subunit p51	A [auth G], C [auth I]	267	Homo sapiens	Mutation(s): 0  Gene Names: FCGRT, FCRN
UniProt & NIH Common Fund Data Resources
Find proteins for P55899 (Homo sapiens) Explore P55899  Go to UniProtKB:  P55899
PHAROS:  P55899 GTEx:  ENSG00000104870

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

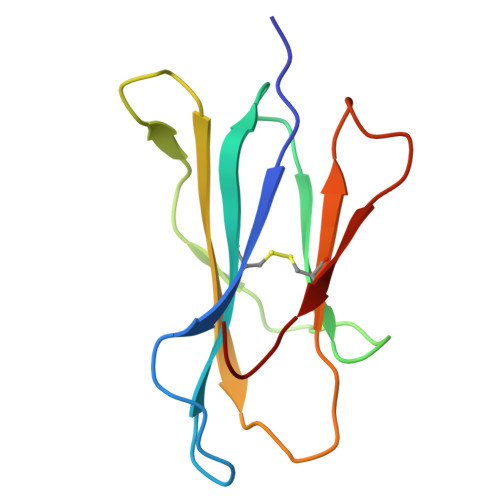

Beta-2-microglobulin	B [auth H], D [auth J]	99	Homo sapiens	Mutation(s): 0  Gene Names: B2M, CDABP0092, HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens) Explore P61769  Go to UniProtKB:  P61769
PHAROS:  P61769 GTEx:  ENSG00000166710

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

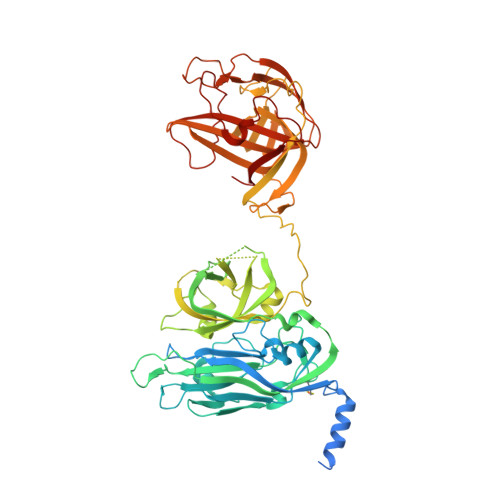

Capsid polyprotein VP90	E [auth A], H [auth D]	644	Human astrovirus 1	Mutation(s): 0
UniProt
Find proteins for A0A3G6VE21 (Human astrovirus-1) Explore A0A3G6VE21  Go to UniProtKB:  A0A3G6VE21

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

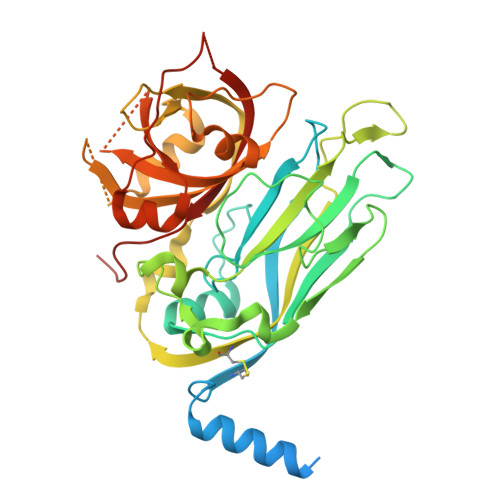

Capsid polyprotein VP70	F [auth B], G [auth C], I [auth E], J [auth F]	418	Human astrovirus 1	Mutation(s): 2
UniProt
Find proteins for O12792 (Human astrovirus-1) Explore O12792  Go to UniProtKB:  O12792

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.81 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-02-18
Deposition Author(s): Hall, P.D., Nelson, C.A., Fremont, D.H., Center for Structural Biology of Infectious Diseases (CSBID)

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93022C00035
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	T32AI106688
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	T32DK077653

Revision History

• Version 1.0: 2026-02-18
  Type: Initial release
