9NAH | pdb_00009nah

Monomeric AVAST5 binds a SIR2 domain

PDB DOI: https://doi.org/10.2210/pdb9NAH/pdb
EM Map EMD-49194: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Escherichia coli
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-02-12 Released: 2026-08-26
Deposition Author(s): Xie, J., Wang, C., Fu, T.M.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.64 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9NAH

This is version 1.0 of the entry. See complete history.

Literature

Monomeric AVAST5 binds an SIR2 domain

Xie, J., Fu, T.M.

To be published.

Macromolecule Content

Total Structure Weight: 179.01 kDa
Atom Count: 7,180
Modeled Residue Count: 1,020
Deposited Residue Count: 1,538
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

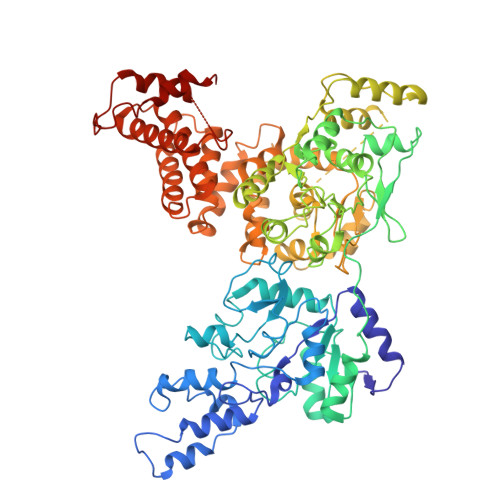

SIR2 family protein	A, B [auth C]	769	Escherichia coli	Mutation(s): 0 Gene Names: FPI65_07120
UniProt
Find proteins for A0A6N9S4L0 (Escherichia coli) Explore A0A6N9S4L0 Go to UniProtKB: A0A6N9S4L0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A6N9S4L0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.64 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC
MODEL REFINEMENT	PHENIX	1.21.2_5419

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
