9NA0 | pdb_00009na0

Main protease of HKU8 in complex with AVI8122

PDB DOI: https://doi.org/10.2210/pdb9NA0/pdb

Classification: VIRAL PROTEIN
Organism(s): Miniopterus bat coronavirus HKU8
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-02-11 Released: 2026-02-18
Deposition Author(s): Chen, P., Lu, J., Lemieux, M.J.
Funding Organization(s): Canadian Institutes of Health Research (CIHR)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free:
0.206 (Depositor), 0.206 (DCC)
R-Value Work:
0.197 (Depositor), 0.197 (DCC)
R-Value Observed:
0.198 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9NA0

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Identification of Inhibitors Broadly Against Main Proteases of coronavirus

Chen, P., Lu, J., Lemieux, M.J.

To be published.

Macromolecule Content

Total Structure Weight: 33.39 kDa
Atom Count: 2,563
Modeled Residue Count: 301
Deposited Residue Count: 302
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

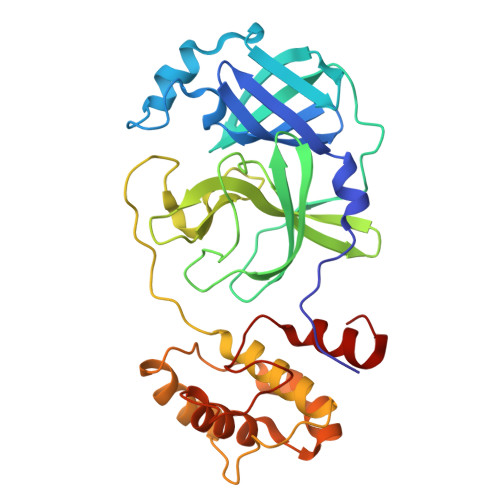

main protease	A	302	Miniopterus bat coronavirus HKU8	Mutation(s): 0 Gene Names: orf1ab, 6610_gp1

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1BWH (Subject of Investigation/LOI) Query on A1BWH Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	N-[(2S)-3-cyclopropyl-1-({(2S,3S)-3,4-dihydroxy-1-[(3S)-2-oxopiperidin-3-yl]butan-2-yl}amino)-1-oxopropan-2-yl]-7-fluoro-1H-indole-2-carboxamide C₂₄ H₃₁ F N₄ O₅ SXZDNPUJTOHKJI-TXJVSEOTSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free: 0.206 (Depositor), 0.206 (DCC)
R-Value Work: 0.197 (Depositor), 0.197 (DCC)
R-Value Observed: 0.198 (Depositor)

Space Group: P 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 47.374	α = 90
b = 57.987	β = 90
c = 106.168	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-02-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Canadian Institutes of Health Research (CIHR)	Canada	--

Revision History (Full details and data files)

Version 1.0: 2026-02-18
Type: Initial release
