9N84 | pdb_00009n84

Yeast TIM23 complex inhibited by stendomycin


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9N84

This is version 1.0 of the entry. See complete history

Literature

Topogenic sequence recognition at TIM complexes revealed by a stendomycin-bound structure.

Chen, Y.Lurie, A.Wu, K.Nam, K.Garcia, S.N.Dempsey, N.W.M.Svenningsen, E.B.Torring, T.Poulsen, T.B.Ordureau, A.Park, E.

(2026) Nat Chem Biol

  • DOI: https://doi.org/10.1038/s41589-026-02304-z
  • Primary Citation Related Structures:
    9N84

  • PubMed Abstract:

    In the mitochondrial inner membrane (IM), topogenesis of imported proteins is mediated by TIM23 and TIM22 complexes. TIM23 translocates soluble polypeptides across the IM into the matrix, whereas TIM22 inserts polytopic membrane proteins into the IM. Although functionally distinct, both rely on homologous subunits, Tim17 in TIM23 and Tim22 in TIM22. The underlying mechanisms, however, remain elusive. Here we use structural and functional approaches with yeast Tim17, Tim22 and the TIM23 inhibitor stendomycin. Cryogenic-electron microscopy shows that stendomycin binds to the protein translocation cavity of Tim17, mimicking α-helical topogenic sequences. While Tim22 does not bind stendomycin, a single mutation in its equivalent cavity suffices to enable binding. The cavities of Tim17 and Tim22 are largely interchangeable without disrupting their functions. Lastly, stendomycin triggers a collapse of the membrane potential, likely via its Tim17- or Tim22-dependent translocation across the IM. These findings reveal a mechanistic overlap between protein translocases and insertases.


  • Organizational Affiliation
    • Department of Molecular and Cell Biology, University of California, Berkeley, CA, USA.

Macromolecule Content

  • Total Structure Weight: 144.31 kDa
  • Atom Count: 5,854
  • Modeled Residue Count: 774
  • Deposited Residue Count: 1,301
  • Unique protein chains: 6

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

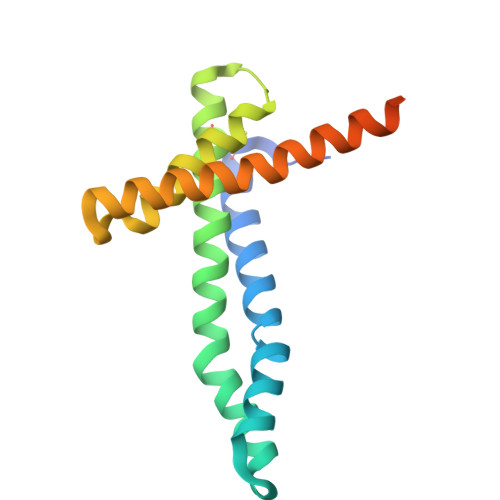

Mitochondrial import inner membrane translocase subunit TIM17158Saccharomyces cerevisiaeMutation(s): 0
Gene Names: TIM17MIM17MPI2SMS1YJL143WJ0648
EC: 7.4.2.3
UniProt
Find proteins for P39515 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P39515
Go to UniProtKB:  P39515
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP39515
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

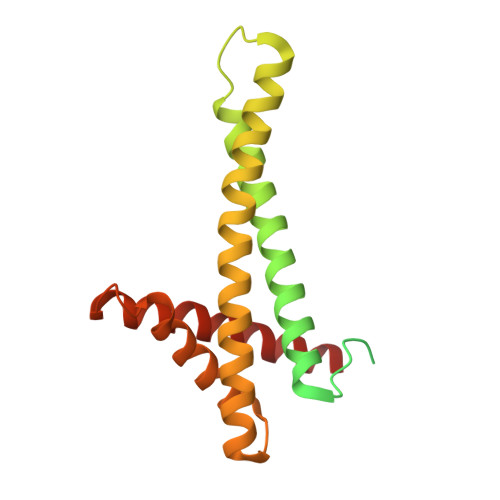

Mitochondrial import inner membrane translocase subunit TIM23222Saccharomyces cerevisiaeMutation(s): 0
Gene Names: TIM23MAS6MIM23MPI3YNR017WN3180
UniProt
Find proteins for P32897 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32897
Go to UniProtKB:  P32897
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32897
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

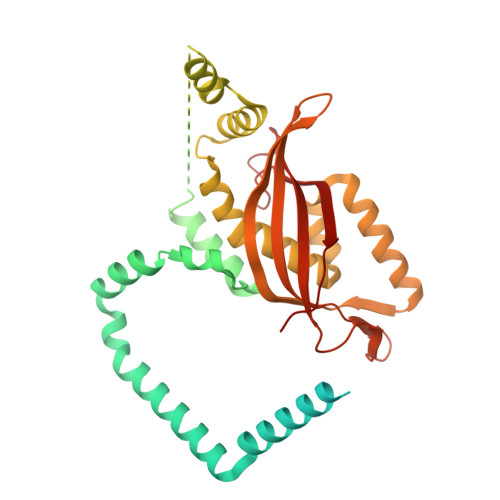

Mitochondrial import inner membrane translocase subunit TIM44431Saccharomyces cerevisiaeMutation(s): 0
Gene Names: TIM44ISP45MIM44MPI1YIL022W
UniProt
Find proteins for Q01852 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q01852
Go to UniProtKB:  Q01852
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ01852
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

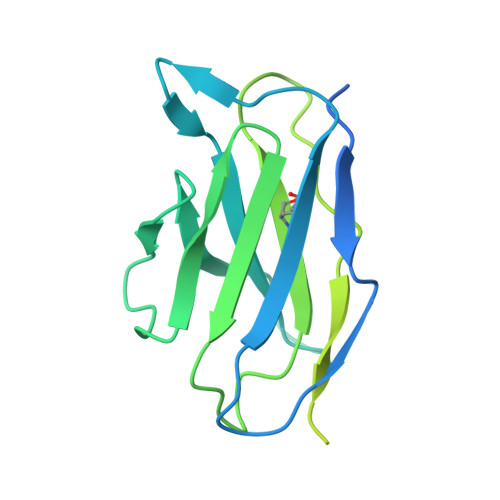

Antibody Fab fragment light chainD [auth L]238Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

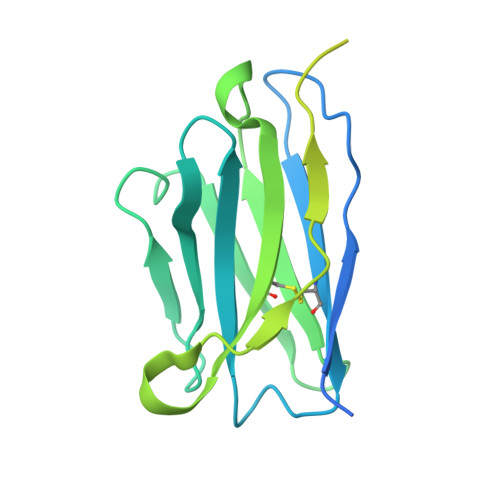

Antibody Fab fragment heavy chainE [auth H]238Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

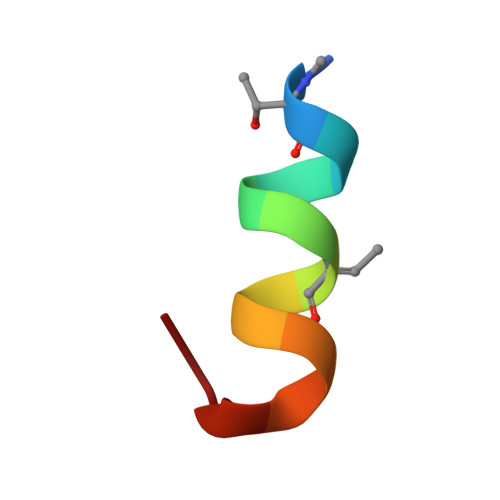

Stendomycin VF [auth D]14synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Modified Residues  7 Unique
IDChains TypeFormula2D DiagramParent
28J
Query on 28J
F [auth D]D-PEPTIDE LINKINGC6 H13 N O2

--

2TL
Query on 2TL
F [auth D]D-PEPTIDE LINKINGC4 H9 N O3

--

A1BW3
Query on A1BW3
F [auth D]L-PEPTIDE LINKINGC8 H16 N4 O2

--

DAL
Query on DAL
F [auth D]D-PEPTIDE LINKINGC3 H7 N O2

--

DBU
Query on DBU
F [auth D]PEPTIDE LINKINGC4 H7 N O2THR
DVA
Query on DVA
F [auth D]D-PEPTIDE LINKINGC5 H11 N O2

--

NZC
Query on NZC
F [auth D]L-PEPTIDE LINKINGC5 H11 N O3THR

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data

  • Released Date: 2026-09-16
  • Deposition Author(s): Park, E.

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM147628
The Pew Charitable TrustsUnited States--

Revision History  (Full details and data files)

  • Version 1.0: 2026-09-16
    Type: Initial release
