9N2T | pdb_00009n2t

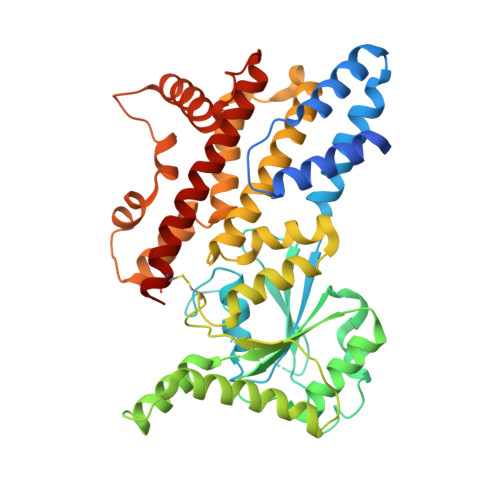

Structure of GDP-bound GM4951_D125G mutant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:
    0.267 (Depositor), 0.268 (DCC)
  • R-Value Work:
    0.233 (Depositor), 0.230 (DCC)
  • R-Value Observed:
    0.234 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural insights into GM4951 as a lipid droplet GTPase regulating hepatic lipid metabolism.

Raj, R.Jiang, Y.Jha, R.K.Moresco, E.M.Y.Joshi, H.Zhang, Z.Beutler, B.

(2025) Nat Commun 16: 11458-11458

  • DOI: https://doi.org/10.1038/s41467-025-66253-2
  • Primary Citation of Related Structures:
    9N2Q, 9N2R, 9N2S, 9N2T, 9N6D

  • PubMed Abstract:

    GM4951 is an immunity-related GTPase (IRG) that counteracts hepatic lipid accumulation in mice fed a high-fat diet. We determine full-length protein structures of GTPγS- and GDP-bound GM4951, and two missense mutants (N86K or D125G) associated with metabolic dysfunction-associated steatotic liver disease (MASLD) in mice. All four structures reveal a conserved GTPase domain fold and a helix bundle composed of the N- and C-terminal regions. Each mutation alters the dynamics of the switch-I and switch-II loops important for catalytic function and lipid droplet (LD) localization. GM4951 predominantly forms dimers in vitro. Cryo-electron microscopy reveals a dimer interface formed by the helical domains of two protomers (tail to tail), distinct from other IRGs. The N-terminal helices are necessary for LD localization, while a disulfide bond between helices in the GTPase domain and C-terminus is necessary for interaction with MASLD-associated HSD17B13. Distinct N- and C-terminal conformations set GM4951 apart from other IRGs structurally and functionally.


  • Organizational Affiliation
    • Center for the Genetics of Host Defense, University of Texas Southwestern Medical Center, Dallas, TX, USA. Rishi.Raj@UTSouthwestern.edu.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Interferon inducible GTPase 1CA [auth B],
B [auth A],
C
416Mus musculusMutation(s): 1
Gene Names: Iigp1cEG240327Gm4951Ifgga2
UniProt & NIH Common Fund Data Resources
Find proteins for Q3UED7 (Mus musculus)
Explore Q3UED7
Go to UniProtKB:  Q3UED7
IMPC:  MGI:3644953
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3UED7
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:  0.267 (Depositor), 0.268 (DCC)
  • R-Value Work:  0.233 (Depositor), 0.230 (DCC)
  • R-Value Observed: 0.234 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 297.816α = 90
b = 58.909β = 92.03
c = 100.679γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR01 AI125581

Revision History  (Full details and data files)

  • Version 1.0: 2026-01-14
    Type: Initial release
