9MZ7 | pdb_00009mz7

Crystal Structure of 19b Fab bound to the third variable (V3) loop peptide from the HIV-1 92BR020 envelope (Env) glycoprotein

• PDB DOI: https://doi.org/10.2210/pdb9MZ7/pdb

• Classification: IMMUNE SYSTEM/VIRAL PROTEIN
• Organism(s): Homo sapiens, Human immunodeficiency virus 1
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2025-01-22 Released: 2026-01-21
• Deposition Author(s): Fetics, S., Acharya, P.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.94 Å
• R-Value Free:
  0.269 (Depositor), 0.269 (DCC)
• R-Value Work:
  0.220 (Depositor), 0.220 (DCC)
• R-Value Observed:
  0.222 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of 19b Fab Bound to HIV-1 Env 92BR020 Peptide

Fetics, S., Acharya, P.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 51.2 kDa
• Atom Count: 3,835
• Modeled Residue Count: 438
• Deposited Residue Count: 473
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

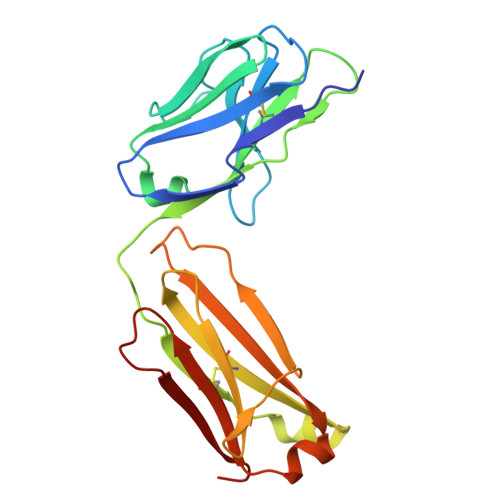

19b Fab Light Chain	A	214	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
19b Fab Heavy Chain	B	216	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

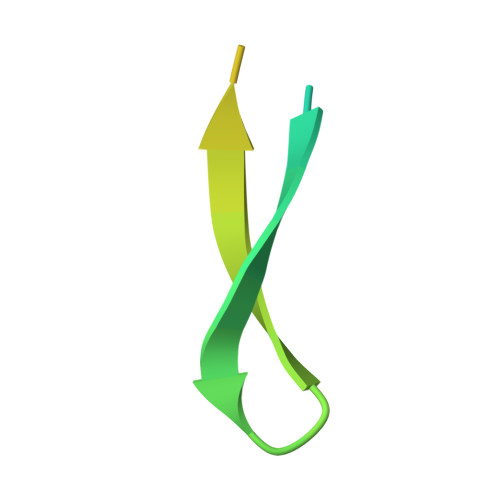

92BR020 Envelope glycoprotein	C [auth D]	43	Human immunodeficiency virus 1	Mutation(s): 0
UniProt
Find proteins for A8DM03 (Human immunodeficiency virus type 1) Explore A8DM03  Go to UniProtKB:  A8DM03

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
SO4	D [auth A], E [auth A], H [auth B]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
NA	F [auth A], G [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.94 Å
• R-Value Free:  0.269 (Depositor), 0.269 (DCC)
• R-Value Work:  0.220 (Depositor), 0.220 (DCC)
• R-Value Observed: 0.222 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 46.572	α = 90
b = 81.454	β = 90
c = 134.16	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-01-21
Deposition Author(s): Fetics, S., Acharya, P.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History

• Version 1.0: 2026-01-21
  Type: Initial release
