9MXK | pdb_00009mxk

BRD4-BD1 in complex with cyclic peptide 4.1C

PDB DOI: https://doi.org/10.2210/pdb9MXK/pdb

Classification: GENE REGULATION
Organism(s): Homo sapiens, synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-01-20 Released: 2026-04-22
Deposition Author(s): Patel, K., Pachl, P., Mackay, J.P.
Funding Organization(s): National Health and Medical Research Council (NHMRC, Australia)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.73 Å
R-Value Free:
0.213 (Depositor), 0.228 (DCC)
R-Value Work:
0.176 (Depositor), 0.190 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MXK

This is version 1.0 of the entry. See complete history.

Literature

BRD4-BD1 in complex with cyclic peptide 4.1C

Patel, K., Mackay, J.P.

To be published.

Macromolecule Content

Total Structure Weight: 54.43 kDa
Atom Count: 3,504
Modeled Residue Count: 410
Deposited Residue Count: 453
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

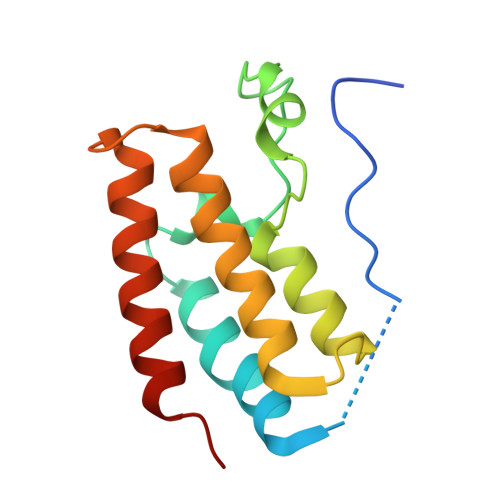

Bromodomain-containing protein 4	A, C [auth D], E [auth I]	133	Homo sapiens	Mutation(s): 0 Gene Names: BRD4, HUNK1
UniProt & NIH Common Fund Data Resources
Find proteins for O60885 (Homo sapiens) Explore O60885 Go to UniProtKB: O60885
PHAROS: O60885 GTEx: ENSG00000141867
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O60885
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

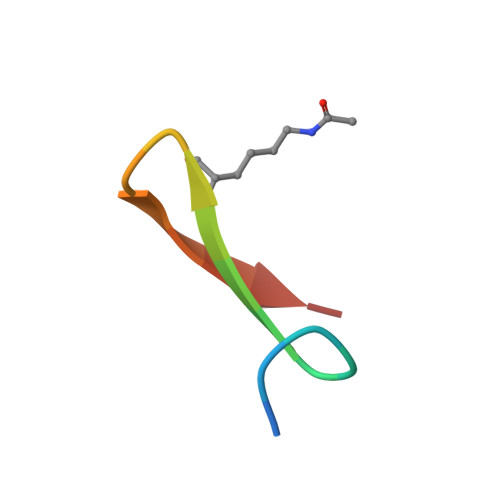

4.1C	B, D [auth E], F [auth J]	18	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1PE Query on 1PE Download:Ideal Coordinates CCD File SDF format, chain J [auth I] SDF format, chain I SDF format, chain H [auth D] SDF format, chain G [auth A] MOL2 format, chain J [auth I] MOL2 format, chain I MOL2 format, chain H [auth D] MOL2 format, chain G [auth A] mmCIF format, chain J [auth I] mmCIF format, chain I mmCIF format, chain H [auth D] mmCIF format, chain G [auth A]	G [auth A], H [auth D], I, J [auth I]	PENTAETHYLENE GLYCOL C₁₀ H₂₂ O₆ JLFNLZLINWHATN-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth D] Focus chain I Focus chain J [auth I] Interactions & Density Focus chain G [auth A] Focus chain H [auth D] Focus chain I Focus chain J [auth I]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
ALY Query on ALY	B, D [auth E], F [auth J]	L-PEPTIDE LINKING	C₈ H₁₆ N₂ O₃		LYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.73 Å
R-Value Free: 0.213 (Depositor), 0.228 (DCC)
R-Value Work: 0.176 (Depositor), 0.190 (DCC)

Space Group: P 3₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 70.121	α = 90
b = 70.121	β = 90
c = 90.16	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data reduction
autoPROC	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-22

Deposition Author(s):

Funding Organization	Location	Grant Number
National Health and Medical Research Council (NHMRC, Australia)	Australia	--

Revision History (Full details and data files)

Version 1.0: 2026-04-22
Type: Initial release
