9MVW | pdb_00009mvw

Crystal structure of S101F calmodulin - CaM:RM20 analog complex

• PDB DOI: https://doi.org/10.2210/pdb9MVW/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2025-01-16 Released: 2026-01-21
• Deposition Author(s): Brunzelle, J.S., Shuvalova, L., Watterson, D.M.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.58 Å
• R-Value Free:
  0.237 (Depositor), 0.242 (DCC)
• R-Value Work:
  0.213 (Depositor), 0.213 (DCC)
• R-Value Observed:
  0.215 (Depositor)

Starting Model: experimental

Literature

Crystal structure of S101F calmodulin - CaM:RM20 analog complex

Brunzelle, J.S., Shuvalova, L., Watterson, D.M.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 19.42 kDa
• Atom Count: 1,566
• Modeled Residue Count: 169
• Deposited Residue Count: 171
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

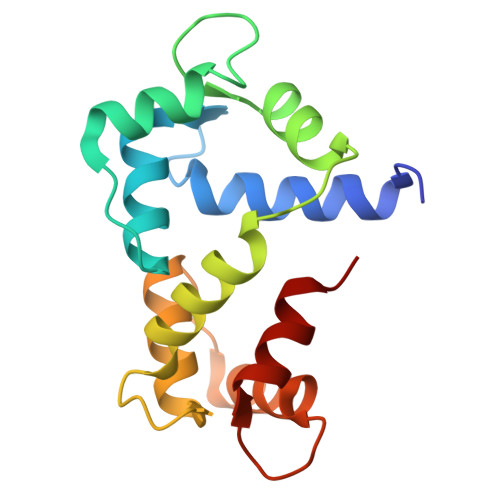

Calmodulin-1	A	149	Homo sapiens	Mutation(s): 1  Gene Names: CALM1, CALM, CAM, CAM1
UniProt & NIH Common Fund Data Resources
Find proteins for P0DP23 (Homo sapiens) Explore P0DP23  Go to UniProtKB:  P0DP23
PHAROS:  P0DP23 GTEx:  ENSG00000198668

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

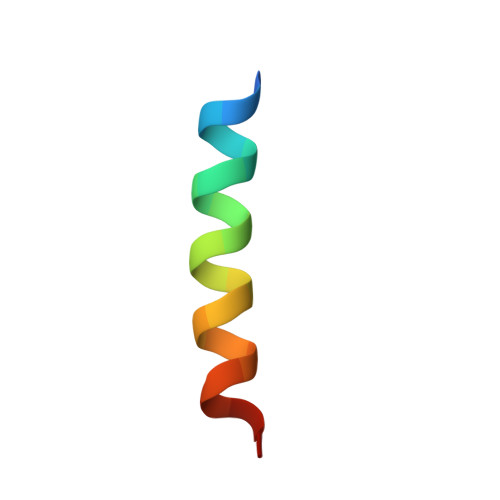

Myosin light chain kinase, smooth muscle	B	22	Homo sapiens	Mutation(s): 2  EC: 2.7.11.18
UniProt & NIH Common Fund Data Resources
Find proteins for Q15746 (Homo sapiens) Explore Q15746  Go to UniProtKB:  Q15746
PHAROS:  Q15746 GTEx:  ENSG00000065534

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CA (Subject of Investigation/LOI)	C [auth A], D [auth A], E [auth A], F [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.58 Å
• R-Value Free:  0.237 (Depositor), 0.242 (DCC)
• R-Value Work:  0.213 (Depositor), 0.213 (DCC)
• R-Value Observed: 0.215 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 29.58	α = 90
b = 57.171	β = 90
c = 97.831	γ = 90

Software Package:

Software Name	Purpose
autoPROC	data reduction
Aimless	data scaling
PHASER	phasing
PHENIX	refinement

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-01-21
Deposition Author(s): Brunzelle, J.S., Shuvalova, L., Watterson, D.M.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History

• Version 1.0: 2026-01-21
  Type: Initial release
