9MAZ | pdb_00009maz

Helical Reconstruction of DENV2 US/BID-V594/2006 tubular particles bound with J9 fab

PDB DOI: https://doi.org/10.2210/pdb9MAZ/pdb
EM Map EMD-63762: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): dengue virus type 2, Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-03-14 Released: 2026-04-01
Deposition Author(s): Roy, A., Prasad, V.M.
Funding Organization(s): Science and Engineering Research Board (SERB), Department of Biotechnology (DBT, India)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 38.5 Å
Aggregation State: PARTICLE
Reconstruction Method: HELICAL

Starting Models: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MAZ

This is version 1.0 of the entry. See complete history.

Literature

Structural determinants of broadly neutralizing human antibodies binding to morphological dengue virus variants.

Chatterjee, A., Roy, A., Srinivasan, S., Charles, S., Lubow, J., Goo, L., Prasad, V.M.

To be published.

Macromolecule Content

Total Structure Weight: 203.45 kDa
Atom Count: 12,780
Modeled Residue Count: 1,666
Deposited Residue Count: 1,868
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

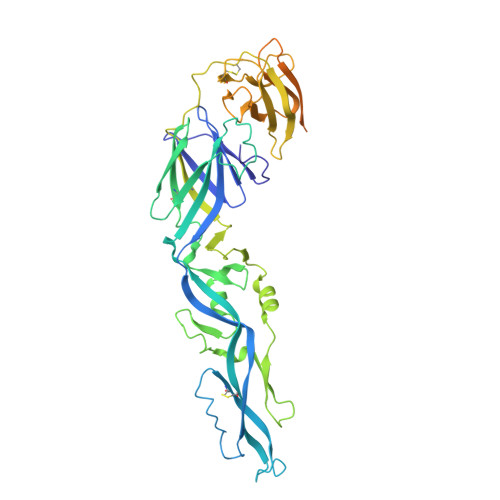

Envelope Glycoprotein E	A, B [auth C]	495	dengue virus type 2	Mutation(s): 0
UniProt
Find proteins for B1PP76 (Dengue virus type 2) Explore B1PP76 Go to UniProtKB: B1PP76
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B1PP76
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

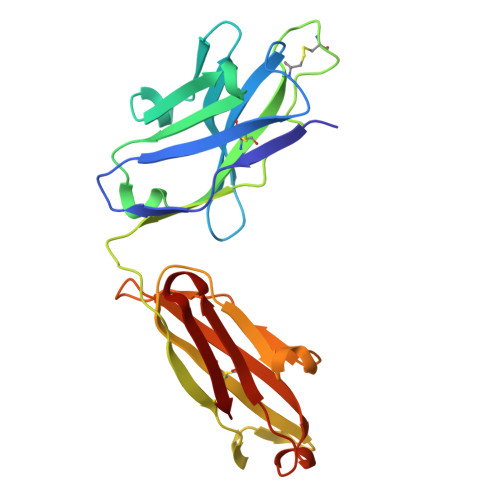

J9 Heavy chain variable region	C [auth H], D [auth K]	222	Homo sapiens	Mutation(s): 0 Gene Names: J9 Heavy chain variable

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

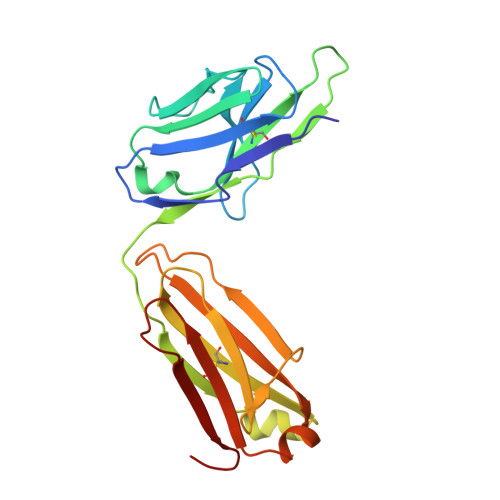

J9 Light chain variable region	E [auth L], F [auth M]	217	Homo sapiens	Mutation(s): 0 Gene Names: J9 Light chain variable

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 38.5 Å
Aggregation State: PARTICLE
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
RECONSTRUCTION	RELION	4.0.1

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
Science and Engineering Research Board (SERB)	India	SPG/2021/002433
Department of Biotechnology (DBT, India)	India	IA/I/22/1/506233

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
