9MAS | pdb_00009mas

Metal Beta Lactamase VIM-2 in Complex with Dual MBL/SBL Inhibitor 3


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.76 Å
  • R-Value Free:
    0.261 (Depositor), 0.266 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.224 (DCC)
  • R-Value Observed:
    0.217 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MAS

Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history

Literature

Structural Optimization of Bicyclic Oxo-Boronates as Dual Metallo- and Serine-beta-Lactamase Inhibitors.

Yang, Z.B.Wei, S.Q.Wang, Y.G.Dong, X.M.Xu, H.X.Li, X.L.Peng, J.Yin, R.C.Li, G.B.

(2025) J Med Chem 68: 21807-21828

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c02230
  • Primary Citation Related Structures:
    9MAS, 9MB4

  • PubMed Abstract:

    Gram-negative bacterial resistance to β-lactam antibiotics is a growing clinical problem, largely driven by the production of metallo-β-lactamases (MBLs) and serine-β-lactamases (SBLs). Developing dual inhibitors targeting both MBLs and SBLs has emerged as a focus in the fight against β-lactam resistance. We previously identified the bicyclic oxo-boronate CB1 as a dual MBL/SBL inhibitor through molecular generation based on the binding mode of carbapenem tetrahedral intermediates. Herein, we report the structural optimization of CB1 , yielding new bicyclic oxo-boronates with potent dual MBL/SBL inhibition, some of which could potentiate Meropenem efficacy against carbapenem-resistant Gram-negative superbugs. X-ray crystallography revealed a common binding mode of bicyclic oxo-boronates with VIM-2/NDM-1 MBL and OXA-48 SBL, mimicking the binding of carbapenem intermediates. YL6113 exhibited pharmacokinetic characteristics similar to Meropenem and manifested efficacy when combined with Meropenem in a murine sepsis model. This work provides the basis for developing oxo-boronate-based inhibitors targeting MBLs/SBLs and other relevant targets.


  • Organizational Affiliation
    • Key Laboratory of Drug-Targeting and Drug Delivery System of the Education Ministry and Sichuan Province, Department of Medicinal Chemistry, West China School of Pharmacy, Sichuan University, Chengdu 610041, China.

Macromolecule Content

  • Total Structure Weight: 57.97 kDa
  • Atom Count: 3,687
  • Modeled Residue Count: 464
  • Deposited Residue Count: 532
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

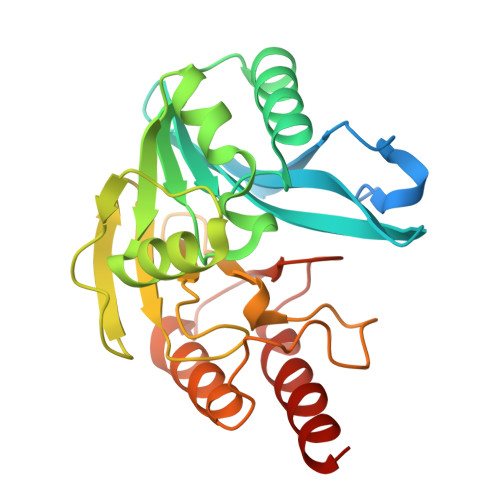

Metallo-beta-lactamase VIM-2
A, B
266Escherichia coliMutation(s): 0
Gene Names: VIM-2blaVIM-2VIM2
EC: 3.5.2.6
UniProt
Find proteins for Q5U7L7 (Escherichia coli)
Explore Q5U7L7
Go to UniProtKB:  Q5U7L7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5U7L7
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1ENM
(Subject of Investigation/LOI)

Query on A1ENM



Download:Ideal Coordinates CCD File
E [auth A],
L [auth B]
9-[(4-methylpyrazol-1-yl)methyl]-3,3-bis(oxidanyl)-2,5-dioxa-3-boranuidabicyclo[4.4.0]deca-1(6),7,9-triene-10-carboxylic acid
C13 H14 B N2 O6
QNYKHWXDBHIASO-UHFFFAOYSA-N
ZN

Query on ZN



Download:Ideal Coordinates CCD File
C [auth A],
D [auth A],
I [auth B],
J [auth B],
K [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
FMT

Query on FMT



Download:Ideal Coordinates CCD File
F [auth A]
G [auth A]
H [auth A]
M [auth B]
N [auth B]
F [auth A],
G [auth A],
H [auth A],
M [auth B],
N [auth B],
O [auth B],
P [auth B]
FORMIC ACID
C H2 O2
BDAGIHXWWSANSR-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.76 Å
  • R-Value Free:  0.261 (Depositor), 0.266 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.224 (DCC)
  • R-Value Observed: 0.217 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 65.642α = 90
b = 80.073β = 90
c = 80.104γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
SCALEPACKdata scaling
HKL-3000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China82473845, 82122065

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-11
    Type: Initial release
