9M8K | pdb_00009m8k

cryo-EM structure of human TAS2R4 with oligopeptide

• PDB DOI: https://doi.org/10.2210/pdb9M8K/pdb
• EM Map EMD-63712: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens, Mus musculus, synthetic construct
• Expression System: Spodoptera frugiperda
• Mutation(s): No


• Deposited: 2025-03-12 Released: 2026-03-18
• Deposition Author(s): Tan, M., Wu, J.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Receptor hyper-flexibility for detecting diverse bitter tastes revealed by the significant structural rearrangements in human bitter taste receptor TAS2R4

Tan, M., Wu, J.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 6-mer - A1B1C1D1E1F1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 148.19 kDa
• Atom Count: 8,992
• Modeled Residue Count: 1,147
• Deposited Residue Count: 1,332
• Unique protein chains: 6

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

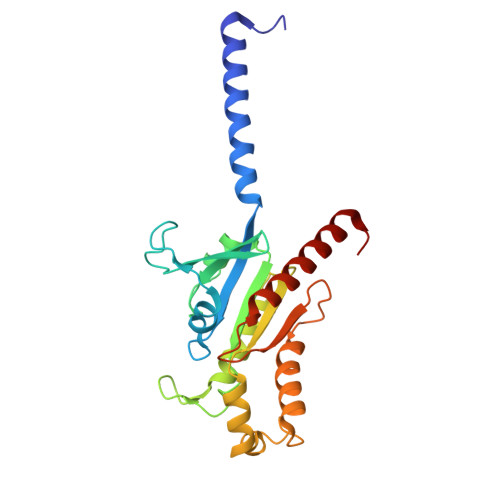

Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(t) subunit alpha-3	A	239	Homo sapiens	Mutation(s): 0  Gene Names: GNAI1, GNAT3 EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for A8MTJ3 (Homo sapiens) Explore A8MTJ3  Go to UniProtKB:  A8MTJ3
PHAROS:  A8MTJ3 GTEx:  ENSG00000214415
Find proteins for P63096 (Homo sapiens) Explore P63096  Go to UniProtKB:  P63096
PHAROS:  P63096 GTEx:  ENSG00000127955
UniProt Groups	P63096A8MTJ3

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

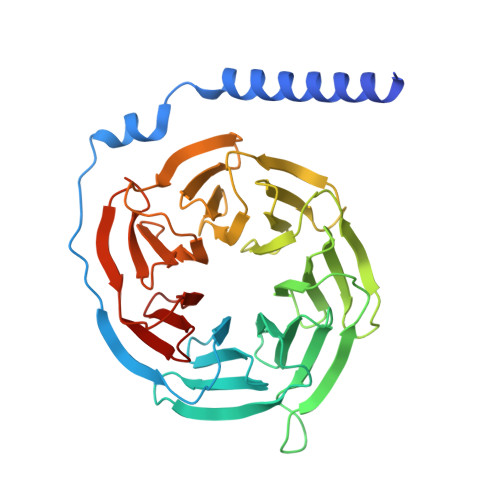

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-3	B	351	Homo sapiens	Mutation(s): 0  Gene Names: GNB3
UniProt & NIH Common Fund Data Resources
Find proteins for P16520 (Homo sapiens) Explore P16520  Go to UniProtKB:  P16520
PHAROS:  P16520 GTEx:  ENSG00000111664

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

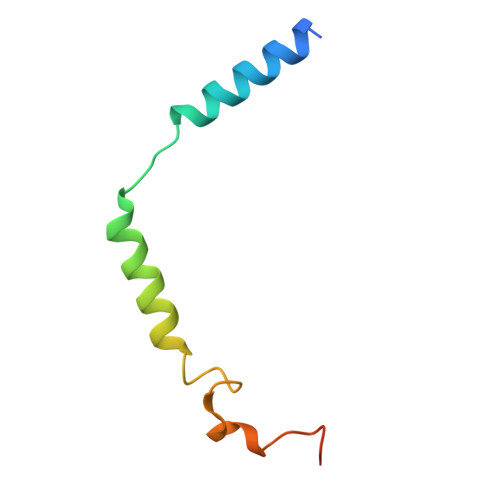

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-13	C [auth G]	67	Homo sapiens	Mutation(s): 0  Gene Names: GNG13
UniProt & NIH Common Fund Data Resources
Find proteins for Q9P2W3 (Homo sapiens) Explore Q9P2W3  Go to UniProtKB:  Q9P2W3
PHAROS:  Q9P2W3 GTEx:  ENSG00000127588

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

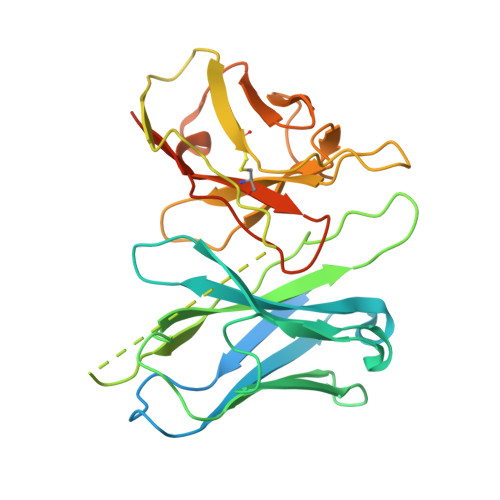

Single-chain variable fragment 16	D [auth N]	307	Mus musculus	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Taste receptor type 2 member 4	E [auth R]	365	Homo sapiens	Mutation(s): 0  Gene Names: TAS2R4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NYW5 (Homo sapiens) Explore Q9NYW5  Go to UniProtKB:  Q9NYW5
PHAROS:  Q9NYW5 GTEx:  ENSG00000127364

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

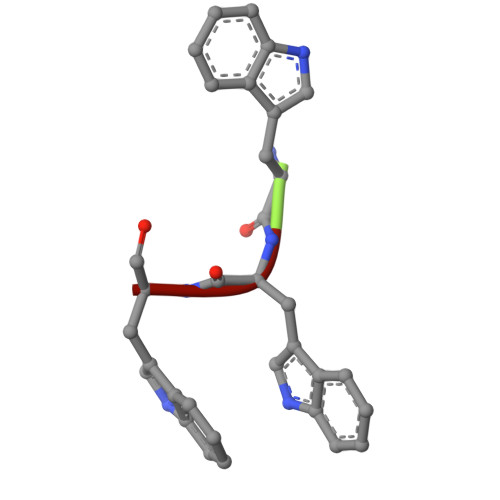

TRP-TRP-TRP	F [auth S]	3	synthetic construct	Mutation(s): 0

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21_5207:

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-03-18
Deposition Author(s): Tan, M., Wu, J.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2026-03-18
  Type: Initial release
