9M7Z | pdb_00009m7z

Cryo-EM structure of gp79 bound RNAP core enzyme


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 5.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

A phage transcription factor displaces the host sigma factor and stabilizes its own sigma factor.

Xu, L.Liang, L.Yuan, L.Yao, Y.Hua, X.Feng, Y.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf683
  • Primary Citation of Related Structures:
    9M7Y, 9M7Z

  • PubMed Abstract:

    Phages are the most abundant self-replicating entities on earth, and understanding their transcriptional regulation can provide insights into bacterial gene expression mechanisms. The bacterial RNA polymerase core enzyme interacts with various σ factors to recognize and unwind promoter DNA. Gp79, a protein from Escherichia coli phage phiEco32, inhibits host σ70-mediated transcription while simultaneously activating transcription through its own σ factor, gp36. The underlying mechanism of this unusual dual regulatory role has remained unclear. In this study, we present cryo-EM structures of E. coli RNA polymerase (RNAP) in complex with gp79, and of RNAP in complex with gp79, gp36, and a cognate promoter. Structural and biochemical analyses reveal the basis for σ displacement by gp79 and promoter recognition by gp36. Our findings show that the N-terminus of gp79 invades the RNA channel, effectively displacing σ4. Upon encountering gp36, the N-terminus of gp79 adopts a new conformation, binds to gp36, and stabilizes the RNAP-promoter open complex. These findings advance our understanding of phage transcriptional regulation and suggest potential applications for synthetic biology.


  • Organizational Affiliation
    • Department of Infectious Diseases, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou 310001, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

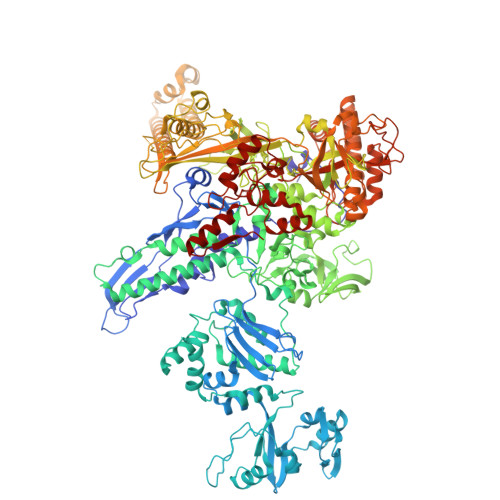

DNA-directed RNA polymerase subunit beta1,342Escherichia coliMutation(s): 0
Gene Names:
rpoBA5U30_004588A8502_003926ACN81_23170ACU57_23190B6R15_000401B6R31_004825BANRA_02657BCB93_004500BE932_19390BG944_004751BGM66_002187BGZ_01825BGZ_04900BJI68_24530BK292_28030BK383_27725BKL28_004342BR158_004263BTB68_004076BTQ06_27270BvCmsKKP061_02983BvCmsSIP010_03567C0P57_003017C1Q91_004815C2121_004048C2R31_004867C3F40_15465CF22_004730CG704_19805CIG67_06965CQ842_10385CQ842_21775CTR35_004065CV83915_02066D3G36_22420D4M65_19260D4N09_21555D9D43_22310D9E49_24270D9J61_19510DIV22_03740DNX30_24150DS732_01545DTL43_13705DU321_23430E2865_05183E4K51_22915E5H86_23040E6D34_20875EAI46_11700ECs4910EIA08_23405EIZ93_16330EN85_004184EPS97_19155EWK56_25655ExPECSC038_04328F7F11_23820F7N46_22875F9413_20760F9461_25105F9B07_23665FGAF848_44560FIJ20_20105FJQ40_20830FKO60_24820FOI11_015715FOI11_24355FPS11_24520FVB16_05295FZU14_22850G3V95_20435G3W53_22320G4A38_22925G4A47_22785G5603_24105GAI89_24240GAJ12_23550GFY48_22990GKF66_20530GNW61_19025GNZ05_25255GOP25_23375GP711_23600GP954_05260GP965_06575GP975_06485GP979_07405GQA06_03465GQE86_18840GQM04_07515GQM13_25050GQM21_14970GQN34_23560GQW07_19570GRC73_22185GRO95_18745GRW05_10060GRW24_04150GUC01_23010H0O53_14775H0O72_20915HEP30_021890HEP34_004579HHH44_004416HI055_004310HJQ60_004917HLX92_23670HLZ50_21725HMV95_21225HMW38_24340HV109_22425HV209_21195HVV39_13135HVW04_13835HVY77_24375I6H00_17170J0541_004716J5U05_003962JNP96_01275NCTC10082_02081NCTC10089_04873NCTC10418_07146NCTC10764_02972NCTC10767_00716NCTC10865_05895NCTC10974_05351NCTC11112_02281NCTC11341_02774NCTC7927_05249NCTC8179_05096NCTC8333_05558NCTC8500_05325NCTC8621_04872NCTC8959_04064NCTC8960_02340NCTC9001_04473NCTC9044_02304NCTC9075_06427NCTC9081_06476NCTC9117_05904NCTC9706_02003OGM49_00575P6223_004406QDW62_24495RZR61_19915SAMEA3472112_05166SAMEA3752557_04843WR15_01485

EC: 2.7.7.6
UniProt
Find proteins for P0A8V2 (Escherichia coli (strain K12))
Explore P0A8V2
Go to UniProtKB:  P0A8V2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8V2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

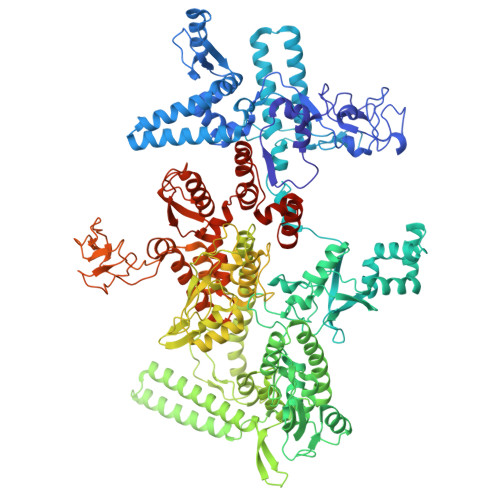

DNA-directed RNA polymerase subunit beta'1,407Escherichia coliMutation(s): 0
Gene Names:
rpoCACN81_23175ACU57_23185B6R15_000400B6R31_004826BANRA_02658BANRA_05060BCB93_004501BG944_004752BGM66_002186BGZ_01824BGZ_04901BJI68_24535BK292_28025BK383_27720BKL28_004343BTB68_004077BTQ06_27265BvCmsKKP061_02982BvCmsSIP010_03566BXT93_12730C0P57_003018C1Q91_004816CF22_004731CIG67_06970CQ842_10380CQ842_21770CTR35_004066CV83915_02065D4M65_19255D9D43_22315DD762_22280DIV22_03745DTL43_13700DU321_23425E2865_05184E4K51_22920E5H86_23045E6D34_20880EAI46_11695ECs4911EIZ93_16335EN85_004185EPS97_19150F7F11_23815F7N46_22880F9413_20765F9461_25110F9B07_23670FGAF848_44550FIJ20_20110FJQ40_20835FOI11_015710FOI11_24350FPS11_24525FVB16_05290FWK02_01680FZU14_22855G3V95_20430G4A38_22920G4A47_22780GAI89_24245GAJ12_23555GNW61_19030GOP25_23380GP954_05255GP965_06570GP975_06480GP979_07400GQA06_03470GQM04_07520GQM13_25045GQM21_14965GRW05_10055GRW24_04145GUC01_23005H0O72_20910HEP30_021895HEP34_004580HHH44_004417HI055_004311HJQ60_004916HLZ50_21730HMV95_21230HV109_22420HV209_21190HVW43_14980I6H00_17165I6H02_15720J0541_004717J5U05_003963JNP96_01280NCTC10082_02080NCTC10429_00081NCTC10865_05894NCTC10974_05350NCTC11181_01964NCTC13148_04414NCTC7927_05248NCTC8333_05557NCTC8500_05324NCTC8960_02339NCTC9044_02305NCTC9045_05541NCTC9077_05932NCTC9706_02002P6223_004407RZR61_19920SAMEA3472112_05167SAMEA3752557_04844WR15_01490

EC: 2.7.7.6
UniProt
Find proteins for P0A8T7 (Escherichia coli (strain K12))
Explore P0A8T7
Go to UniProtKB:  P0A8T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8T7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

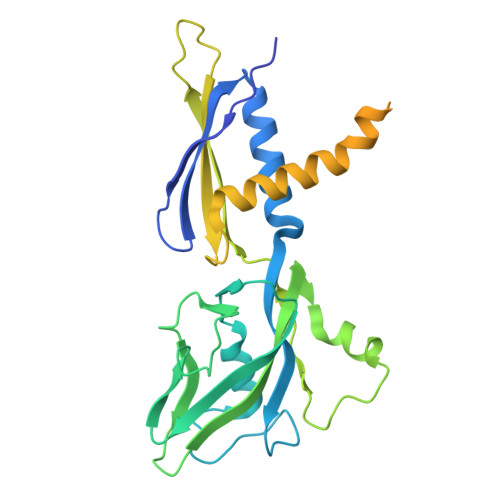

DNA-directed RNA polymerase subunit alpha
C, D
329Escherichia coliMutation(s): 0
Gene Names:
rpoAA5U30_004529A8502_004046ACN81_25405ACU57_21075AW118_24785AWP47_12760B6R15_004092B6R31_004991BANRA_01926BCB93_004270BE932_15420BER14_25075BG944_001110BGM66_003616BGZ_02613BGZ_04102BJI68_08790BK292_20390BK383_24760BR158_003767BTB68_004379BTQ06_10575BvCmsKKP061_03007BvCmsSIP010_02662BXT93_05590C0P57_002645C1Q91_004927C2121_004185C2R31_004610C3F40_19835C9Z68_22520CF22_004872CG704_20985CIG67_10790CQ842_14440CQ842_22230CTR35_003607CV83915_02803D3G36_23165D4M65_20540D4N09_20140D9D43_22665D9E49_05125D9J61_16620DD762_23515DIV22_15290DNQ45_03725DNX30_25510DS732_24230DTL43_21030DU321_11970E2865_04448E4K51_21460E5H86_24555E6D34_21790EAI46_07445ECs4160EIA08_23925EIZ93_12500EN85_004372EPS76_07245EPS97_20125EWK56_24965ExPECSC038_03663F7F11_22755F7N46_24040F9413_21265F9461_25685F9B07_24715FGAF848_26080FIJ20_21225FJQ40_18275FKO60_25605FOI11_019290FOI11_03890FPI65_20275FPS11_25460FVB16_04840FZU14_21790G3V95_19815G3W53_20925G4A38_21480G4A47_20750G5603_24555GAI89_24860GAJ12_24750GFY48_21540GKF66_21515GNW61_16600GNZ05_26015GOP25_22675GP711_23275GP954_00975GP975_01155GP979_02035GQA06_03980GQE86_20050GQM04_10535GQM13_25170GQM21_11200GQN34_23235GQW07_21580GRC73_21780GRO95_20845GRW05_09030GRW24_04785GUC01_21150H0O53_20860H0O72_19385HEP30_018605HEP34_004777HHH44_004542HI055_004133HIE29_005180HJQ60_005018HLX92_10105HLZ50_22210HMV95_19575HMW38_23075HV109_02220HV209_14745HVV39_09235HVW04_17565HVW43_18700HVY77_02205I6H00_20955I6H02_11960J0541_004390JNP96_25275NCTC10082_02846NCTC10089_00509NCTC10418_00698NCTC10767_01523NCTC10865_00668NCTC10974_00559NCTC11126_02779NCTC11181_02745NCTC11341_01882NCTC13148_03434NCTC7927_00558NCTC7928_02508NCTC8009_01520NCTC8179_05950NCTC8333_00496NCTC8500_00344NCTC8621_00515NCTC8622_00499NCTC8959_03254NCTC8960_03077NCTC9044_01349NCTC9077_00611NCTC9081_00926NCTC9117_00762NCTC9702_00544NCTC9706_02744OGM49_22300P6223_003976QDW62_02225RZR61_12860SAMEA3472112_00700SAMEA3752557_01945WR15_19575

EC: 2.7.7.6
UniProt
Find proteins for P0A7Z4 (Escherichia coli (strain K12))
Explore P0A7Z4
Go to UniProtKB:  P0A7Z4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Z4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

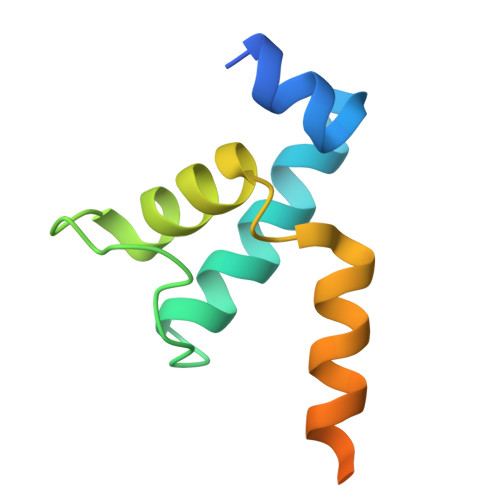

DNA-directed RNA polymerase subunit omega91Escherichia coliMutation(s): 0
Gene Names:
rpoZA5U30_004148ACN81_07055ACU57_08210AW118_10810AWP47_16050B6R15_003237B6R31_002878BANRA_02310BANRA_04690BCB93_002408BE932_17435BER14_16095BG944_002252BGM66_003986BGZ_02214BGZ_04512BJI68_21645BK292_27460BK383_09585BKL28_001536BR158_002512BTB68_002430BTQ06_17920BvCmsKKP061_02010BvCmsSIP010_04544BXT93_06150C0P57_002947C1Q91_001894C2121_003335C2M16_17105C2R31_004094C3F40_17525C9Z68_15355CF22_002039CG704_10080CIG67_24930CQ842_12520CQ842_18710CTR35_001090CV83915_02433D3C88_28115D3G36_09320D4M65_21000D4N09_11435D9D43_20755D9E49_10255D9J61_13945DD762_15130DIV22_25200DNQ45_15780DNX30_23515DS732_26345DTL43_17875DU321_24340E2865_05030E4K51_22275E5H86_15705E6D34_14240EAI46_01840ECs4524EIA08_13140EIMP300_11010EIZ93_18370EN85_002956EPS76_07085EPS97_14185EWK56_19170ExPECSC038_00846F7F11_13860F7N46_06720F9413_20095F9461_04565F9B07_09920FGAF848_22320FIJ20_14920FJQ40_21575FKO60_20865FOI11_017480FOI11_05700FPI65_22445FPS11_15600FVB16_16120FWK02_33875FZU14_11370G3V95_06620G3W53_09695G4A38_07455G4A47_06855G5603_14085GAI89_21090GAJ12_11155GFY48_10985GKF66_06160GNW61_14945GNZ05_16450GOP25_14490GP711_13960GP965_26105GP975_06850GP979_20345GQE86_16840GQM04_17590GQM13_19325GQM21_23705GQN34_13425GQW07_20690GRC73_07290GRO95_19885GRW05_19000GRW24_24035GUC01_19190H0O72_08780HEP30_004255HEP34_000545HHH44_001968HI055_001969HIE29_002327HJQ60_004422HLX92_21100HLZ50_07700HMV95_20745HMW38_12410HV109_00280HV209_24645HVV39_11020HVW04_15785HVW43_16805HVY77_00270I6H00_19090I6H02_13725J0541_001532J5U05_003683JNP96_00560NCTC10082_02470NCTC10089_00122NCTC10429_00579NCTC10764_03466NCTC10767_01139NCTC10974_00114NCTC11112_01617NCTC11126_01727NCTC11181_02381NCTC11341_02352NCTC13148_03955NCTC7922_04533NCTC7927_00174NCTC7928_03021NCTC8009_00942NCTC8179_05509NCTC8333_00095NCTC8500_05773NCTC8621_00157NCTC8622_01081NCTC8959_03642NCTC8960_02710NCTC8985_04508NCTC9001_03765NCTC9045_00155NCTC9073_06404NCTC9075_00220NCTC9077_00123NCTC9081_00466NCTC9702_00091NCTC9706_02361NCTC9962_01055OGM49_24110P6223_003124QDW62_00285RZR61_11660SAMEA3472112_02301SAMEA3752557_01157WR15_15985

EC: 2.7.7.6
UniProt
Find proteins for P0A800 (Escherichia coli (strain K12))
Explore P0A800
Go to UniProtKB:  P0A800
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A800
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

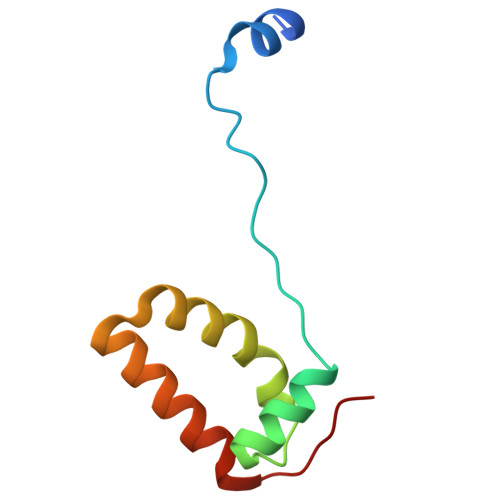

gp79F [auth G]82Escherichia phage phiEco32Mutation(s): 0
Gene Names: phi32_79
UniProt
Find proteins for B0FIP1 (Escherichia phage Phieco32)
Explore B0FIP1
Go to UniProtKB:  B0FIP1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB0FIP1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 5.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
