9M4O | pdb_00009m4o

Crystal structure of human DHODH in complex with Lapachol


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:
    0.171 (Depositor), 0.182 (DCC)
  • R-Value Work:
    0.156 (Depositor), 0.169 (DCC)
  • R-Value Observed:
    0.157 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9M4O

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Antiviral activities of ascofuranone and naphthoquinone derivatives against Ebola virus.

Pemba, C.M.Sakurai, Y.Kurosaki, Y.Patten, J.J.Amalia, E.Inaoka, D.K.Davey, R.A.Shiba, T.Kita, K.Yasuda, J.

(2026) Antiviral Res 249: 106400-106400

  • DOI: https://doi.org/10.1016/j.antiviral.2026.106400
  • Primary Citation Related Structures:
    9M4M, 9M4O

  • PubMed Abstract:

    Ebola virus (EBOV) has emerged as a cause of a severe and life-threatening disease since its discovery. Currently, only two monoclonal antibody drugs have been approved by the US Food and Drug Administration for EBOV infection treatment. In this study, we screened 87 human dihydroorotate dehydrogenase (HsDHODH) inhibitors using the transcription and replication-competent virus-like particle (trVLP) system. Two compounds, 280-12 and 511-12, ascofuranone and naphthoquinone derivatives, respectively, were identified. Both compounds inhibited the Ebola trVLP infection in a dose-dependent manner in vitro and strongly inhibited the EBOV minigenome expression. Their antiviral effects against authentic infectious EBOV were also confirmed, with half-maximal inhibitory concentrations of 0.5 and 0.1 μM, respectively. Structural analysis of 511-12 and lapachol, a naphthoquinone derivative with a short isoprene chain, in complex with HsDHODH revealed that these compounds bind to the N-terminal hydrophobic cavity related to the ubiquinone-binding site. Supplementation of nucleosides and metabolites involved in the biosynthesis of pyrimidine nucleotides supported that the antiviral activities of the identified compounds were mainly based on the intracellular pyrimidine pool depletion, specifically at the level of mitochondrial DHODH. Overall, these results suggest 280-12 and 511-12 as promising lead compound candidates for the development of novel drugs for the treatment of EBOV infection.


  • Organizational Affiliation
    • Department of Emerging Infectious Diseases, National Research Center for the Control and Prevention of Infectious Diseases (CCPID), Nagasaki University, 1-12-4 Sakamoto, Nagasaki 852-8523, Japan. Electronic address: christellepemba@nagasaki-u.ac.jp.

Macromolecule Content

  • Total Structure Weight: 40.85 kDa
  • Atom Count: 3,136
  • Modeled Residue Count: 366
  • Deposited Residue Count: 366
  • Unique protein chains: 1

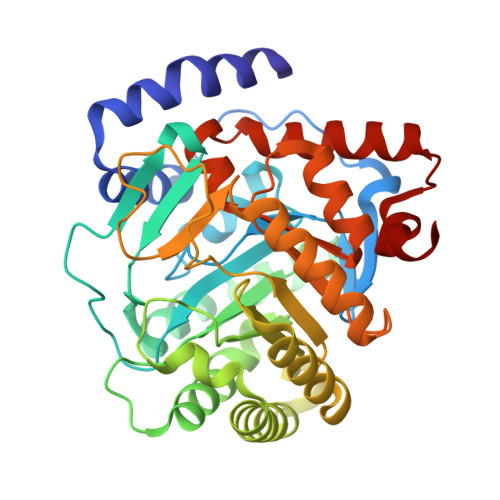

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Dihydroorotate dehydrogenase (quinone), mitochondrial366Homo sapiensMutation(s): 0
Gene Names: DHODH
EC: 1.3.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for Q02127 (Homo sapiens)
Explore Q02127
Go to UniProtKB:  Q02127
PHAROS:  Q02127
GTEx:  ENSG00000102967
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ02127
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FMN

Query on FMN



Download:Ideal Coordinates CCD File
B [auth A]FLAVIN MONONUCLEOTIDE
C17 H21 N4 O9 P
FVTCRASFADXXNN-SCRDCRAPSA-N
A1BIJ

Query on A1BIJ



Download:Ideal Coordinates CCD File
D [auth A]2-hydroxy-3-(3-methylbut-2-en-1-yl)naphthalene-1,4-dione
C15 H14 O3
CIEYTVIYYGTCCI-UHFFFAOYSA-N
ORO
(Subject of Investigation/LOI)

Query on ORO



Download:Ideal Coordinates CCD File
C [auth A]OROTIC ACID
C5 H4 N2 O4
PXQPEWDEAKTCGB-UHFFFAOYSA-N
SO4

Query on SO4



Download:Ideal Coordinates CCD File
E [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
ACT

Query on ACT



Download:Ideal Coordinates CCD File
F [auth A],
G [auth A],
H [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:  0.171 (Depositor), 0.182 (DCC)
  • R-Value Work:  0.156 (Depositor), 0.169 (DCC)
  • R-Value Observed: 0.157 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.364α = 90
b = 90.364β = 90
c = 123.002γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-04
    Type: Initial release
  • Version 1.1: 2026-04-15
    Changes: Database references
  • Version 1.2: 2026-04-29
    Changes: Database references
