9LWY | pdb_00009lwy

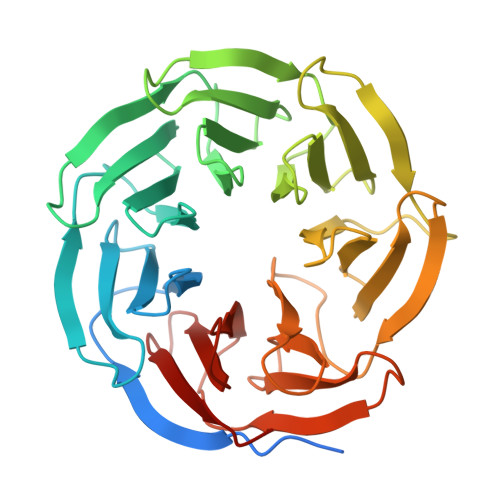

Crystal structure of human WDR5 in complex with compound 4


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:
    0.191 (Depositor), 0.191 (DCC)
  • R-Value Work:
    0.168 (Depositor), 0.169 (DCC)
  • R-Value Observed:
    0.169 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LWY

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

DeepDegradome: A structure-aware deep learning framework for PROTAC and ligand generation against protein targets.

Hu, Q.Cao, Y.Ren, P.Zhang, X.Li, F.Zhang, X.Cai, F.Zhang, R.Zhou, Y.Mei, L.Bai, F.

(2026) Proc Natl Acad Sci U S A 123: e2518248123-e2518248123

  • DOI: https://doi.org/10.1073/pnas.2518248123
  • Primary Citation Related Structures:
    9LWY

  • PubMed Abstract:

    Targeted protein degradation is a promising strategy for drug discovery, but designing effective PROTACs remains challenging, especially for proteins without well-defined binding sites. Current methods rely on modifying linkers between fixed ligands, which limits the diversity and innovation of the overall molecular architecture of PROTAC. Here, we introduce DeepDegradome, an AI-powered method that automates the structure-aware design of both small-molecule ligands and PROTACs. It employs a large fragment library constructed from public databases and applies an in-house docking method (iFitDock) to obtain initial binding fragments. DeepDegradome builds ligands by assembling these fragments based on the shape and physicochemical features of the target protein pocket. It can further construct PROTACs from these generated ligands, eliminating the dependency on predefined warheads or E3 ligands. Compared to other AI models, DeepDegradome produces more valid, drug-like molecules with higher predicted binding affinity. We demonstrate DeepDegradome's effectiveness by designing and validating multiple potency inhibitors and PROTACs for two protein targets: WDR5 and CDK9. One synthesized compound showed excellent agreement between predicted and actual binding conformation confirmed by X-ray crystallography. By combining ligand and PROTAC design in one system, DeepDegradome offers a scalable and reliable tool for discovering new drugs against protein targets.


  • Organizational Affiliation
    • Shanghai Institute for Advanced Immunochemical Studies, ShanghaiTech University, Shanghai 201210, China.

Macromolecule Content

  • Total Structure Weight: 37.18 kDa
  • Atom Count: 2,673
  • Modeled Residue Count: 304
  • Deposited Residue Count: 334
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
WD repeat-containing protein 5334Homo sapiensMutation(s): 0
Gene Names: WDR5BIG3
UniProt & NIH Common Fund Data Resources
Find proteins for P61964 (Homo sapiens)
Explore P61964
Go to UniProtKB:  P61964
PHAROS:  P61964
GTEx:  ENSG00000196363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61964
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1EMB
(Subject of Investigation/LOI)

Query on A1EMB



Download:Ideal Coordinates CCD File
C [auth A]4-[[2-(6-fluoranyl-2-methyl-pyridin-3-yl)-6-(5-methyl-1,3-thiazol-2-yl)pyridin-4-yl]methyl]-1-methyl-imidazol-2-amine
C20 H19 F N6 S
FPUJAZWIWOBLCF-UHFFFAOYSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
B [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:  0.191 (Depositor), 0.191 (DCC)
  • R-Value Work:  0.168 (Depositor), 0.169 (DCC)
  • R-Value Observed: 0.169 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.726α = 90
b = 100.512β = 90
c = 81.789γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-3000data scaling
HKL-3000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China24JS2850200

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-04
    Type: Initial release
  • Version 1.1: 2026-04-22
    Changes: Database references
