9LWN | pdb_00009lwn

Nonamer Msp1 from S.cerevisiae (with a catalytic dead mutation) in complex with an unknown peptide substrate

PDB DOI: https://doi.org/10.2210/pdb9LWN/pdb
EM Map EMD-63451: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Saccharomyces cerevisiae S288C, Escherichia coli BL21(DE3)
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-02-15 Released: 2026-03-04
Deposition Author(s): Chengdong, H., Simin, W., Xuan, C.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.26 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9LWN

This is version 1.0 of the entry. See complete history.

Literature

Nonamer Msp1 from S.cerevisiae (with a catalytic dead mutation) in complex with an unknown peptide substrate

Chengdong, H., Simin, W., Xuan, C.

To be published.

Macromolecule Content

Total Structure Weight: 337.76 kDa
Atom Count: 21,453
Modeled Residue Count: 2,689
Deposited Residue Count: 2,992
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Outer mitochondrial transmembrane helix translocase	A [auth C] B C [auth D] D [auth E] E [auth F] A [auth C], B, C [auth D], D [auth E], E [auth F], F [auth G], G [auth H], H [auth I], I [auth A]	330	Saccharomyces cerevisiae S288C	Mutation(s): 1 Gene Names: MSP1, YTA4, YGR028W EC: 7.4.2
UniProt
Find proteins for P28737 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P28737 Go to UniProtKB: P28737
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P28737
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

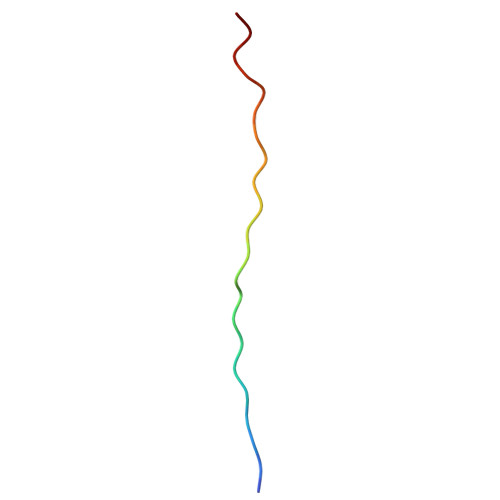

An unknown peptide substrate	J	22	Escherichia coli BL21(DE3)	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain Y [auth I] SDF format, chain W [auth H] SDF format, chain U [auth G] SDF format, chain S [auth F] SDF format, chain Q [auth E] SDF format, chain O [auth D] SDF format, chain M [auth B] SDF format, chain K [auth C] SDF format, chain AA [auth A] MOL2 format, chain Y [auth I] MOL2 format, chain W [auth H] MOL2 format, chain U [auth G] MOL2 format, chain S [auth F] MOL2 format, chain Q [auth E] MOL2 format, chain O [auth D] MOL2 format, chain M [auth B] MOL2 format, chain K [auth C] MOL2 format, chain AA [auth A] mmCIF format, chain Y [auth I] mmCIF format, chain W [auth H] mmCIF format, chain U [auth G] mmCIF format, chain S [auth F] mmCIF format, chain Q [auth E] mmCIF format, chain O [auth D] mmCIF format, chain M [auth B] mmCIF format, chain K [auth C] mmCIF format, chain AA [auth A]	AA [auth A] K [auth C] M [auth B] O [auth D] Q [auth E] AA [auth A], K [auth C], M [auth B], O [auth D], Q [auth E], S [auth F], U [auth G], W [auth H], Y [auth I]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain AA [auth A] Focus chain K [auth C] Focus chain M [auth B] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Focus chain U [auth G] Focus chain W [auth H] Focus chain Y [auth I] Interactions & Density Focus chain AA [auth A] Focus chain K [auth C] Focus chain M [auth B] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Focus chain U [auth G] Focus chain W [auth H] Focus chain Y [auth I]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain Z [auth I] SDF format, chain X [auth H] SDF format, chain V [auth G] SDF format, chain T [auth F] SDF format, chain R [auth E] SDF format, chain P [auth D] SDF format, chain N [auth B] SDF format, chain L [auth C] SDF format, chain BA [auth A] MOL2 format, chain Z [auth I] MOL2 format, chain X [auth H] MOL2 format, chain V [auth G] MOL2 format, chain T [auth F] MOL2 format, chain R [auth E] MOL2 format, chain P [auth D] MOL2 format, chain N [auth B] MOL2 format, chain L [auth C] MOL2 format, chain BA [auth A] mmCIF format, chain Z [auth I] mmCIF format, chain X [auth H] mmCIF format, chain V [auth G] mmCIF format, chain T [auth F] mmCIF format, chain R [auth E] mmCIF format, chain P [auth D] mmCIF format, chain N [auth B] mmCIF format, chain L [auth C] mmCIF format, chain BA [auth A]	BA [auth A] L [auth C] N [auth B] P [auth D] R [auth E] BA [auth A], L [auth C], N [auth B], P [auth D], R [auth E], T [auth F], V [auth G], X [auth H], Z [auth I]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain BA [auth A] Focus chain L [auth C] Focus chain N [auth B] Focus chain P [auth D] Focus chain R [auth E] Focus chain T [auth F] Focus chain V [auth G] Focus chain X [auth H] Focus chain Z [auth I] Interactions & Density Focus chain BA [auth A] Focus chain L [auth C] Focus chain N [auth B] Focus chain P [auth D] Focus chain R [auth E] Focus chain T [auth F] Focus chain V [auth G] Focus chain X [auth H] Focus chain Z [auth I]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.26 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
