9LVP | pdb_00009lvp

Crystal structure of estrogen related receptor-alpha DNA binding domain complexed with MPC1 promoter

PDB DOI: https://doi.org/10.2210/pdb9LVP/pdb
NAKB: 9LVP

Classification: TRANSCRIPTION/DNA
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-02-12 Released: 2026-02-18
Deposition Author(s): Xu, T., Gan, Q., Liu, J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.79 Å
R-Value Free:
0.280 (Depositor), 0.281 (DCC)
R-Value Work:
0.219 (Depositor), 0.224 (DCC)
R-Value Observed:
0.222 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of estrogen related receptor-alpha DNA binding domain complexed with MPC1 promoter

Xu, T., Gan, Q., Liu, J.

To be published.

Macromolecule Content

Total Structure Weight: 72.69 kDa
Atom Count: 4,002
Modeled Residue Count: 413
Deposited Residue Count: 544
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

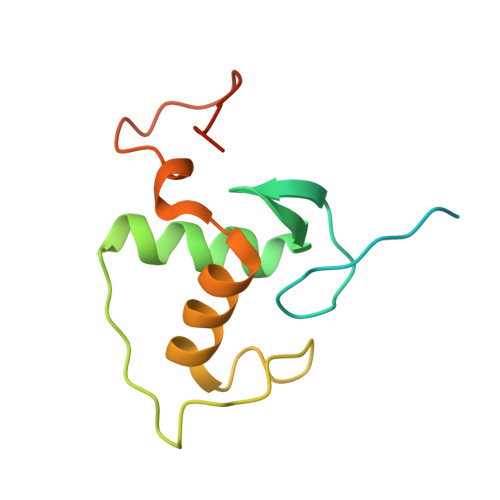

EsRRA	A, B, C, D	122	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P11474 (Homo sapiens) Explore P11474 Go to UniProtKB: P11474
PHAROS: P11474 GTEx: ENSG00000173153
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P11474
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism
Entity ID: 2

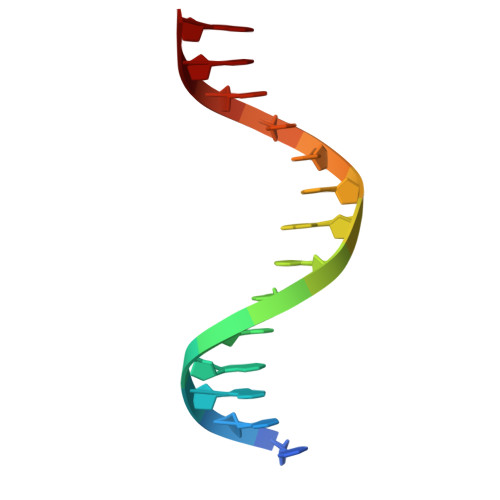

DNA (5'-D(CPCPAPAPGPGPTPGPCPCPCPTPTPG)-3')	E, G	14	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism
Entity ID: 3

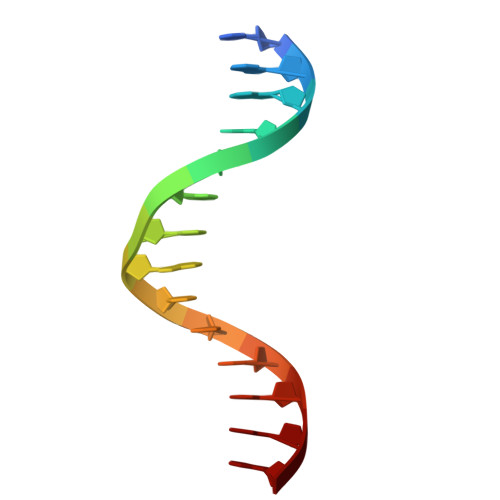

DNA (5'-D(CPCPAPAPGPGPTPGPCPCPCPTPTPG)-3')	F, H	14	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth C] SDF format, chain N [auth C] SDF format, chain O [auth D] SDF format, chain P [auth D] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth C] MOL2 format, chain N [auth C] MOL2 format, chain O [auth D] MOL2 format, chain P [auth D] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth C] mmCIF format, chain N [auth C] mmCIF format, chain O [auth D] mmCIF format, chain P [auth D]	I [auth A] J [auth A] K [auth B] L [auth B] M [auth C] I [auth A], J [auth A], K [auth B], L [auth B], M [auth C], N [auth C], O [auth D], P [auth D]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth C] Focus chain N [auth C] Focus chain O [auth D] Focus chain P [auth D] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth C] Focus chain N [auth C] Focus chain O [auth D] Focus chain P [auth D]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain Q [auth E] SDF format, chain R [auth F] SDF format, chain S [auth G] MOL2 format, chain Q [auth E] MOL2 format, chain R [auth F] MOL2 format, chain S [auth G] mmCIF format, chain Q [auth E] mmCIF format, chain R [auth F] mmCIF format, chain S [auth G]	Q [auth E], R [auth F], S [auth G]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain Q [auth E] Focus chain R [auth F] Focus chain S [auth G] Interactions & Density Focus chain Q [auth E] Focus chain R [auth F] Focus chain S [auth G]
