9LTA | pdb_00009lta

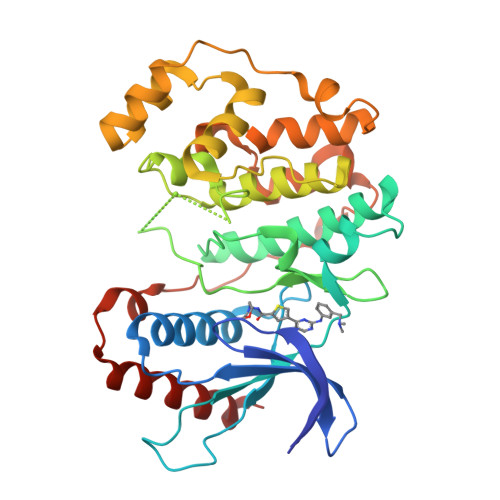

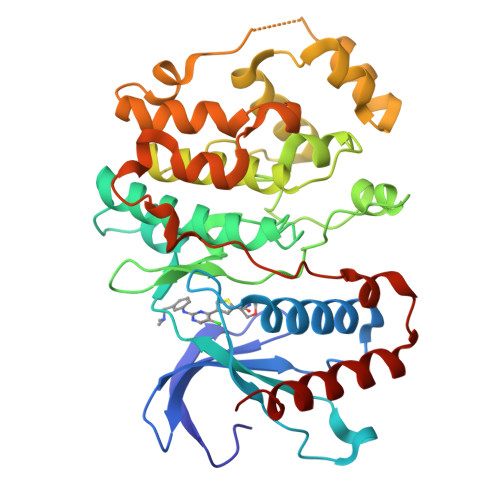

Crystal Structure of Compound SKLB-D18 with MAPK7 (ERK5)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.33 Å
  • R-Value Free:
    0.292 (Depositor), 0.292 (DCC)
  • R-Value Work:
    0.249 (Depositor), 0.249 (DCC)
  • R-Value Observed:
    0.252 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A1EKRClick on this verticalbar to view details

This is version 1.0 of the entry. See complete history


Literature

A first-in-class selective inhibitor of ERK1/2 and ERK5 overcomes drug resistance with a single-molecule strategy.

Xiao, H.Wang, A.Shuai, W.Qian, Y.Wu, C.Wang, X.Yang, P.Sun, Q.Wang, G.Ouyang, L.Sun, Q.

(2025) Signal Transduct Target Ther 10: 70-70

  • DOI: https://doi.org/10.1038/s41392-025-02169-z
  • Primary Citation of Related Structures:
    9LNR, 9LTA

  • PubMed Abstract:

    Despite significant advancements in kinase-targeted therapy, the emergence of acquired drug resistance to targets such as KRAS and MEK remains a challenge. Extracellular-regulated kinase 1/2 (ERK1/2), positioned at the terminus of this pathway, is highly conserved and less susceptible to mutations, thereby garnering attention as a crucial therapeutical target. However, attempts to use monotherapies that target ERK1/2 have achieved only limited clinical success, mainly due to the issues of limited efficacy and the emergence of drug resistance. Herein, we present a proof of concept that extracellular-regulated kinase 5 (ERK5) acts as a compensatory pathway after ERK1/2 inhibition in triple-negative breast cancer (TNBC). By utilizing the principle of polypharmacology, we computationally designed SKLB-D18, a first-in-class molecule that selectively targets ERK1/2 and ERK5, with nanomolar potency and high specificity for both targets. SKLB-D18 demonstrated excellent tolerability in mice and demonstrated superior in vivo anti-tumor efficacy, not only exceeding the existing clinical ERK1/2 inhibitor BVD-523, but also the combination regimen of BVD-523 and the ERK5 inhibitor XMD8-92. Mechanistically, we showed that SKLB-D18, as an autophagy agonist, played a role in mammalian target of rapamycin (mTOR)/70 ribosomal protein S6 kinase (p70S6K) and nuclear receptor coactivator 4 (NCOA4)-mediated ferroptosis, which may mitigate multidrug resistance.


  • Organizational Affiliation

    State Key Laboratory of Biotherapy and Cancer Center, Innovation Center of Nursing Research, Nursing Key Laboratory of Sichuan Province, West China Hospital, and Collaborative Innovation Center of Biotherapy, Sichuan University, Chengdu, 610041, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Mitogen-activated protein kinase 7A [auth B],
B [auth A]
346Homo sapiensMutation(s): 0
Gene Names: MAPK7BMK1ERK5PRKM7
EC: 2.7.11.24
UniProt & NIH Common Fund Data Resources
Find proteins for Q13164 (Homo sapiens)
Explore Q13164
Go to UniProtKB:  Q13164
PHAROS:  Q13164
GTEx:  ENSG00000166484
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13164
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1EKR (Subject of Investigation/LOI)
Query on A1EKR

Download Ideal Coordinates CCD File
C [auth B],
D [auth A]
4-[5-chloranyl-2-[[3-[(dimethylamino)methyl]phenyl]amino]pyrimidin-4-yl]-~{N}-morpholin-4-yl-thiophene-2-carboxamide
C22 H25 Cl N6 O2 S
JXVORTVTLKOYIT-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.33 Å
  • R-Value Free:  0.292 (Depositor), 0.292 (DCC)
  • R-Value Work:  0.249 (Depositor), 0.249 (DCC)
  • R-Value Observed: 0.252 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.643α = 90
b = 156.917β = 90.49
c = 49.727γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A1EKRClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-02
    Type: Initial release
