9LS3 | pdb_00009ls3

S-ECD of SARS-CoV-2 Delta variant in complex with Fab854

PDB DOI: https://doi.org/10.2210/pdb9LS3/pdb
EM Map EMD-63352: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): Severe acute respiratory syndrome coronavirus 2, Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-02-02 Released: 2026-01-07
Deposition Author(s): Li, Y.N., Yan, R.H., Ju, B., Zhang, Z.
Funding Organization(s): Ministry of Science and Technology (MoST, China)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9LS3

This is version 1.0 of the entry. See complete history.

Literature

S-ECD of SARS-CoV-2 Delta variant in complex with Fab854

Li, Y.N., Yan, R.H., Ju, B., Zhang, Z.

To be published.

Macromolecule Content

Total Structure Weight: 576.98 kDa
Atom Count: 30,726
Modeled Residue Count: 3,822
Deposited Residue Count: 5,121
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

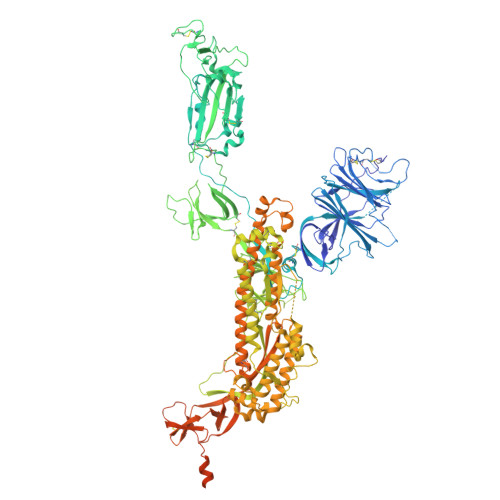

Spike glycoprotein	A, B, C	1,268	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 10 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 11	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Heavy chain of Fab854	D, F, H	219	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

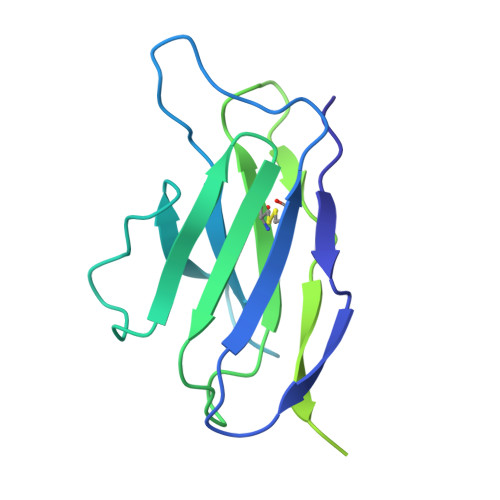

Light chain of Fab854	E, G, I	220	Homo sapiens	Mutation(s): 0

Oligosaccharides

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	AA [auth a], BA [auth b], CA [auth c], DA [auth d], J, AA [auth a], BA [auth b], CA [auth c], DA [auth d], J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z	2		N-Glycosylation	Interactions Focus chain AA [auth a] Focus chain BA [auth b] Focus chain CA [auth c] Focus chain DA [auth d] Focus chain J Focus chain K Focus chain L Focus chain M Focus chain N Focus chain O Focus chain P Focus chain Q Focus chain R Focus chain S Focus chain T Focus chain U Focus chain V Focus chain W Focus chain X Focus chain Y Focus chain Z Interactions & Density Focus chain AA [auth a] Focus chain BA [auth b] Focus chain CA [auth c] Focus chain DA [auth d] Focus chain J Focus chain K Focus chain L Focus chain M Focus chain N Focus chain O Focus chain P Focus chain Q Focus chain R Focus chain S Focus chain T Focus chain U Focus chain V Focus chain W Focus chain X Focus chain Y Focus chain Z
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain PA [auth C] SDF format, chain OA [auth C] SDF format, chain NA [auth C] SDF format, chain MA [auth C] SDF format, chain LA [auth B] SDF format, chain KA [auth B] SDF format, chain JA [auth B] SDF format, chain IA [auth B] SDF format, chain HA [auth A] SDF format, chain GA [auth A] SDF format, chain FA [auth A] SDF format, chain EA [auth A] MOL2 format, chain PA [auth C] MOL2 format, chain OA [auth C] MOL2 format, chain NA [auth C] MOL2 format, chain MA [auth C] MOL2 format, chain LA [auth B] MOL2 format, chain KA [auth B] MOL2 format, chain JA [auth B] MOL2 format, chain IA [auth B] MOL2 format, chain HA [auth A] MOL2 format, chain GA [auth A] MOL2 format, chain FA [auth A] MOL2 format, chain EA [auth A] mmCIF format, chain PA [auth C] mmCIF format, chain OA [auth C] mmCIF format, chain NA [auth C] mmCIF format, chain MA [auth C] mmCIF format, chain LA [auth B] mmCIF format, chain KA [auth B] mmCIF format, chain JA [auth B] mmCIF format, chain IA [auth B] mmCIF format, chain HA [auth A] mmCIF format, chain GA [auth A] mmCIF format, chain FA [auth A] mmCIF format, chain EA [auth A]	EA [auth A] FA [auth A] GA [auth A] HA [auth A] IA [auth B] EA [auth A], FA [auth A], GA [auth A], HA [auth A], IA [auth B], JA [auth B], KA [auth B], LA [auth B], MA [auth C], NA [auth C], OA [auth C], PA [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain EA [auth A] Focus chain FA [auth A] Focus chain GA [auth A] Focus chain HA [auth A] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth C] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C] Interactions & Density Focus chain EA [auth A] Focus chain FA [auth A] Focus chain GA [auth A] Focus chain HA [auth A] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth C] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-07

Deposition Author(s):

Funding Organization	Location	Grant Number
Ministry of Science and Technology (MoST, China)	China	2020YFA0509301

Revision History (Full details and data files)

Version 1.0: 2026-01-07
Type: Initial release
