9LQC | pdb_00009lqc

Crystal structure of NrN D119A in complex with SAH-AMP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.37 Å
  • R-Value Free:
    0.293 (Depositor), 0.291 (DCC)
  • R-Value Work:
    0.255 (Depositor), 0.256 (DCC)
  • R-Value Observed:
    0.257 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LQC

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Molecular basis of SAM-AMP synthesis and degradation in the type III-B CRISPR-Cas system.

Duan, B.Jin, X.An, X.Xiao, Y.Yang, Q.Zhao, H.Huang, Y.Wang, J.Wang, Q.Du, F.Lu, L.Sun, L.Chen, Z.Zhao, B.

(2025) Nat Chem Biol

  • DOI: https://doi.org/10.1038/s41589-025-02075-z
  • Primary Citation Related Structures:
    9LQ5, 9LQ6, 9LQ7, 9LQ8, 9LQ9, 9LQA, 9LQB, 9LQC, 9LQD, 9LQE, 9LQF, 9LQG, 9LQH

  • PubMed Abstract:

    Upon sensing nonself target RNA, the CorA-associated type III-B CRISPR-Cas system catalyzes S-adenosyl methionine (SAM) and ATP to synthesize SAM-AMP, which activates the effector CorA and triggers immune responses. SAM-AMP can be degraded by NrN and SAM lyase, potentially deactivating the system. Here we find that the type III-B effector complex from Bacteroides fragilis uses a specific mechanism to recognize nonself target RNA and synthesize SAM-AMP. The 3' anti-tag of nonself target RNA induces conformational changes in the Cmr2 subunit, triggering SAM-AMP synthesis independently of the stalk loop of Cmr3 subunit. SAM-AMP binding induces NrN to transit from an open to a closed conformation, enabling hydrolysis of the 3'-5' phosphodiester bond. SAM lyase forms a triangular trimer that specifically degrades SAM-AMP into 5'-methylthioadenosine-AMP and homoserine lactone. These findings unveil unique mechanisms for SAM-AMP synthesis and degradation and provide deeper insights into the molecular basis of type III CRISPR-Cas signaling.


  • Organizational Affiliation
    • Key Laboratory of Medical Molecular Virology (MOE/NHC/CAMS), Shanghai Frontiers Science Center of Pathogenic Microorganisms and Infection, Department of Medical Microbiology and Parasitology, School of Basic Medical Sciences, Shanghai Fifth People's Hospital, Shanghai Institute of Infectious Disease and Biosecurity, Institutes of Biomedical Sciences, Shanghai Medical College, Fudan University, Shanghai, China.

Macromolecule Content

  • Total Structure Weight: 122.68 kDa
  • Atom Count: 8,803
  • Modeled Residue Count: 1,004
  • Deposited Residue Count: 1,040
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

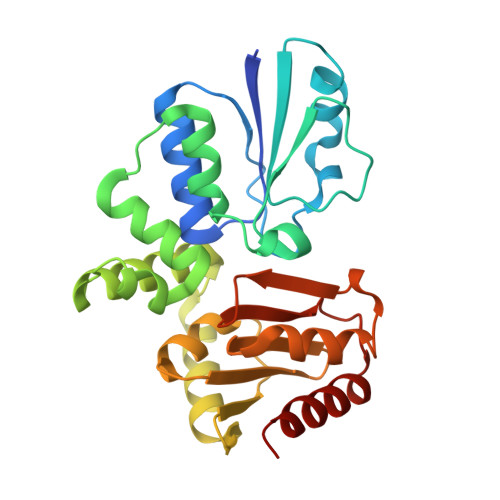

NrN
A, B, C, D
260Bacteroides fragilisMutation(s): 1
Gene Names: CQW34_02202F2Z29_06630F2Z89_11900F3B44_04915FSA03_20595NXX45_16660
UniProt
Find proteins for A0A2M9V7I2 (Bacteroides fragilis)
Explore A0A2M9V7I2
Go to UniProtKB:  A0A2M9V7I2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2M9V7I2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1EL0
(Subject of Investigation/LOI)

Query on A1EL0



Download:Ideal Coordinates CCD File
E [auth A],
F [auth B],
G [auth C],
H [auth D]
(2~{S})-4-[[(2~{S},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3-[[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-4-oxidanyl-oxolan-2-yl]methylsulfanyl]-2-azanyl-butanoic acid
C24 H32 N11 O11 P S
QBCXMARFZQJLMA-XPJWLEQASA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.37 Å
  • R-Value Free:  0.293 (Depositor), 0.291 (DCC)
  • R-Value Work:  0.255 (Depositor), 0.256 (DCC)
  • R-Value Observed: 0.257 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 66.668α = 90
b = 121.609β = 90.31
c = 72.579γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data scaling
xia2data reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-26
    Type: Initial release
  • Version 1.1: 2026-06-10
    Changes: Database references
