9LOZ | pdb_00009loz

Cryo-EM structure of SARS-CoV-2 JN.1 RBD in complex with F61R2-780 Fab

• PDB DOI: https://doi.org/10.2210/pdb9LOZ/pdb
• EM Map EMD-63264: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Severe acute respiratory syndrome coronavirus 2, Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2025-01-23 Released: 2026-01-28
• Deposition Author(s): Wang, X., Li, X.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.55 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure of SARS-CoV-2 JN.1 RBD in complex with F61R2-780 Fab

Wang, X., Li, X.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 47.08 kDa
• Atom Count: 3,262
• Modeled Residue Count: 411
• Deposited Residue Count: 418
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

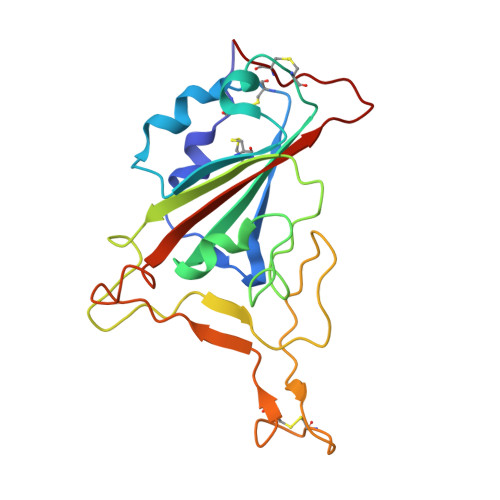

Spike protein S1	A	194	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 18  Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2  Go to UniProtKB:  P0DTC2
Glycosylation
Glycosylation Sites: 2		Go to GlyGen: P0DTC2-1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

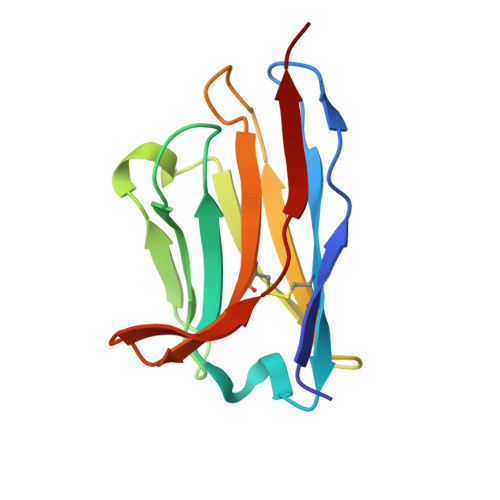

F61R2-780 heavy chain	B	117	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

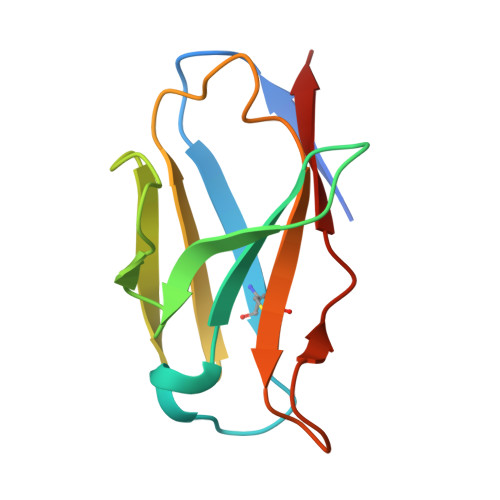

F61R2-780 light chain	C	107	Homo sapiens	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	D [auth A], E [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.55 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-01-28
Deposition Author(s): Wang, X., Li, X.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-01-28
  Type: Initial release
