9LN4 | pdb_00009ln4

Pentamer Msp1 from S.cerevisiae (with a catalytic dead mutation) in complex with an unknown peptide substrate state2

PDB DOI: https://doi.org/10.2210/pdb9LN4/pdb
EM Map EMD-63226: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Saccharomyces cerevisiae S288C
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-01-20 Released: 2026-01-28
Deposition Author(s): Chengdong, H., Simin, W., Xuan, C.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.09 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9LN4

This is version 1.0 of the entry. See complete history.

Literature

Pentamer Msp1 from S.cerevisiae (with a catalytic dead mutation) in complex with an unknown peptide substrate state2

Chengdong, H., Simin, W., Xuan, C.

To be published.

Macromolecule Content

Total Structure Weight: 205.82 kDa
Atom Count: 11,636
Modeled Residue Count: 1,458
Deposited Residue Count: 1,824
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

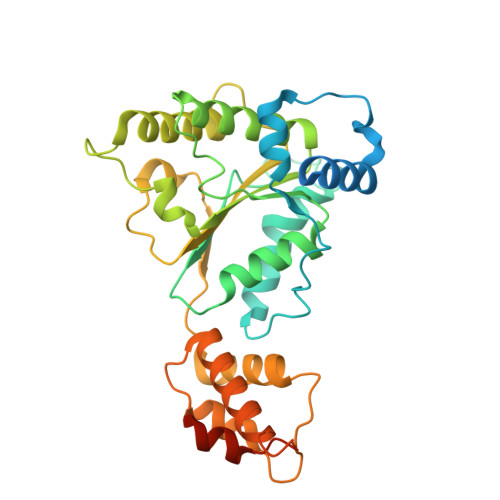

Outer mitochondrial transmembrane helix translocase	A, B, C, D, E	362	Saccharomyces cerevisiae S288C	Mutation(s): 1 Gene Names: MSP1, YTA4, YGR028W EC: 7.4.2
UniProt
Find proteins for P28737 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P28737 Go to UniProtKB: P28737
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P28737
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

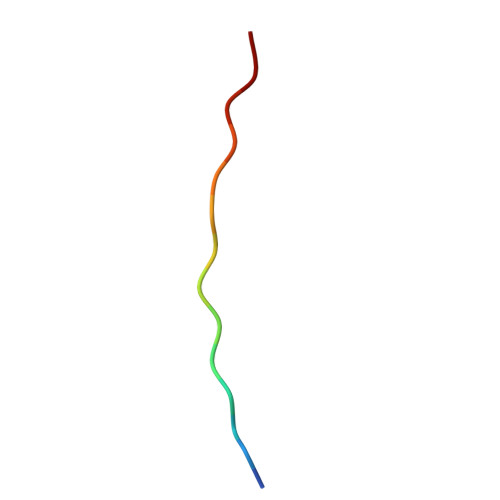

An unknown peptide substrate	F	14	Saccharomyces cerevisiae S288C	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain O [auth E] SDF format, chain N [auth D] SDF format, chain K [auth C] SDF format, chain I [auth B] SDF format, chain G [auth A] MOL2 format, chain O [auth E] MOL2 format, chain N [auth D] MOL2 format, chain K [auth C] MOL2 format, chain I [auth B] MOL2 format, chain G [auth A] mmCIF format, chain O [auth E] mmCIF format, chain N [auth D] mmCIF format, chain K [auth C] mmCIF format, chain I [auth B] mmCIF format, chain G [auth A]	G [auth A], I [auth B], K [auth C], N [auth D], O [auth E]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain G [auth A] Focus chain I [auth B] Focus chain K [auth C] Focus chain N [auth D] Focus chain O [auth E] Interactions & Density Focus chain G [auth A] Focus chain I [auth B] Focus chain K [auth C] Focus chain N [auth D] Focus chain O [auth E]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain P [auth E] SDF format, chain M [auth C] SDF format, chain L [auth C] SDF format, chain J [auth B] SDF format, chain H [auth A] MOL2 format, chain P [auth E] MOL2 format, chain M [auth C] MOL2 format, chain L [auth C] MOL2 format, chain J [auth B] MOL2 format, chain H [auth A] mmCIF format, chain P [auth E] mmCIF format, chain M [auth C] mmCIF format, chain L [auth C] mmCIF format, chain J [auth B] mmCIF format, chain H [auth A]	H [auth A], J [auth B], L [auth C], M [auth C], P [auth E]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain P [auth E] Interactions & Density Focus chain H [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain M [auth C] Focus chain P [auth E]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.09 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19_4092:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-28

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-01-28
Type: Initial release
