9LJI | pdb_00009lji

Human IFI16 PYD filament structure

PDB DOI: https://doi.org/10.2210/pdb9LJI/pdb
EM Map EMD-63154: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-01-15 Released: 2026-01-21
Deposition Author(s): Takahashi, R., Zhang, Z., Ohto, U., Shimizu, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

Validation slider image for 9LJI

This is version 1.0 of the entry. See complete history.

Literature

Human IFI16 PYD filament structure

Takahashi, R.

To be published.

Macromolecule Content

Total Structure Weight: 219.02 kDa
Atom Count: 15,057
Modeled Residue Count: 1,827
Deposited Residue Count: 1,869
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

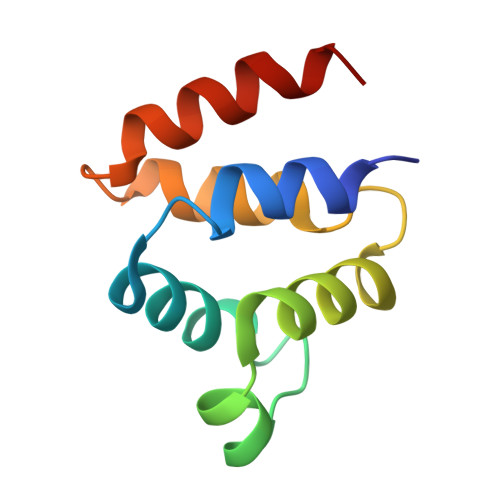

Gamma-interferon-inducible protein 16	A [auth R] B [auth A] C [auth B] D [auth C] E [auth D] A [auth R], B [auth A], C [auth B], D [auth C], E [auth D], F [auth E], G [auth F], H [auth G], I [auth H], J [auth I], K [auth J], L [auth K], M [auth L], N [auth M], O [auth N], P [auth O], Q [auth P], R [auth Q], S, T, U	89	Homo sapiens	Mutation(s): 0 Gene Names: IFI16, IFNGIP1
UniProt & NIH Common Fund Data Resources
Find proteins for Q16666 (Homo sapiens) Explore Q16666 Go to UniProtKB: Q16666
PHAROS: Q16666 GTEx: ENSG00000163565
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q16666
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-21

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-01-21
Type: Initial release
