9LGQ | pdb_00009lgq

The crystal structure of SARS-CoV-2 NSP5 in complex with PTBP1

PDB DOI: https://doi.org/10.2210/pdb9LGQ/pdb

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2, Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-01-10 Released: 2026-01-14
Deposition Author(s): Yan, X., Jin, Z., Wang, Y., Zhang, J.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.82 Å
R-Value Free:
0.218 (Depositor), 0.218 (DCC)
R-Value Work:
0.194 (Depositor), 0.198 (DCC)
R-Value Observed:
0.195 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LGQ

This is version 1.0 of the entry. See complete history.

Literature

The crystal structure of SARS-CoV-2 NSP5 in complex with PTBP1

Yan, X., Jin, Z., Wang, Y., Zhang, J.

To be published.

Macromolecule Content

Total Structure Weight: 34.75 kDa
Atom Count: 2,586
Modeled Residue Count: 316
Deposited Residue Count: 316
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

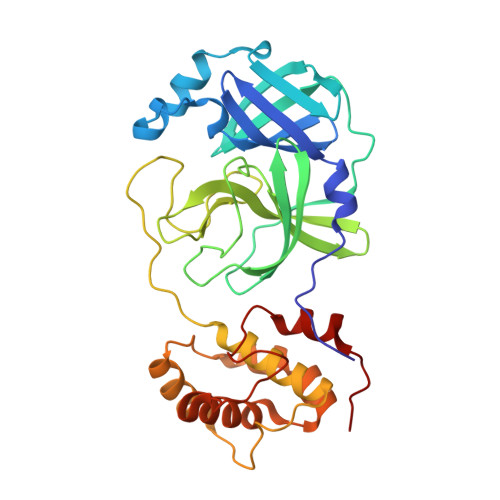

3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

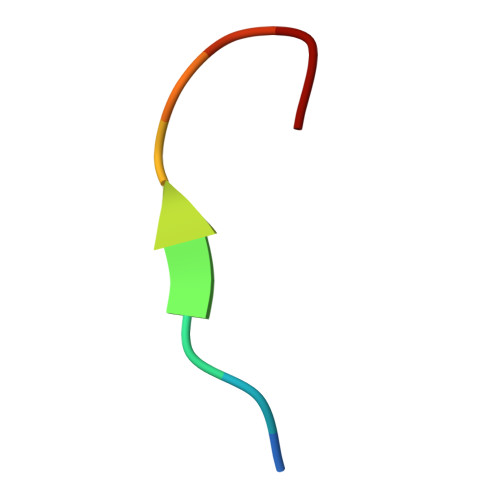

Polypyrimidine tract-binding protein 1	B [auth C]	10	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P26599 (Homo sapiens) Explore P26599 Go to UniProtKB: P26599
PHAROS: P26599 GTEx: ENSG00000011304
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P26599
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.82 Å
R-Value Free: 0.218 (Depositor), 0.218 (DCC)
R-Value Work: 0.194 (Depositor), 0.198 (DCC)
R-Value Observed: 0.195 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 96.154	α = 90
b = 81.651	β = 116.99
c = 54.334	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHENIX	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-14

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-01-14
Type: Initial release
