9KTA | pdb_00009kta

Bacillus subtilis CpfC (HemH) Y13C variant

• PDB DOI: https://doi.org/10.2210/pdb9KTA/pdb

• Classification: BIOSYNTHETIC PROTEIN
• Organism(s): Bacillus subtilis subsp. subtilis str. 168
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2024-12-02 Released: 2025-12-10
• Deposition Author(s): Shishido, M., Fujishiro, T.
• Funding Organization(s): Japan Society for the Promotion of Science (JSPS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.00 Å
• R-Value Free:
  0.190 (Depositor), 0.190 (DCC)
• R-Value Work:
  0.180 (Depositor), 0.180 (DCC)
• R-Value Observed:
  0.180 (Depositor)

Starting Model: experimental

Literature

Engineering of class II chelatase CpfC as an artificial fluorescent metal sensor protein

Shishido, M., Fujishiro, T.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 37.33 kDa
• Atom Count: 3,139
• Modeled Residue Count: 311
• Deposited Residue Count: 326
• Unique protein chains: 1

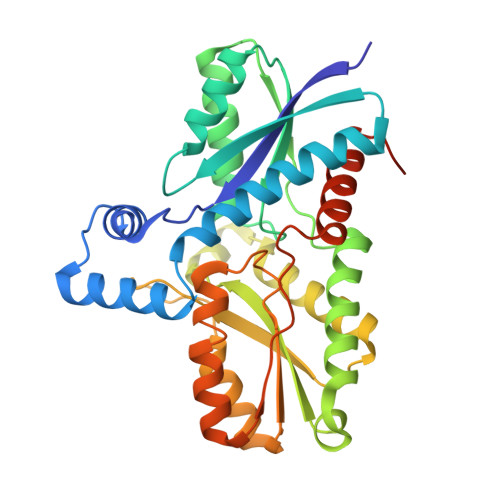

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Coproporphyrin III ferrochelatase	A	326	Bacillus subtilis subsp. subtilis str. 168	Mutation(s): 1  Gene Names: cpfC, hemF, hemH, BSU10130 EC: 4.99.1.9
UniProt
Find proteins for P32396 (Bacillus subtilis (strain 168)) Explore P32396  Go to UniProtKB:  P32396

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CL	G [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M
MG	B [auth A], C [auth A], D [auth A], E [auth A], F [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.00 Å
• R-Value Free:  0.190 (Depositor), 0.190 (DCC)
• R-Value Work:  0.180 (Depositor), 0.180 (DCC)
• R-Value Observed: 0.180 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 48.62	α = 90
b = 49.82	β = 90
c = 118.43	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XSCALE	data scaling
XDS	data reduction
MOLREP	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-10
Deposition Author(s): Shishido, M., Fujishiro, T.

---

Funding Organization	Location	Grant Number
Japan Society for the Promotion of Science (JSPS)	Japan	19H04639
Japan Society for the Promotion of Science (JSPS)	Japan	23H04542

Revision History

• Version 1.0: 2025-12-10
  Type: Initial release
