9KRA | pdb_00009kra

The RBD of HKU5 complex with Pipistrellus abramus ACE2

PDB DOI: https://doi.org/10.2210/pdb9KRA/pdb
EM Map EMD-62524: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Pipistrellus bat coronavirus HKU5, Pipistrellus abramus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-11-27 Released: 2025-11-05
Deposition Author(s): Zhang, Y.Y., Xia, L.Y., Zhou, Q.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9KRA

This is version 1.0 of the entry. See complete history.

Literature

Molecular Insights into Species-Specific ACE2 Recognition of Coronavirus HKU5

Zhang, Y.Y., Xia, L.Y., Zhou, Q.

To be published.

Macromolecule Content

Total Structure Weight: 118.11 kDa
Atom Count: 6,607
Modeled Residue Count: 789
Deposited Residue Count: 1,002
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

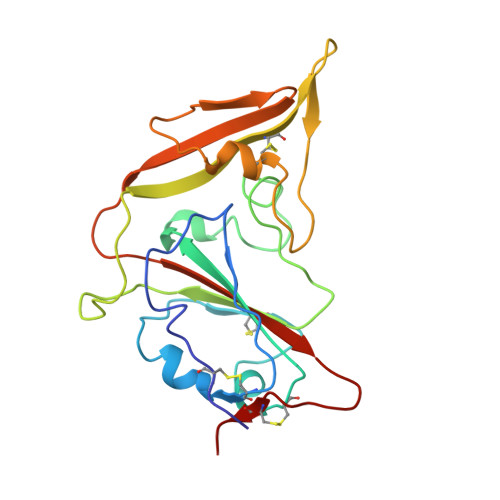

Spike protein S1	A	199	Pipistrellus bat coronavirus HKU5	Mutation(s): 0 Gene Names: S, 2
UniProt
Find proteins for A3EXD0 (Bat coronavirus HKU5) Explore A3EXD0 Go to UniProtKB: A3EXD0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A3EXD0
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain A
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

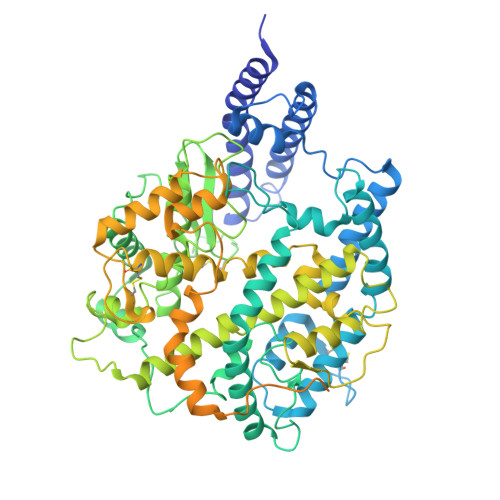

Angiotensin-converting enzyme	B	803	Pipistrellus abramus	Mutation(s): 0 EC: 3.4
UniProt
Find proteins for C7ECT9 (Pipistrellus abramus) Explore C7ECT9 Go to UniProtKB: C7ECT9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C7ECT9
Glycosylation
Glycosylation Sites: 7	Glycosylation Focus chain B
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C, D, E, F, G C, D, E, F, G, H	2		N-Glycosylation	Interactions Focus chain C Focus chain D Focus chain E Focus chain F Focus chain G Focus chain H Interactions & Density Focus chain C Focus chain D Focus chain E Focus chain F Focus chain G Focus chain H
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain I [auth A] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain I [auth A] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	I [auth A], J [auth B], K [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	RELION	4.6.0

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-05

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	82241081

Revision History (Full details and data files)

Version 1.0: 2025-11-05
Type: Initial release
