9K9B | pdb_00009k9b

Apo form of Solanum tuberosum solanesyl diphosphate synthase

PDB DOI: https://doi.org/10.2210/pdb9K9B/pdb

Classification: TRANSFERASE
Organism(s): Solanum tuberosum
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-10-26 Released: 2026-04-29
Deposition Author(s): Xiao, H., Li, M., Yang, G.-F.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.19 Å
R-Value Free:
0.239 (Depositor), 0.240 (DCC)
R-Value Work:
0.201 (Depositor), 0.203 (DCC)
R-Value Observed:
0.203 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9K9B

This is version 1.0 of the entry. See complete history.

Literature

Apo form of Solanum tuberosum solanesyl diphosphate synthase

Xiao, H., Li, M., Yang, G.-F.

To be published.

Macromolecule Content

Total Structure Weight: 213.92 kDa
Atom Count: 14,201
Modeled Residue Count: 1,783
Deposited Residue Count: 1,950
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

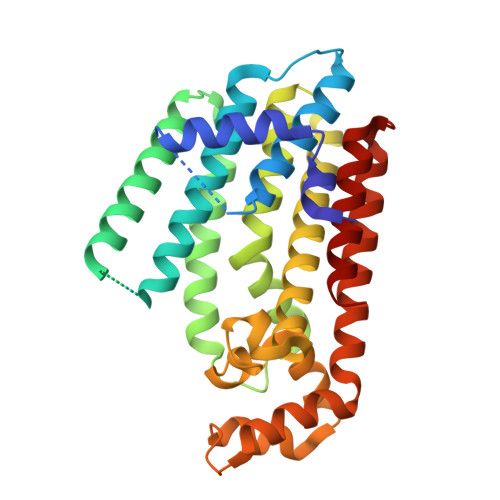

Solanesyl diphosphate synthase	A, B, C, D, E A, B, C, D, E, F	325	Solanum tuberosum	Mutation(s): 0 Gene Names: 102593674
UniProt
Find proteins for M1AAA6 (Solanum tuberosum) Explore M1AAA6 Go to UniProtKB: M1AAA6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	M1AAA6
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.19 Å
R-Value Free: 0.239 (Depositor), 0.240 (DCC)
R-Value Work: 0.201 (Depositor), 0.203 (DCC)
R-Value Observed: 0.203 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 150.694	α = 90
b = 134.593	β = 98.69
c = 101.045	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-04-29
Type: Initial release
