9JVX | pdb_00009jvx

Overall structure of human EAAT2 bound with activator (GT949)

PDB DOI: https://doi.org/10.2210/pdb9JVX/pdb
EM Map EMD-61846: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-10-09 Released: 2025-04-09
Deposition Author(s): Xia, L.Y., Zhang, Y.Y., Shi, Y., Huang, J., Zhou, Q.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.97 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9JVX

This is version 1.0 of the entry. See complete history.

Literature

Structural study of human glutamate transporter EAAT2

Xia, L.Y., Zhang, Y.Y., Shi, Y., Huang, J., Zhou, Q.

(2025) Dian Zi Xian Wei Xue Bao

Macromolecule Content

Total Structure Weight: 191.35 kDa
Atom Count: 9,666
Modeled Residue Count: 1,245
Deposited Residue Count: 1,722
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

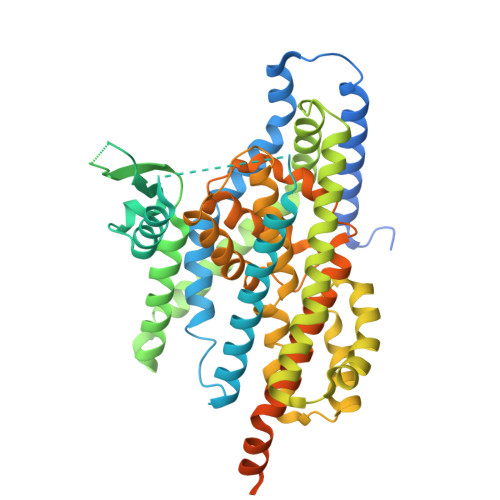

Excitatory amino acid transporter 2	A, B, C	574	Homo sapiens	Mutation(s): 0 Gene Names: SLC1A2, EAAT2, GLT1
UniProt & NIH Common Fund Data Resources
Find proteins for P43004 (Homo sapiens) Explore P43004 Go to UniProtKB: P43004
PHAROS: P43004 GTEx: ENSG00000110436
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P43004
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
3PH (Subject of Investigation/LOI) Query on 3PH Download:Ideal Coordinates CCD File SDF format, chain K [auth C] SDF format, chain H [auth B] SDF format, chain E [auth A] MOL2 format, chain K [auth C] MOL2 format, chain H [auth B] MOL2 format, chain E [auth A] mmCIF format, chain K [auth C] mmCIF format, chain H [auth B] mmCIF format, chain E [auth A]	E [auth A], H [auth B], K [auth C]	1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE C₃₉ H₇₇ O₈ P YFWHNAWEOZTIPI-DIPNUNPCSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Focus chain K [auth C] Interactions & Density Focus chain E [auth A] Focus chain H [auth B] Focus chain K [auth C]
A1EDJ Query on A1EDJ Download:Ideal Coordinates CCD File SDF format, chain L [auth C] SDF format, chain I [auth B] SDF format, chain F [auth A] MOL2 format, chain L [auth C] MOL2 format, chain I [auth B] MOL2 format, chain F [auth A] mmCIF format, chain L [auth C] mmCIF format, chain I [auth B] mmCIF format, chain F [auth A]	F [auth A], I [auth B], L [auth C]	3-[(~{R})-(4-cyclohexylpiperazin-1-yl)-[1-(2-phenylethyl)-1,2,3,4-tetrazol-5-yl]methyl]-6-methoxy-1~{H}-quinolin-2-one C₃₀ H₃₇ N₇ O₂ ZVWPOIUAPXDLMB-MUUNZHRXSA-N		Interactions Focus chain F [auth A] Focus chain I [auth B] Focus chain L [auth C] Interactions & Density Focus chain F [auth A] Focus chain I [auth B] Focus chain L [auth C]
CLR (Subject of Investigation/LOI) Query on CLR Download:Ideal Coordinates CCD File SDF format, chain J [auth C] SDF format, chain G [auth B] SDF format, chain D [auth A] MOL2 format, chain J [auth C] MOL2 format, chain G [auth B] MOL2 format, chain D [auth A] mmCIF format, chain J [auth C] mmCIF format, chain G [auth B] mmCIF format, chain D [auth A]	D [auth A], G [auth B], J [auth C]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain D [auth A] Focus chain G [auth B] Focus chain J [auth C] Interactions & Density Focus chain D [auth A] Focus chain G [auth B] Focus chain J [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.97 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	RELION	3.0.6

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-04-09

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	31971123

Revision History (Full details and data files)

Version 1.0: 2025-04-09
Type: Initial release
