9JKY | pdb_00009jky

acifran-HCAR2-Gi complex

• PDB DOI: https://doi.org/10.2210/pdb9JKY/pdb
• EM Map EMD-61574: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens
• Expression System: Spodoptera frugiperda
• Mutation(s): No


• Deposited: 2024-09-17 Released: 2025-10-29
• Deposition Author(s): Binghao, Z., Fang, Y.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental

Literature

acifran-HCAR2-Gi complex

Binghao, Z., Fang, Y.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 144.25 kDa
• Atom Count: 8,872
• Modeled Residue Count: 1,136
• Deposited Residue Count: 1,285
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

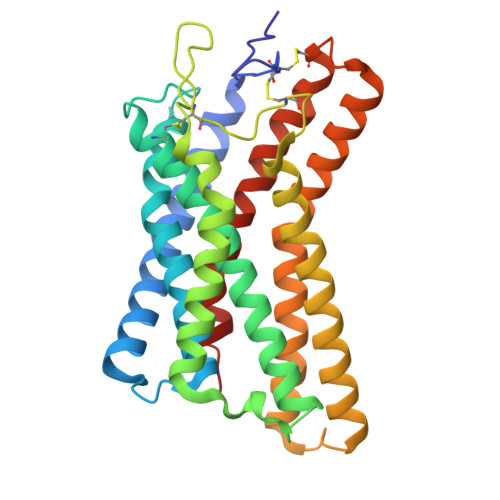

Hydroxycarboxylic acid receptor 2	A	294	Homo sapiens	Mutation(s): 0  Gene Names: HCAR2, GPR109A, HCA2, HM74A, NIACR1
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TDS4 (Homo sapiens) Explore Q8TDS4  Go to UniProtKB:  Q8TDS4
PHAROS:  Q8TDS4 GTEx:  ENSG00000182782

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

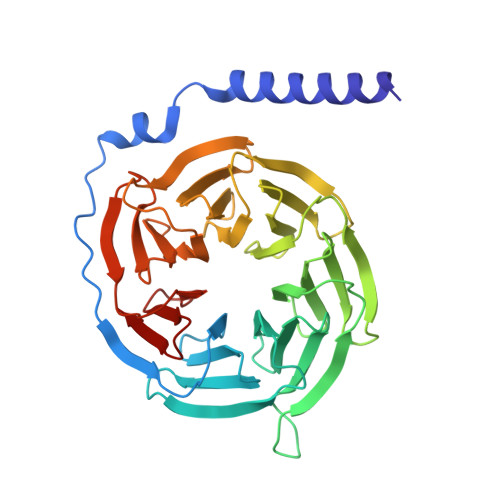

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	B	337	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

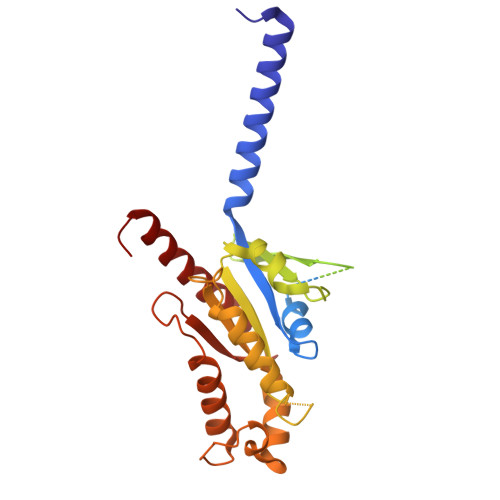

Guanine nucleotide-binding protein G(i) subunit alpha-1	C	351	Homo sapiens	Mutation(s): 0  Gene Names: GNAI1 EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63096 (Homo sapiens) Explore P63096  Go to UniProtKB:  P63096
PHAROS:  P63096 GTEx:  ENSG00000127955

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	D [auth G]	56	Homo sapiens	Mutation(s): 0  Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
ScFv16	E [auth S]	247	Homo sapiens	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
P9X (Subject of Investigation/LOI)	F [auth A]	(5~{S})-5-methyl-4-oxidanylidene-5-phenyl-furan-2-carboxylic acid C12 H10 O4 DFDGRKNOFOJBAJ-LBPRGKRZSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	Coot	0.9.8.1

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-29
Deposition Author(s): Binghao, Z., Fang, Y.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-10-29
  Type: Initial release
